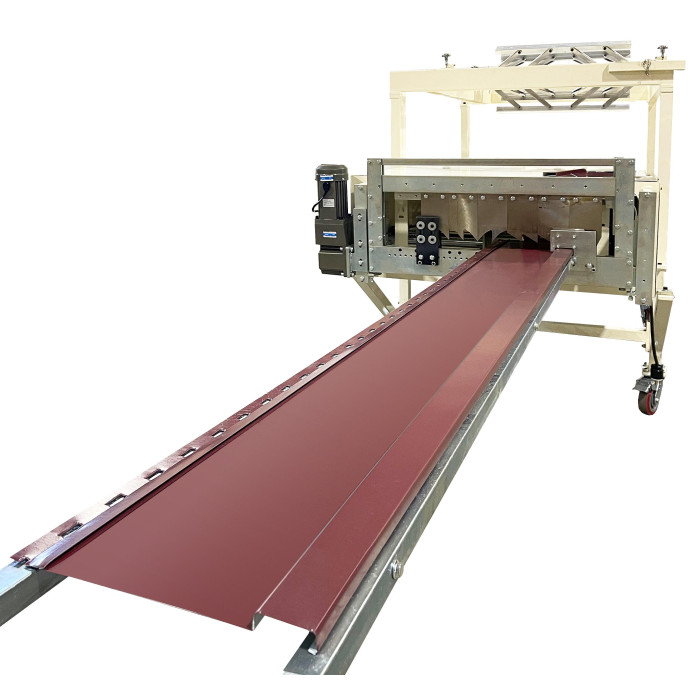

Board and Batten Roll Former | Portable Seamless Metal Siding Machine – SS4E-PRO

The SS4E-PRO Portable Board and Batten Metal Siding Roll Former is a versatile mobile roll former designed specifically for manufacturing architectural Board & Batten metal siding panels directly on the job site or in a production facility. Engineered for contractors, roll formers, and metal building manufacturers, the SS4E-PRO delivers the flexibility, efficiency, and quality required for today's growing architectural metal siding market.

As demand for Board & Batten metal siding continues to expand across residential, post-frame, barndominium, and light commercial construction, the SS4E-PRO provides an effective solution for producing premium siding panels with the appearance of traditional wood construction and the durability of modern metal systems.

Portable Production for Maximum Flexibility

The SS4E-PRO Portable Seamless Metal Siding Machine features a compact, trailer-ready design that allows contractors and manufacturers to produce panels directly at the construction site or in a workshop environment. On-site production reduces transportation costs, minimizes material handling, and allows panels to be manufactured to exact project specifications.

Whether installed in a production facility or mounted on a mobile trailer, the SS4E-PRO offers exceptional flexibility for businesses seeking to improve efficiency and increase profitability.

Designed for Architectural Board & Batten Siding

The machine produces modern Board & Batten siding profiles widely used in:

• Residential homes
• Barndominiums
• Post-frame buildings
• Agricultural structures
• Commercial buildings
• Architectural facades
• Accent walls and decorative cladding

Board & Batten siding has become one of the fastest-growing architectural metal cladding systems due to its clean vertical appearance, concealed-fastener aesthetics, and low maintenance requirements.

High-Quality Panel Production

The SS4E-PRO utilizes precision-engineered forming rollers to produce consistent, high-quality panels with excellent dimensional accuracy and surface finish. Optional bead and striation patterns can be incorporated to enhance panel appearance and improve rigidity.

The machine supports a wide range of architectural finishes, including:

• Painted steel
• Textured steel
• Embossed finishes
• Wood-grain printed steel
• Aluminum panels
• Copper materials

Technical Specifications

Standard Equipment

• Wireless remote control system
• Manual exit shear
• Corded limit switch for panel length control
• 1.5 HP AC electric motor (110/220V single phase)
• Two sets of bead rollers
• Clip relief rollers
• Six urethane drive rollers
• Chrome-plated free-floating forming rollers

Material Capacity

• Aluminum: 0.019"–0.032"
• Galvanized steel: 29–24 gauge
• Copper: 16–20 oz.

Performance

• Panel width range: 10"– 18" (depending on profile configuration)
• Material width: 13" 3/4 – 20"
• Production speed: 25 – 70 FPM (max speed for hydraulic and VFD drive options)
• Generator compatible (5 kW, 33 Amp and above)

Increase Productivity and Profitability

Producing Board & Batten siding on demand allows contractors and manufacturers to:

• Reduce outsourcing costs
• Eliminate shipping delays
• Minimize material waste
• Shorten project timelines
• Improve profit margins
• Expand into higher-value architectural markets

The growing popularity of Board & Batten metal siding creates new opportunities for manufacturers seeking to diversify beyond traditional roofing and wall panel systems.

Create Realistic Wood-Grain Board & Batten Panels

For manufacturers looking to expand into premium architectural siding markets, the SS4E-PRO Portable Board & Batten Siding Panel Roll Former can be paired with our Wood Grain Embossing Machine to produce highly realistic wood-textured metal panels.

The embossing system creates raised or recessed wood-grain patterns that replicate the appearance of traditional wood siding while maintaining the durability and low-maintenance benefits of metal. Custom embossing patterns are available to match specific architectural styles and customer requirements.

This combination allows contractors and manufacturers to offer premium Board & Batten siding panels with authentic wood-grain textures for residential, barndominium, post-frame, and architectural applications.

Combining the SS4E-PRO with our Wood Grain Embossing Machine provides manufacturers with a complete solution for producing decorative architectural metal siding with premium wood-grain finishes and increased market value.

Additional options

RRS

Reverse Roller Entrance Set

DORR

Dual Overhead Reel Rack

EXA

Aluminum Expandable Arbor Reel

WHS

Warehouse stand with casters

AES/PLC

Automatic electric activated shear with PLC controller for length and batch control

SRS

Extra striation Bead roller set

SSCVR

Heavy duty 18 oz tarpaulin cover

T10

10.000 lbs capacity trailer dual axle, electric brakes

4HP220

4Hp 220v Motor + VFD

ROT

10’ Run out table
