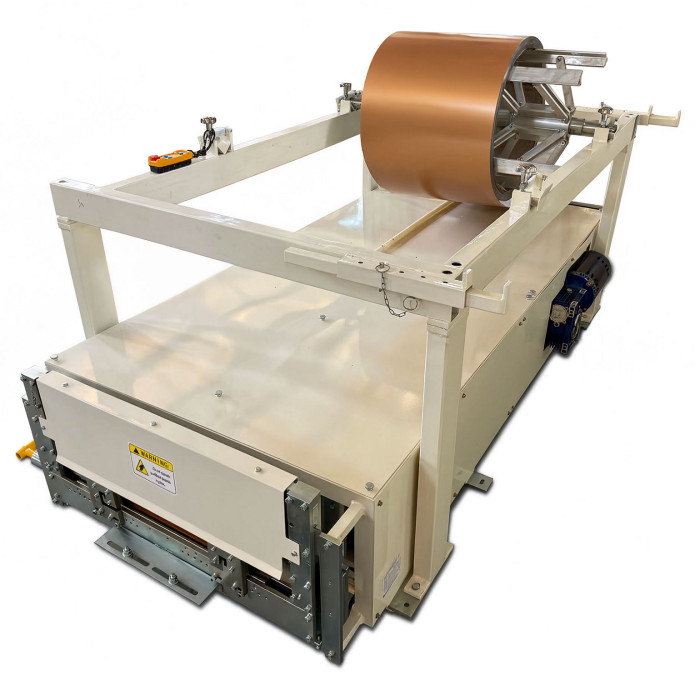

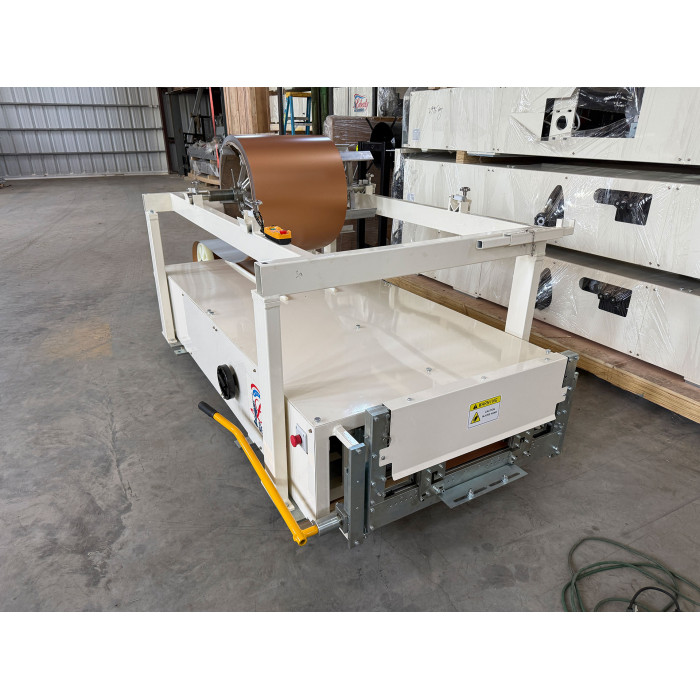

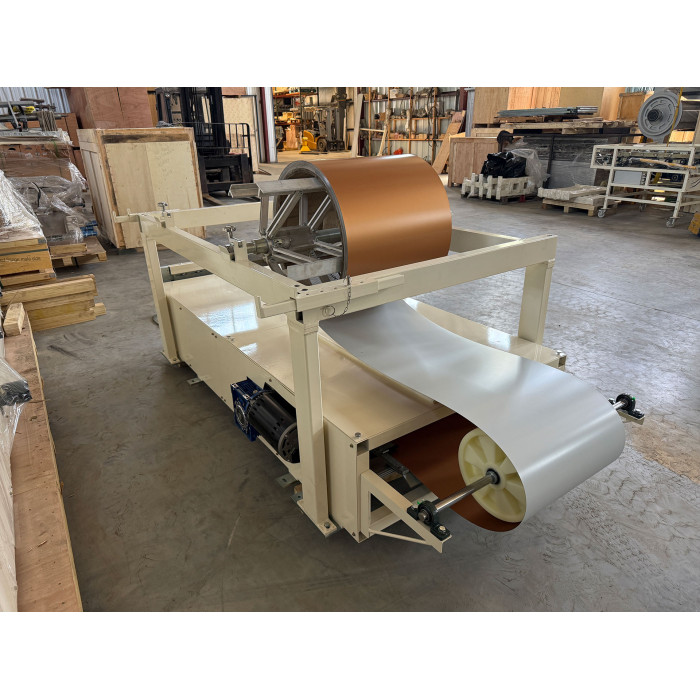

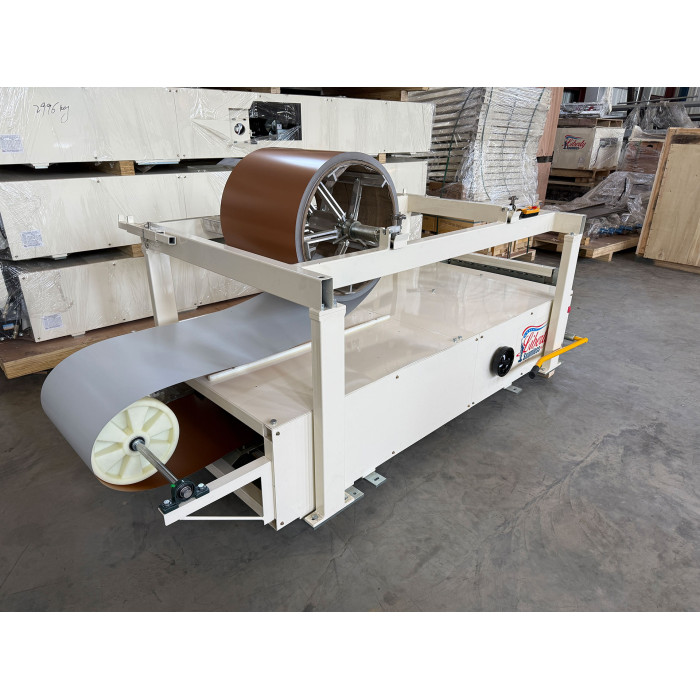

The SS4E-150 Roofer is a professional portable roll forming machine designed for on-site production of standing seam metal roof panels. It enables contractors to produce high-quality roofing panels directly from coil stock at the job site or in the workshop, reducing transportation costs and improving installation efficiency.
The machine forms 1" (SS100) and 1.5" (SS150) mechanical double lock standing seam profiles, widely used in residential, commercial, and industrial roofing systems.
Key Advantages
- On-site production of standing seam roof panels
- Compatible with 1" and 1.5" double lock mechanical roof panel systems

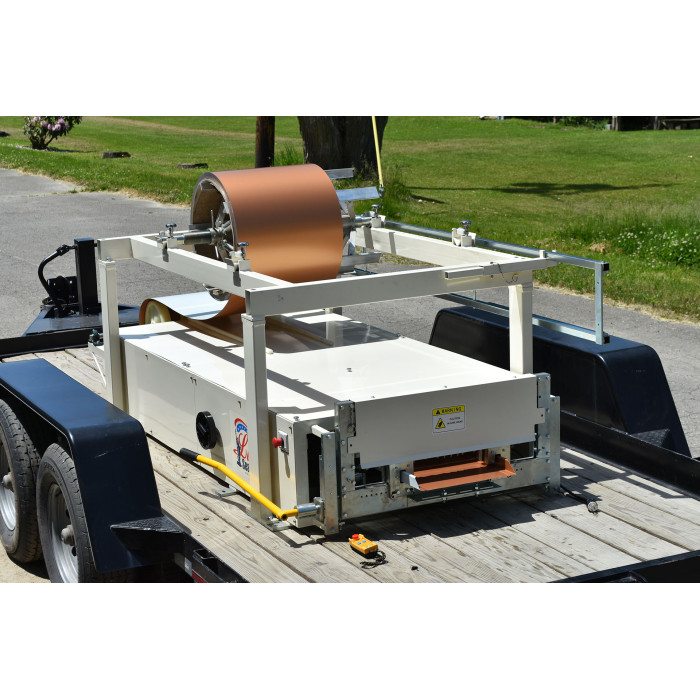

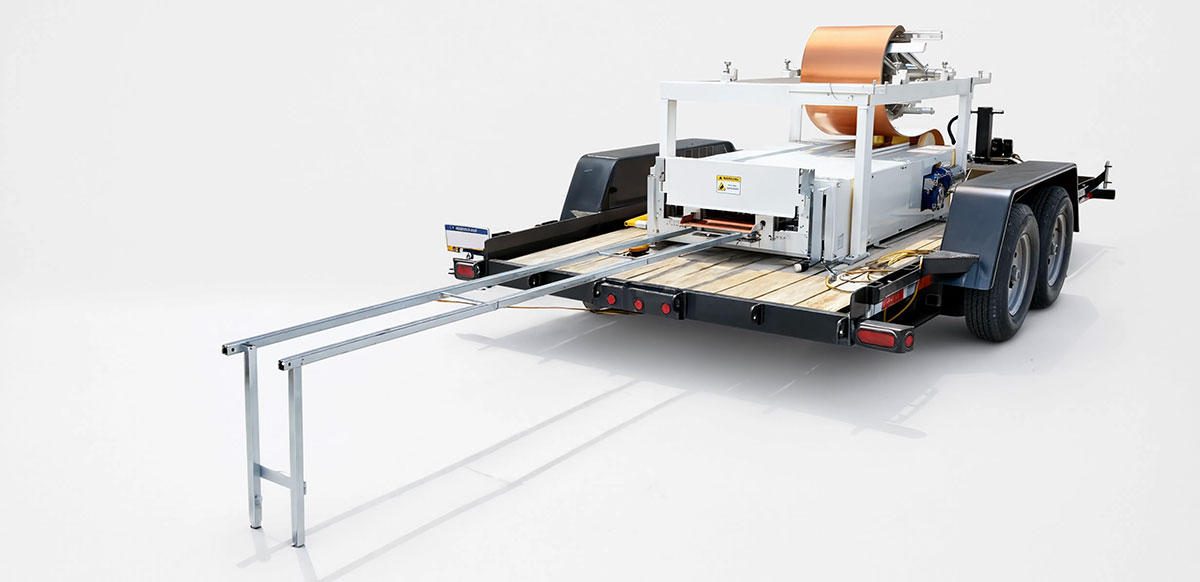

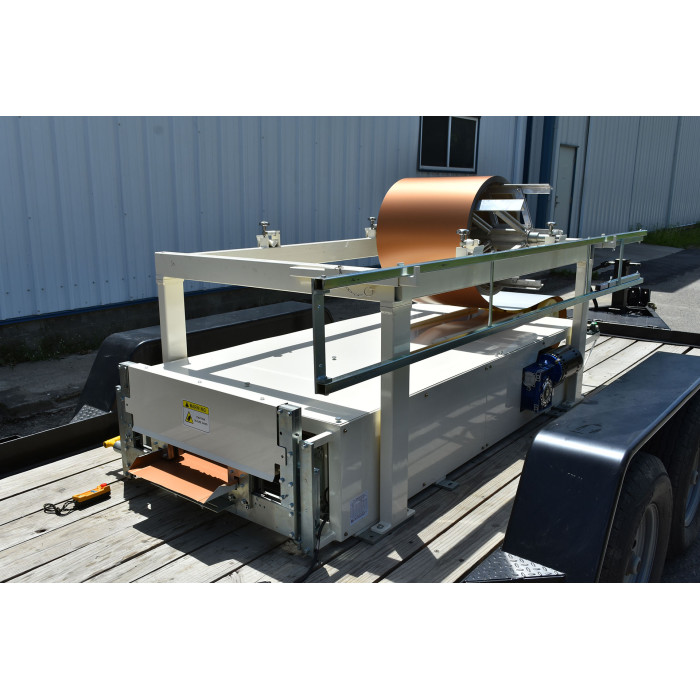

- Portable trailer-ready design
- Production speed up to 35 ft/min
- Works with PPGI, GI, steel, aluminum 0.024-0.040, and copper coils
- Wireless remote control operation
- Precision roll forming system for consistent quality
Technical Specifications
- Production speed: up to 35 ft/min
- Motor: 1.5 HP electric AC 110v / 220v single phase
- Weight: approx. 650 kg (1,600 lbs)
- Dimensions: 63" x 43" x 20"
- Coil width range: 15"–28"
Materials
- Steel: PPGI, GI 24-26 Gauge, grade 50-60.
- Aluminum: 0.024 - 0.040
- Copper: 16-10 oz, 3/4 hard.
Standard Configuration
- Urethane center drive rollers
- Hard chrome tool steel forming rollers
- Wireless remote control
- Manual exit shear
- Length measuring system with limit switch
- Adjustable width control
- Clip relief roller set
- Double bead / striation roller set
- 1.5 HP electric single phase 110 / 220v AC motor
- Steel tube welded frame construction with powder coat.
OPTIONS

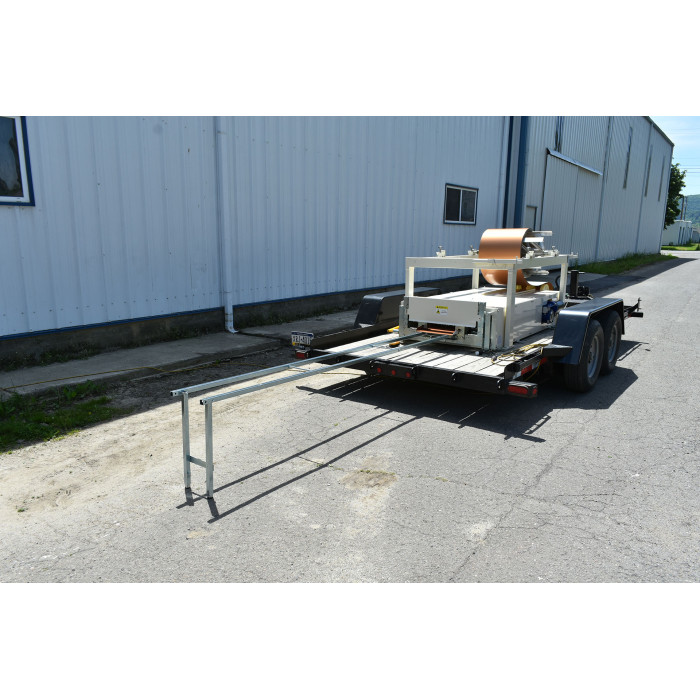

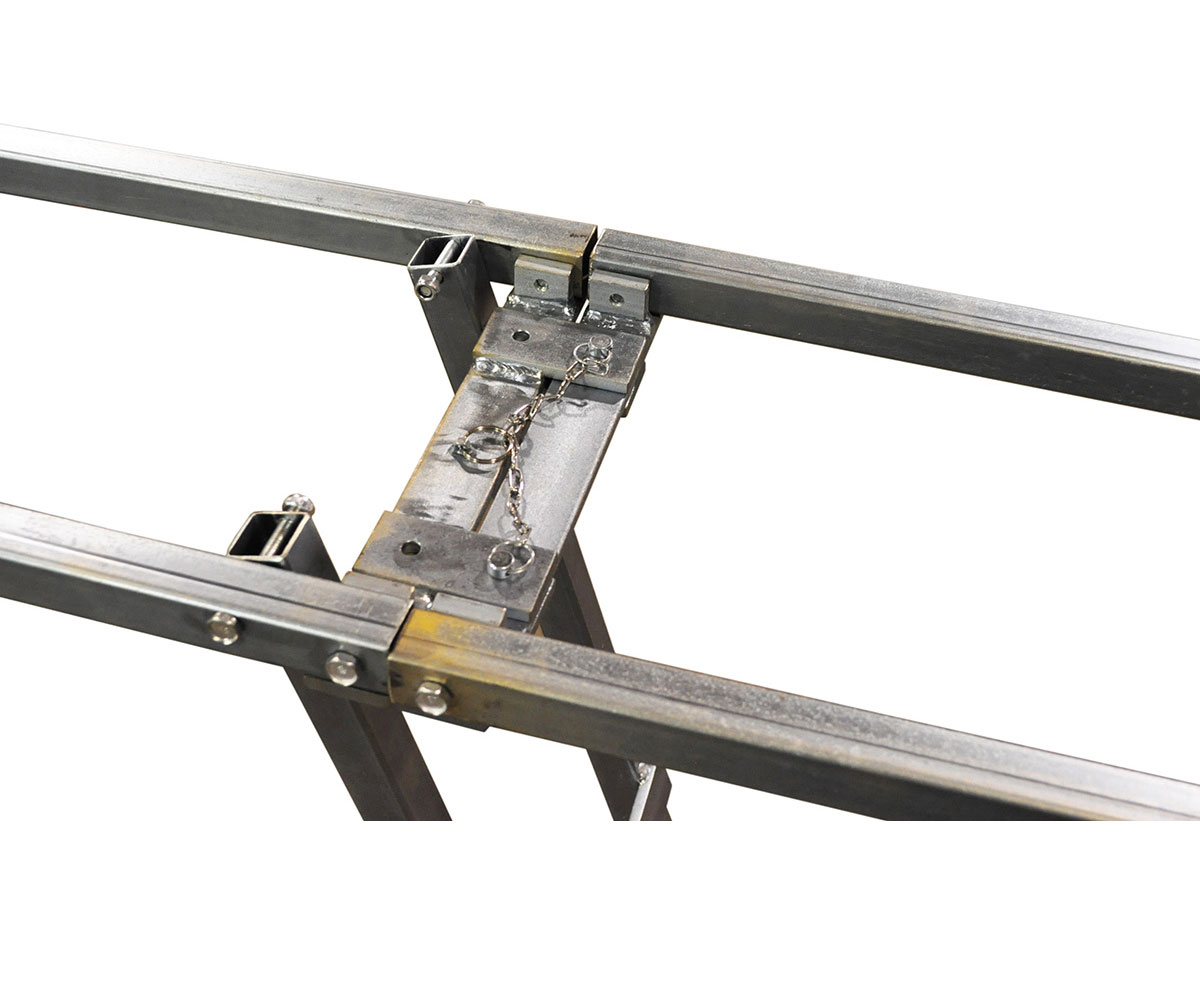

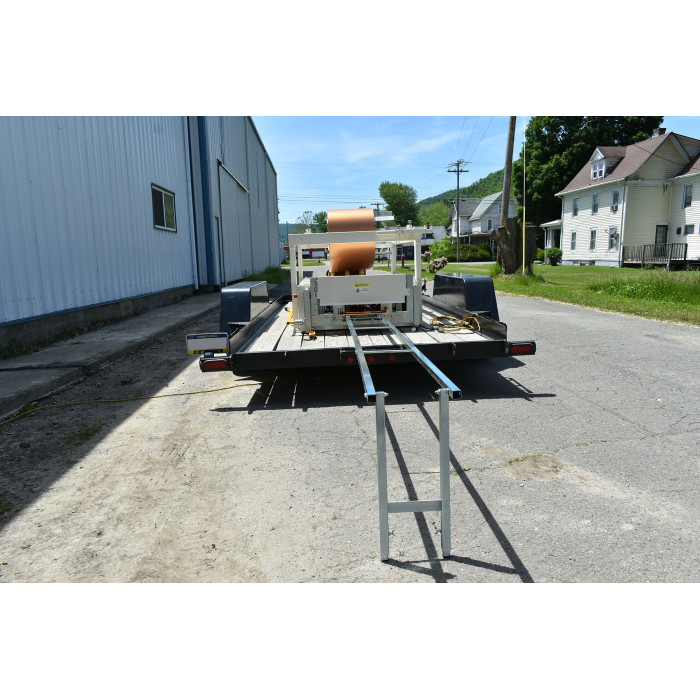

ROS-10 Run Out Table
Supports panels during exit and ensures safe handling with adjustable height system.

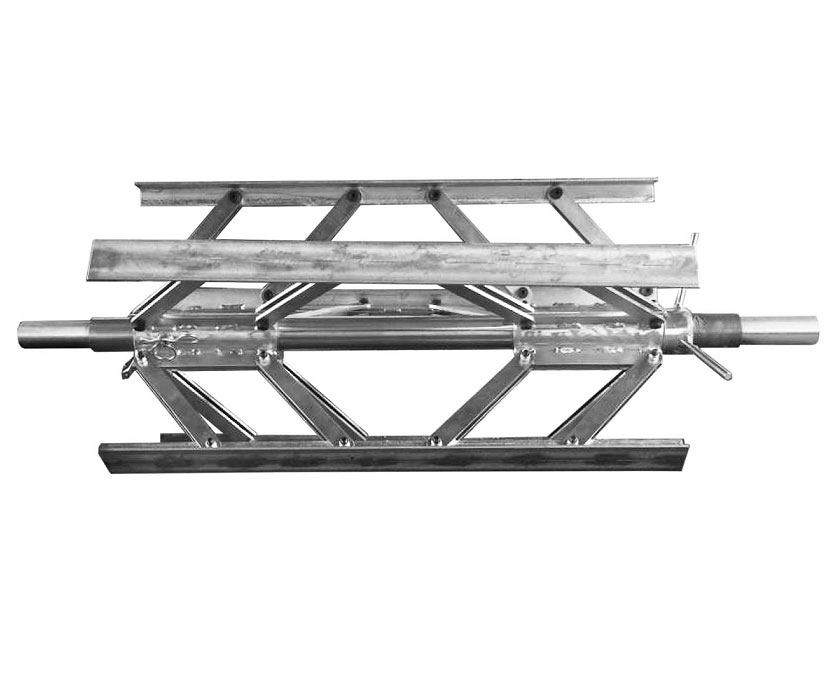

EXA Expandable Arbor
Fast coil loading system compatible with 16"–20" ID coils up to 3000 lbs capacity.
FSDC Decoiler Stand
Stable remote coil support for continuous and smooth material feeding.

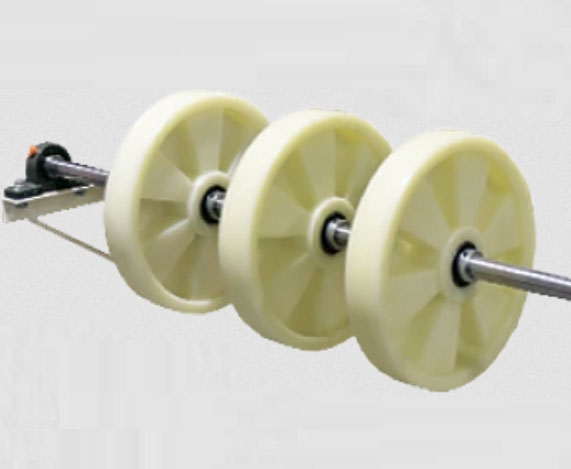

RER Reverse Rollers
Entrance roller system for reversed coil feeding configuration.

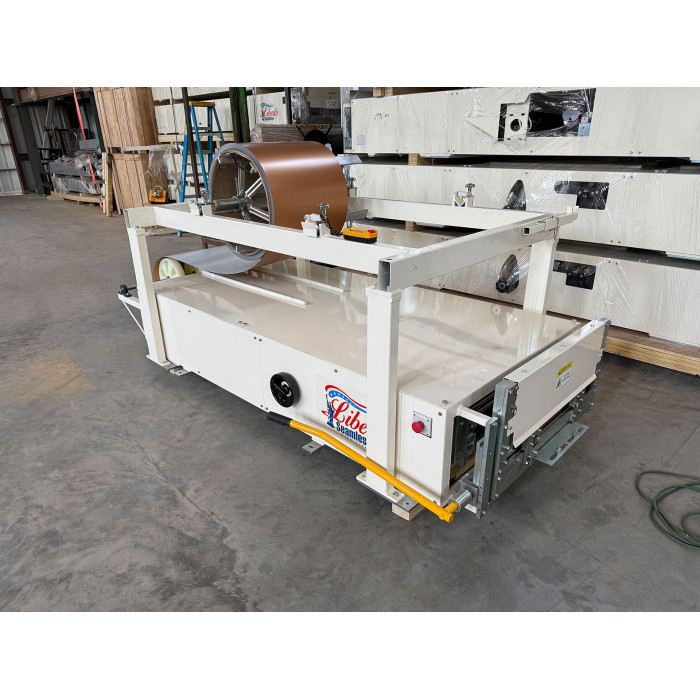

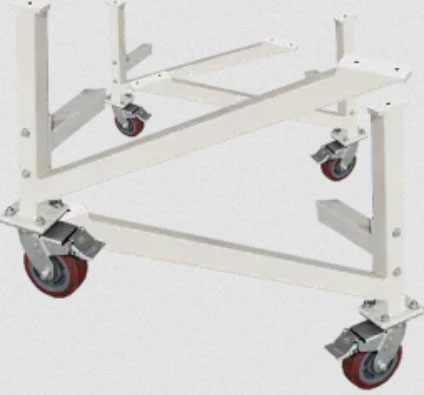

WHSD Warehouse Stand
Mobile roller base for easy machine movement inside workshop environments.

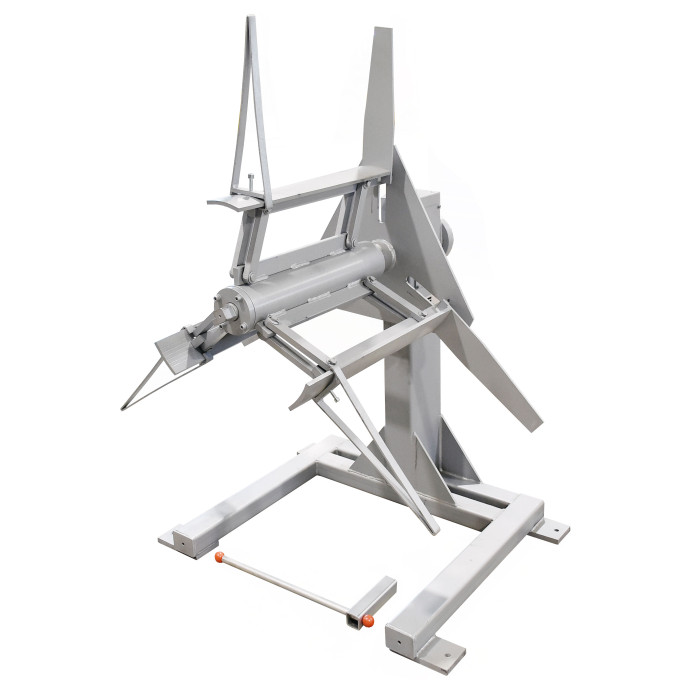

D200 Decoiler
Single stand decoiler system for coils up to 1500 lbs with stable feeding performance.
Applications
- Residential standing seam roofing
- Commercial metal roofing systems
- Industrial construction projects
- On-site mobile panel production
Warranty & Technical Support
The SS4E-PRO includes a one-year limited warranty covering manufacturing defects and select machine components under normal operating conditions. Our online technical support team is available to assist with machine setup, operation, adjustments, troubleshooting, and replacement parts.
With U.S.-based support and order fulfillment from our Pennsylvania warehouse, you can minimize downtime and keep your production running smoothly.
Financing Available
Flexible financing solutions allow businesses to start production without a significant upfront investment while generating revenue from day one.
- Preserve cash flow
- Affordable monthly payment plans
- Start generating revenue while you pay
- Scale production capacity faster
Learn more about available payment options on our
financing page .
