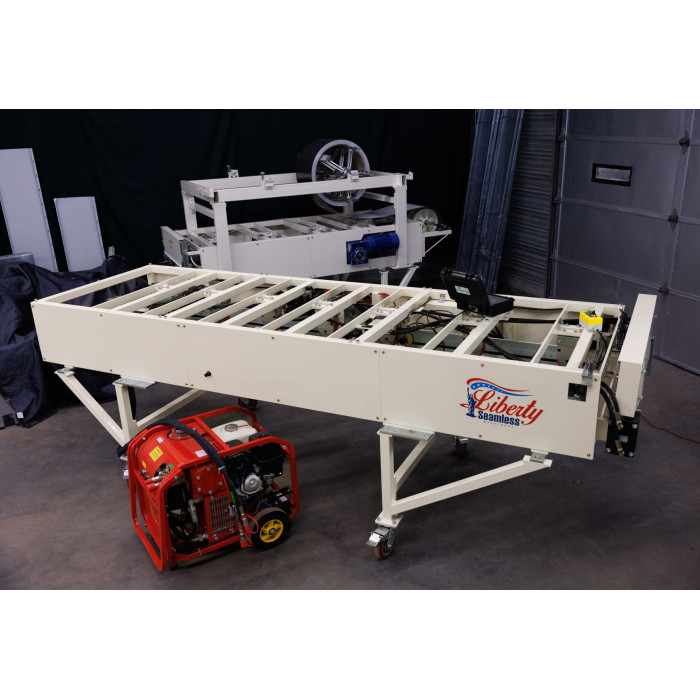

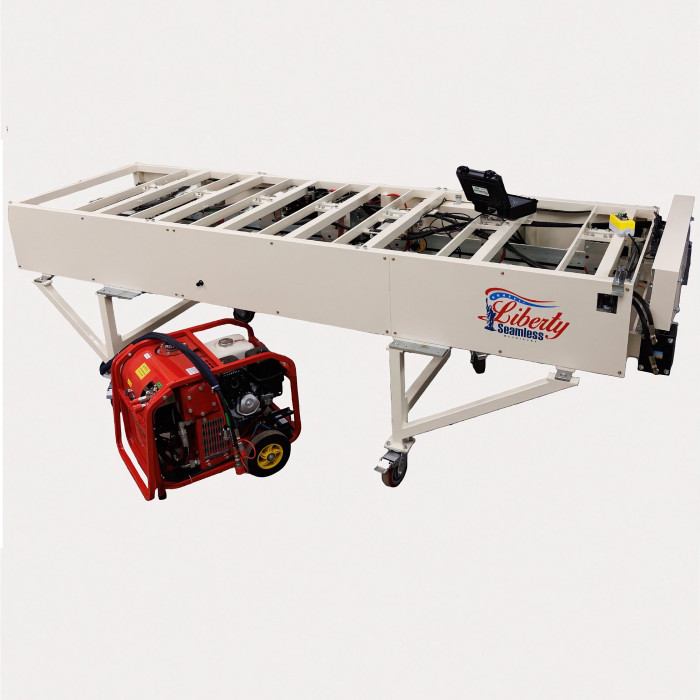

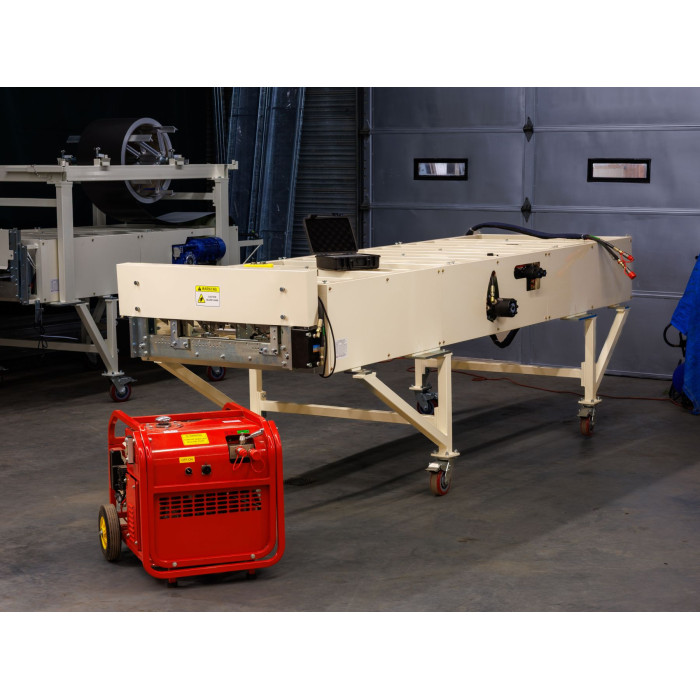

SS4E-HD Hydraulic Multi-Profile Roof & Wall Panel Machine
A heavy-duty hydraulic roll forming machine for producing standing seam roofing, snap-lock panels, siding, soffit and custom metal profiles directly from coil.
Hydraulic Forming
Hydraulic drive provides controlled forming power for demanding roofing and wall panel production.
Automatic Notching
Hydraulic pre-notching prepares both panel ends before forming, reducing manual cutting and finishing work.
Multi-Profile
Interchangeable tooling allows one machine to produce multiple roofing and wall panel profiles.
Mobile or Shop Use
Gas-powered hydraulic operation supports mobile production, while an electric option is available for workshops.
Built for Multi-Profile Panel Production
The SS4E-HD is designed for roofing contractors, metal panel manufacturers and fabrication businesses that need more flexibility than a single-profile roll former can provide. Interchangeable forming tooling allows the machine to be configured for different panel styles and production requirements.
The production process starts with a metal coil and runs through feeding, automatic pre-notching, roll forming and hydraulic cutting. PLC controls allow the operator to set panel length, quantity and automated processing functions.
Available Panel Profiles
- 1" Mechanical Double-Lock Standing Seam
- 1.5" Mechanical Double-Lock Standing Seam
- 1" Snap-Lock
- 1.5" Snap-Lock
- Slotted-Flange Snap-Lock
- Clip-Style Standing Seam
- Board and Batten Siding
- Flush Wall Panels
- Soffit
- Underdeck
- Custom Metal Panel Profiles
Automatic Pre-Notching & Hydraulic Shearing

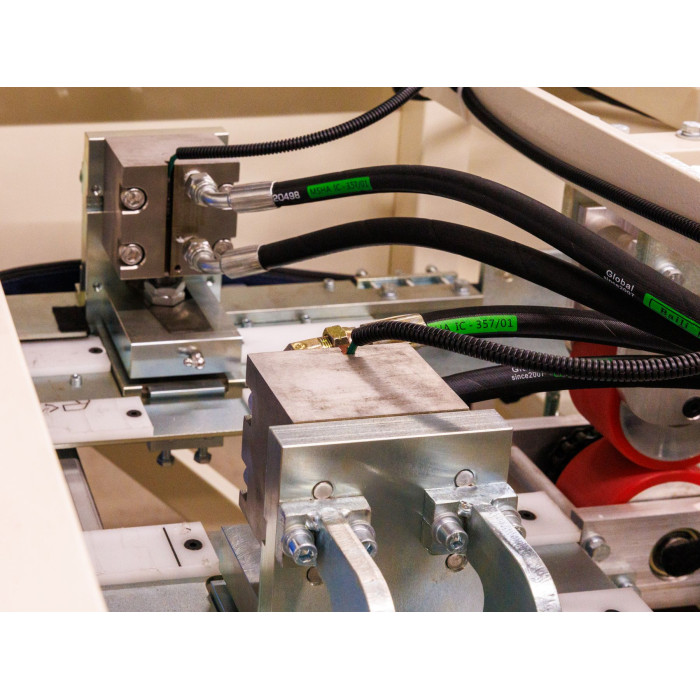

The hydraulic pre-notching system creates consistent rectangular notches at both ends of the panel before the legs are formed. A 1" flat tab remains for the finished panel end.

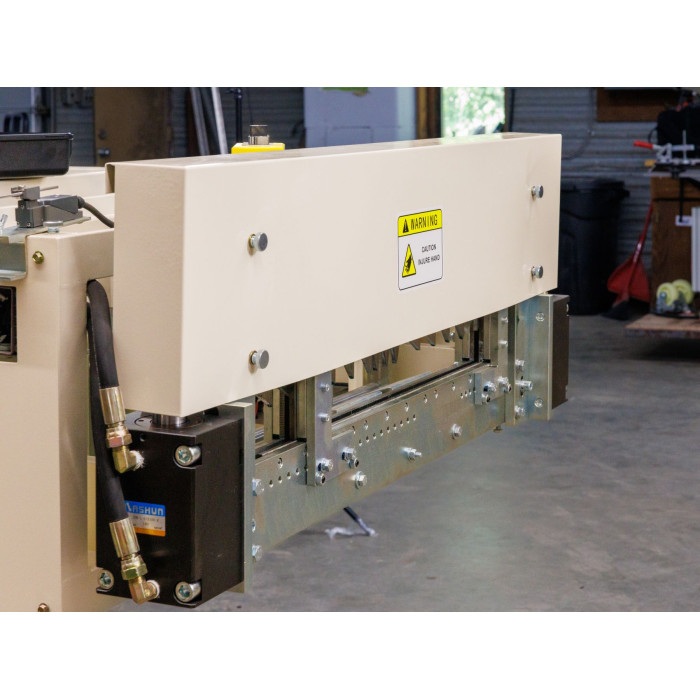

After forming, the hydraulic exit shear cuts through the remaining flat section instead of cutting through fully formed panel edges. This helps reduce manual snipping and provides more consistent panel preparation.
Material & Capacity
- Input coil width: 15"–28"
- Finished panel width: 12"–24"
- Pre-painted steel
- Galvanized steel
- Galvalume
- Aluminum: 0.024"–0.040"
- Copper: 10–16 oz, 3/4 hard
- Steel: typically 24–26 gauge, depending on profile and configuration
Production & Controls
- PLC touchscreen control
- Automatic panel length setting
- Automatic quantity control
- Automated notching and cutting

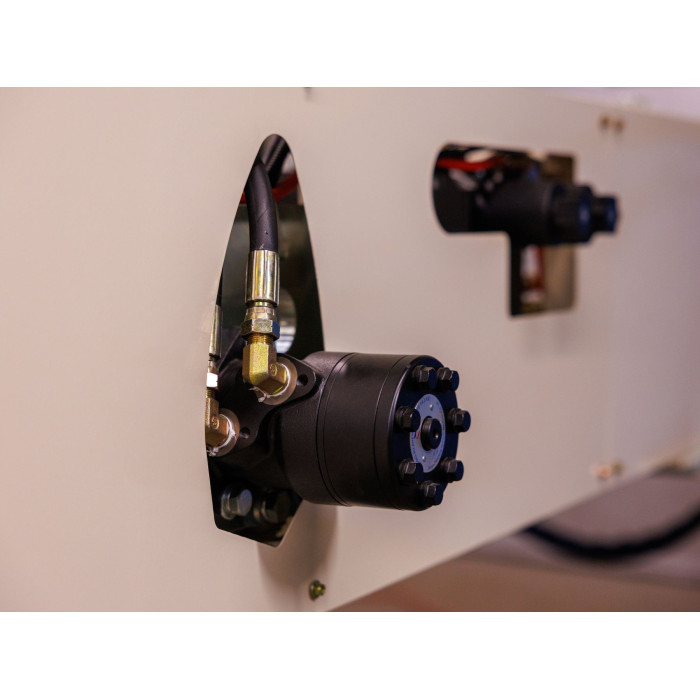

- Hydraulic forming drive

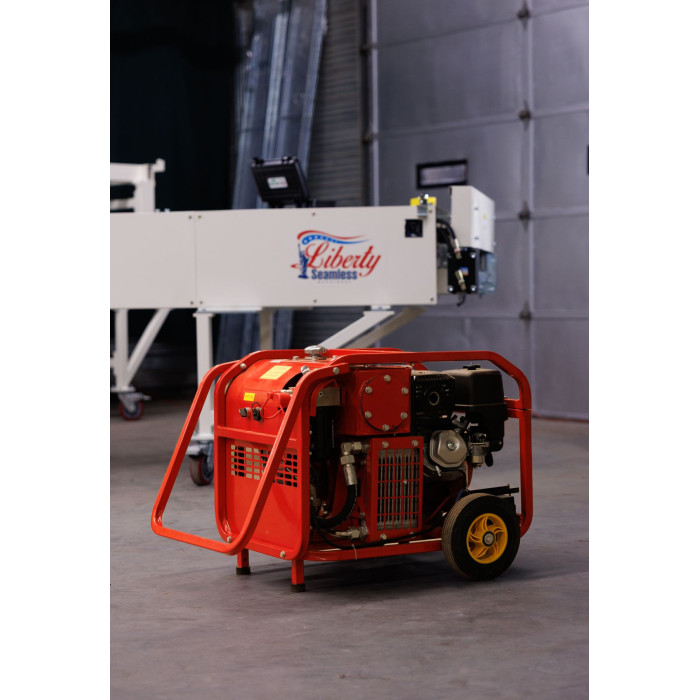

- Honda gas-powered hydraulic station
- Wireless controls
- Six urethane drive rollers
- Adjustable forming width
Mobile or Permanent Installation
The SS4E-HD can be configured for mobile production or a permanent shop environment. Trailer mounting, dual overhead reel racks, expandable arbor reels and warehouse decoiler configurations are available. An optional electric hydraulic station can be specified for workshop installations.
The standard Honda gas-powered hydraulic system is particularly useful for contractors who manufacture panels at the job site or in locations where electrical power is limited.
Ideal For
Roofing Contractors
Metal Panel Manufacturers
Siding Contractors
Custom Panel Fabricators
Mobile Production
Metal Roofing Businesses
Warranty & Support
The SS4E-HD includes a 1-year limited warranty. Support and replacement parts are available for U.S. and Canadian customers. Additional tooling, custom profiles, trailer equipment, runout systems, power seamers and other production options can be configured to match your application.
Financing options are available.
