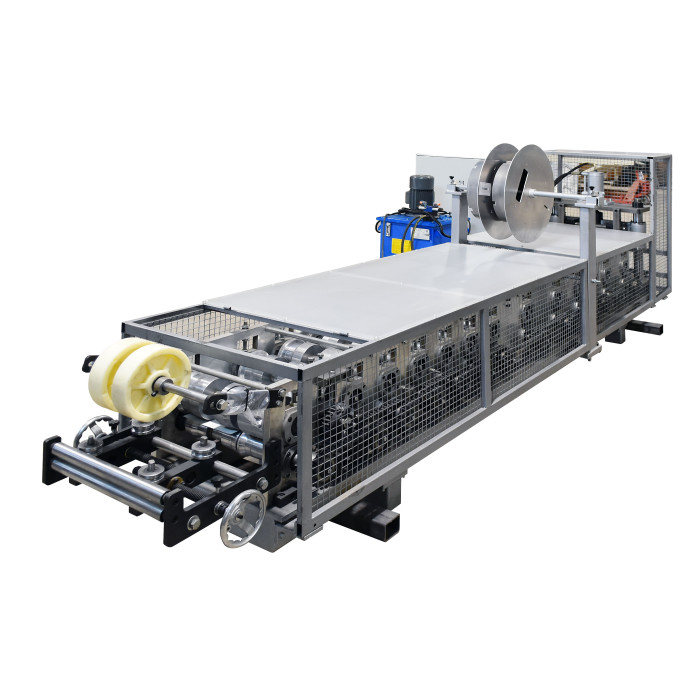

4-6 Siding and J-channel Rollformer

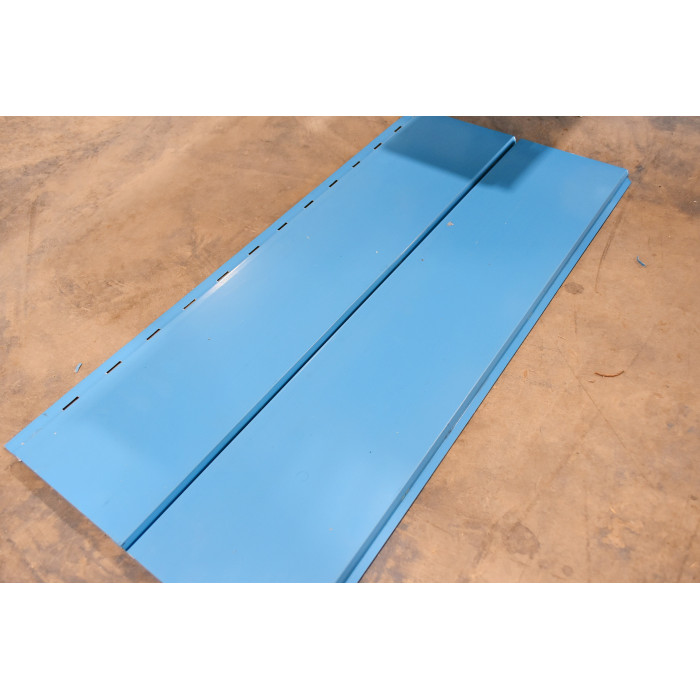

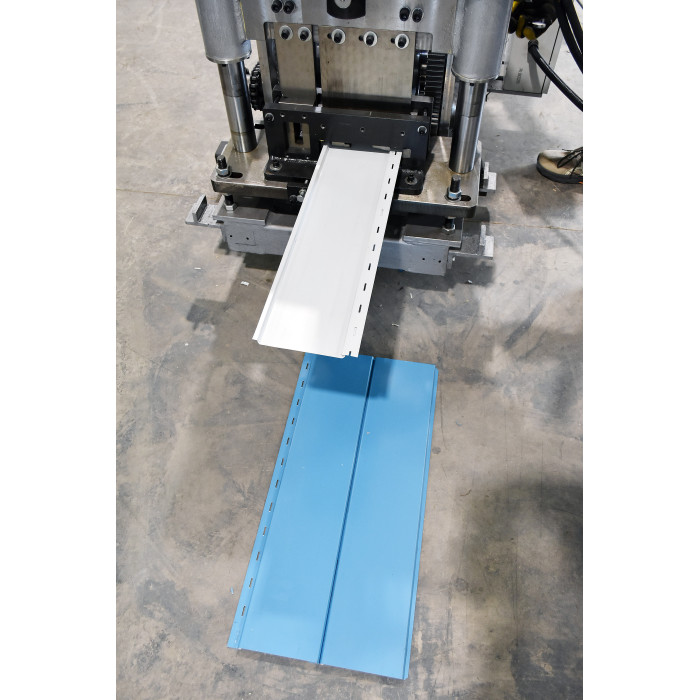

    The 46J metal siding roll forming machine shapes continuous metal sheets or coils into 4" or 6" horizontal wall siding profiles, and J channel to fit siding panels. J channel and siding profiles comes with mounting slots. 4" and 6" wide siding profiles forming with same set of rollers that can be adjusted to switch the width manually with spacers. J channel profile forming on the separate forming rollers on the right side of the main shaft, does not require adjustments.  Machine passing the flat metal strip through a series of tooling forming rollers that progressively bend the metal into the wall siding shape, creating long, uniform, and consistent panels. Machine equipped with hydraulic shear that does not require adjustment. And length and batch controlled with PCL. Wireless remote helps with start feeding and adjustment. These machines are efficient for producing a high volume of uniform panels.

How it works:
    A metal roll or coil is set on the decoiler located on top of the machine and fed into the machine around the front reverse rollers.
    It passes through a series of tooling forming rollers.

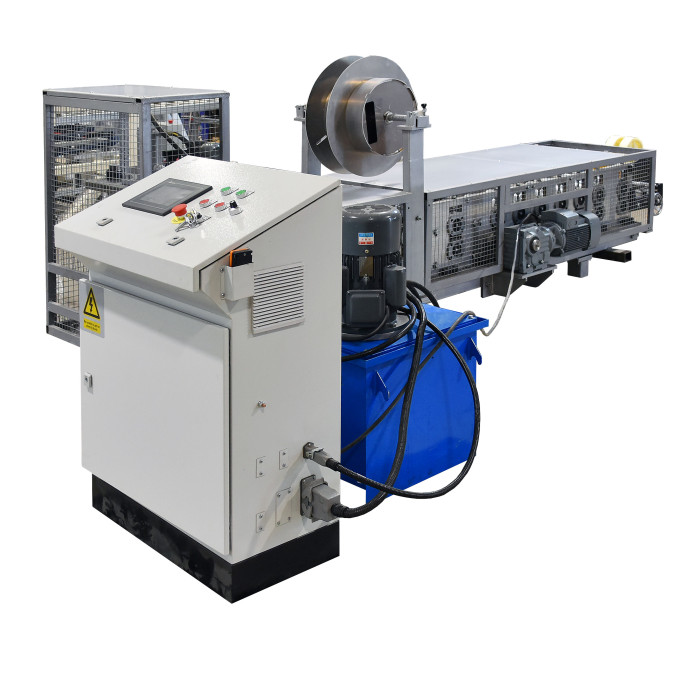

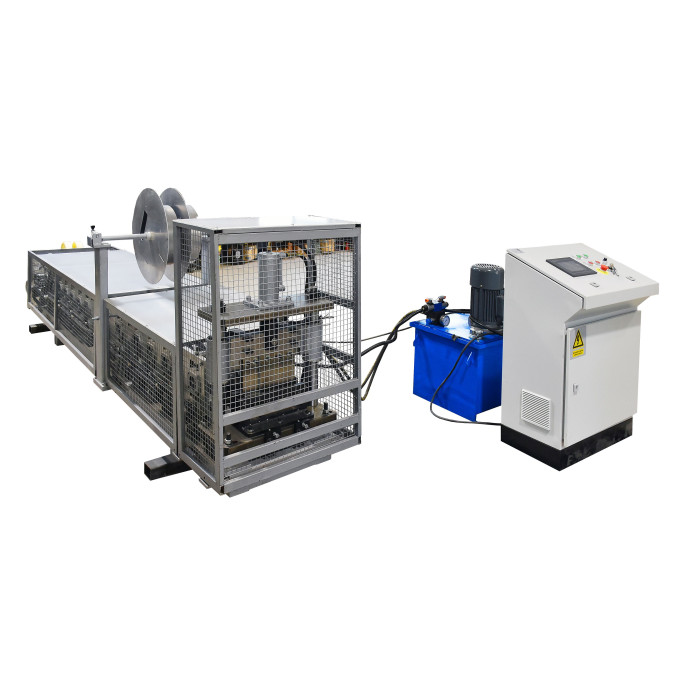

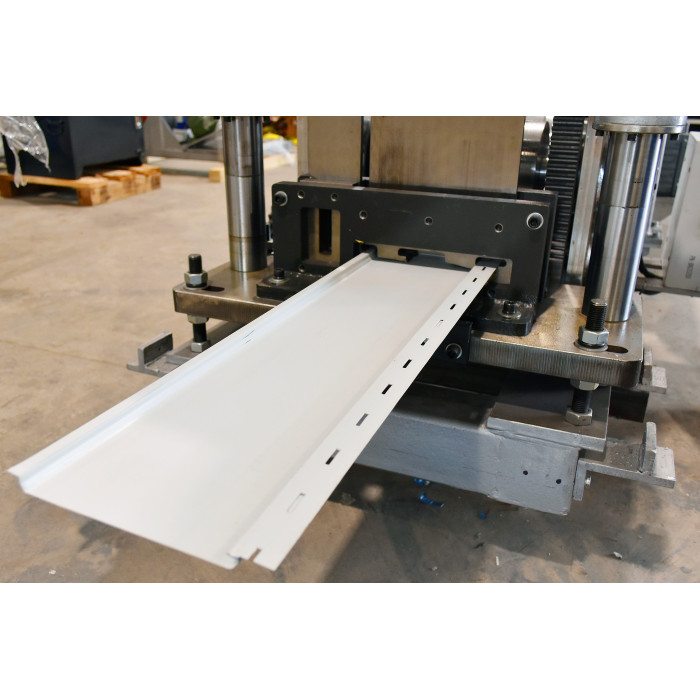

    PLC automated hydraulic cutting system then cuts the formed panels to the required length.

Machine can be adjusted to run PPGI / GI - 26-24 gauge grade 50-60, Aluminum .024-.032

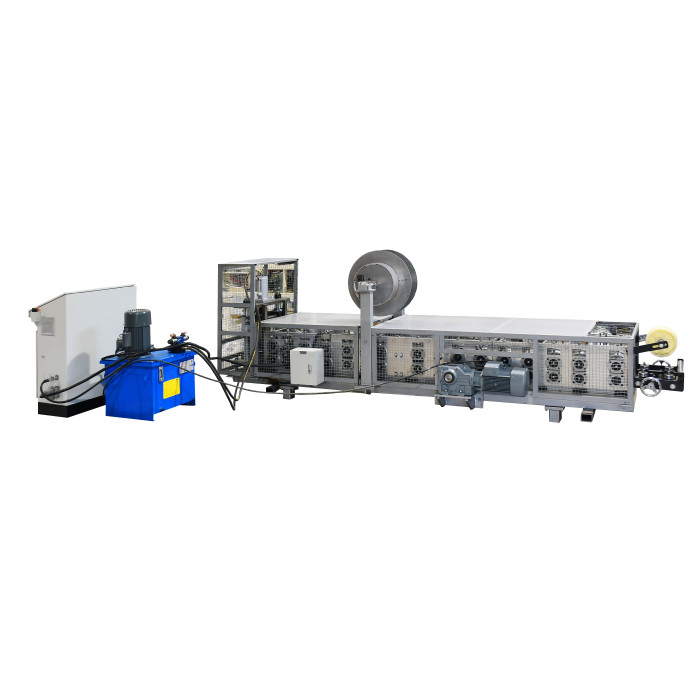

It is a portable machine measures just 13' long, 3' wide and 4' tall.

Weight 4000lbs.

Power requirements 210-240v single phase 3kw hydraulic pump motor and 4kwt main drive motor.
