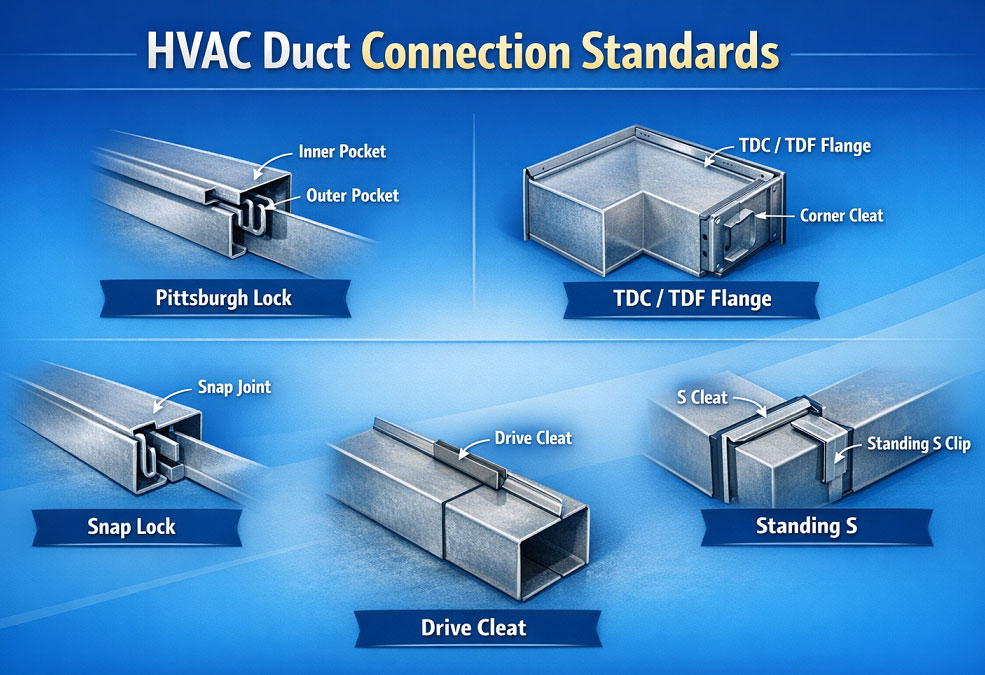

Modern HVAC duct fabrication relies on precision, efficiency, and the right machinery. This guide focuses on lock-formers and TDFC/TDCF machines, comparing their functions, advantages, and applications for efficient duct production. All references to TDC/TDF indicate connection standards, not equipment names.
1. Pittsburgh Lock-Forming Machine
Brief Description: Pittsburgh lockformer machine forms 6 types of locks for rectangular and round ducts, including Pittsburgh, Standing Seam, Hem L/Z, Locking Pin C, and Radial L. Ideal for small to medium workshops.
- Compact and mobile
- Heat-treated rollers for durability
- High efficiency with low noise
2. Pittsburgh S-Cleat C-Drive Machine + Flanger Attachment
Brief Description: Multi-functional S-cleat C-drive machine that produces Pittsburgh locks, S-cleats, drive cleats, and seam locks, with an optional flanger for elbows. Suitable for medium workshops handling varied ductwork.
- Four-in-one functionality
- Handles multiple duct widths
- Durable and low maintenance

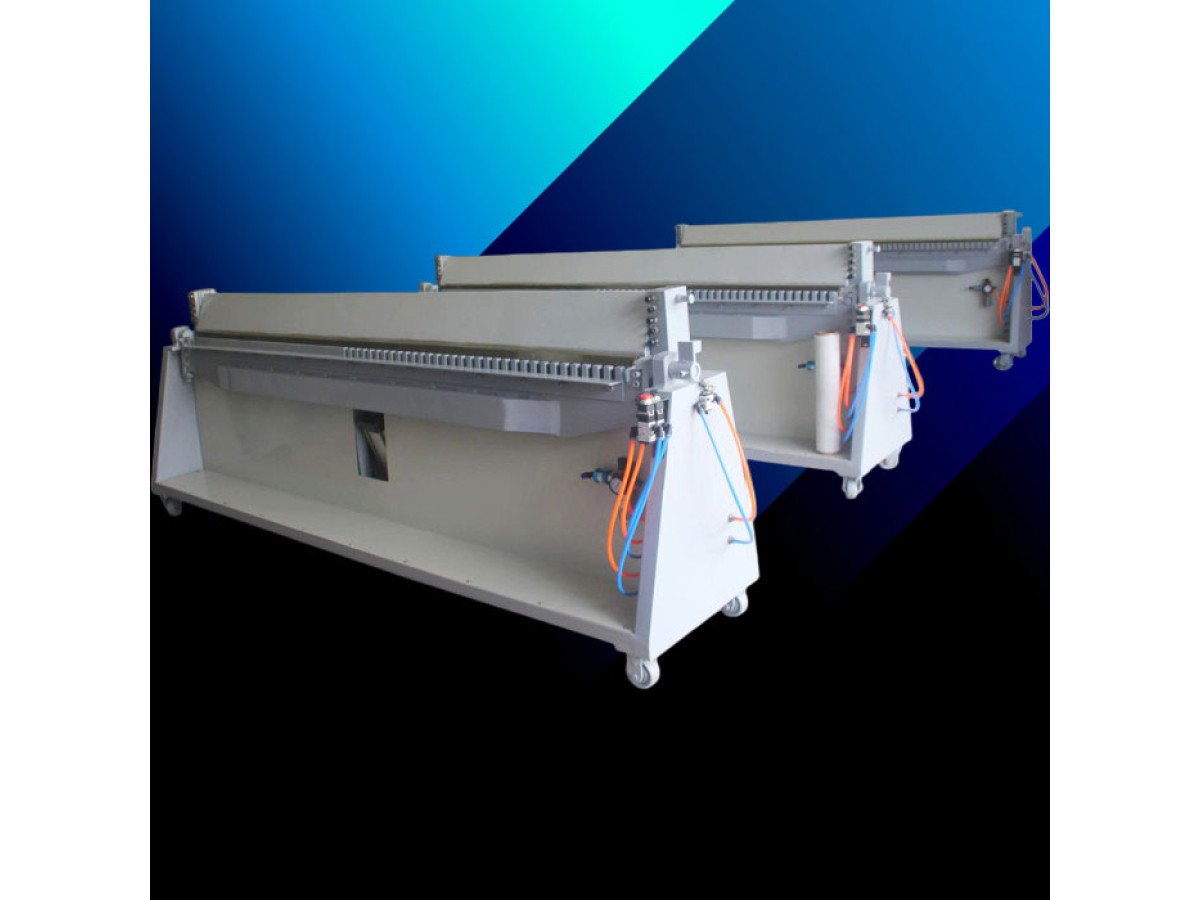

3. Pneumatic TDFC Sheet Metal Duct Brake
Brief Description: air duct brake machine for bending straight duct sections 0–120° with preformed or integrated TDC/TDF standard flanges. Operable by a single operator.
- Fast, precise bending
- No electricity required
- Minimal setup changes
4. TDFC TDCF Lock & Cleats Roll-Former
Brief Description: High-volume TDFC TDCF flange forming machine, locks, and cleats.Fully compatible with TDC/TDF connection standards, including automatic corner finishing.
- Reduces labor and material costs
- High precision and consistent output
- Convertible flanges for stronger joints
5. Standing S-Cleat Rail Roll Forming Machine
Brief Description: S-Cleat Rail Roll Former produces reinforced Standing S-cleat profiles for wide ducts (>20–24 inches), combining traditional S-cleat with a standing seam for rigidity.
- Extra structural strength for wide ducts
- Long-lasting construction with precise rollers
- Reduces reliance on outsourced production
6. Pneumatic TDFC Corner Fixing Machine
TDFC Corner Fixing Machine - automates corner crimping for ducts with TDC/TDF standard flanges, ensuring fast, precise, and permanent connections.
- Minimizes manual labor
- Pneumatic operation for speed and accuracy
- Ensures consistent corner quality
Comparative Table – Lock-Formers and TDFC/TDCF Machines
| Machine | Function | Gauge | Speed | Dimensions | Weight | Best For |
|---|---|---|---|---|---|---|
| Pittsburgh Lock-Former | 6 lock types | 22–26 | 36 ft/min | 44×24×43" | 600 lbs | Small-medium workshops |
| S-Cleat C-Drive + Flanger | Multi-lock & flanger | 18–26 | 36 ft/min | 55×24×46" | 950 lbs | Medium workshops |
| Pneumatic TDFC Brake | Bending 0–120° with TDC/TDF standard flanges | ≤18 | Manual | 60×30×40" | 1330 lbs | Straight duct folding |
| TDFC TDCF Roll-Former | Flange, lock, cleat compatible with TDC/TDF standards | 18–24 flange | 45 ft/min | 110×30×48" | 2100 lbs | High-volume production |
| Standing S-Cleat Rail | Reinforced S-cleat using TDC/TDF standards | 22–26 | 24 fpm | 125×28×46" | 2400 lbs | Wide duct systems |
| Pneumatic TDFC Corner Fixing | Corner crimping TDC/TDF flanges | 16–26 | Manual | 60×30×40" | 660 lbs | TDC/TDF duct assembly |
Conclusion – Choosing the Right Lock-Former or TDFC/TDCF Machine
- Small to medium workshops: Pittsburgh Lock-Former
- Multi-lock & elbow connections: S-Cleat C-Drive + Flanger
- Fast bending of straight ducts: Pneumatic TDFC Brake
- High-volume TDFC/TDCF production: TDFC TDCF Roll-Former
- Wide duct applications: Standing S-Cleat Rail
- Duct assembly with TDC/TDF standard flanges: Pneumatic TDFC Corner Fixing
By focusing on lock-formers and TDFC/TDCF machines, HVAC manufacturers can optimize workflow, reduce labor costs, and ensure consistent, high-quality duct fabrication while remaining compliant with TDC/TDF connection standards.
