TDFC Flange Forming Machine – 2-in-1 HVAC Square Duct Roll Former

TDFC 2-in-1 HVAC Square Duct Roll Former – HVAC Sheet Metal Duct Machine

What is a TDF Flange Forming Machine used for?

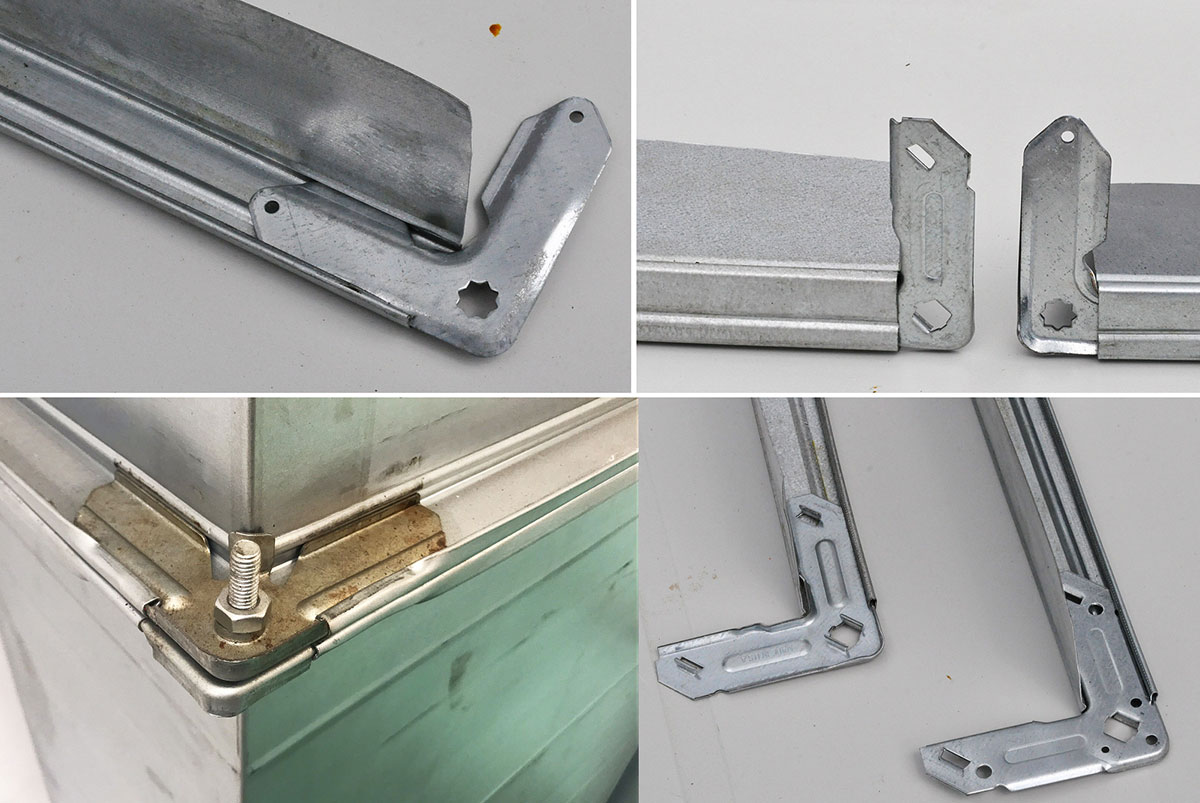

The TDFC Flange & Cleats Roll Former is a high-precision HVAC duct machine designed to produce standard TDF flanges and cleat profiles for rectangular sheet metal ductwork. The formed TDF flanges are fully compatible with industry-standard corner systems, including Cornermatic, VDCI, VDCI-F, Auto C, and Cornermate C/F.

WHY CHOOSE THE TDFC ROLL-FORMER?

• High-Precision Production: Produces structurally perfect flanges that ensure tight, seamless connections for rectangular ductwork. Fully compatible with automatic corner insertion systems (Cornermatic®, VDCI, Auto C, Cornermate C/F)
• Convertible Flange: Switch effortlessly between rolling standard flat TDF profiles or grooved reinforced flanges. The built-in groove provides a perfect integrated pocket for mastic, sealant, or glue while maximizing joint stiffness.
• Code-Compliant: Forms standard profile dimensions that align perfectly with standard trade construction guidelines and installation codes. Your finished ductwork will easily pass on-site structural and pressure inspections.
• Waste Elimination: Stop throwing money into the scrap bin. The dedicated cleat side features an entrance slitter that automatically crops and rolls leftover sheet metal into perfect, ready-to-use mounting clips (cleats).
• Industrial Build: Weighing in at 2,100 lbs with a powerful 5 HP motor, this machine completely absorbs forming vibrations. It smoothly processes heavy-gauge structural steel up to 18 Gauge in 3 shifts, year after year, without losing calibration.

Technical Parameters

• Roll-forming speed: 45 ft/min*
• Number of forming passes: 15 (flange), 14 (cleat)
• Material capacity:
  • 18–24 gauge for TDF flange
  • 22 gauge for cleat
• Main motor: 5 HP, 220–240 V, 60 Hz, 3-phase
• Machine dimensions (L × W × H): 110" × 30" × 48"
• Weight: 2,100 lbs

DIRECT ROI BENEFITS FOR YOUR SHOP

• Save on Consumables: Turn sheet metal scrap into profitable cleats. Stop purchasing expensive pre-made galvanized clips.
• Slash Production Time: Forms up to 45 feet of flawless duct edge per minute. Replaces the manual cutting, smoothing, and fastening work of a 3-man crew.
• Leak-Free Joints: Advanced grooved profile ensures premium airtightness ratings for commercial and industrial pressure networks.

Warranty & Technical Support

The Flange & Cleat Roll Former comes with a three-year limited warranty that covers manufacturing defects and specific machine components when operated under standard working conditions. Customers also receive access to online technical assistance for installation, machine operation, parameter adjustments, troubleshooting, and spare parts support.

With U.S.-based service and distribution handled through our Pennsylvania warehouse, downtime is reduced and production continuity is better supported.
