Standing seam metal roof panels have become one of the fastest-growing roofing solutions across the United States. Their clean architectural appearance, concealed fastening system, exceptional weather resistance, and long service life make them the preferred roofing choice for residential, commercial, industrial, and agricultural buildings.
As demand for standing seam roofing continues to increase, more roofing contractors and metal building manufacturers are choosing to produce roof panels in-house instead of purchasing finished products from suppliers. Modern roll forming equipment allows companies to manufacture custom-length panels on demand while reducing production costs and increasing project profitability.
This guide explains how standing seam roof panels are manufactured, which equipment is required, and why portable roll forming technology has become one of the most profitable investments for roofing businesses.

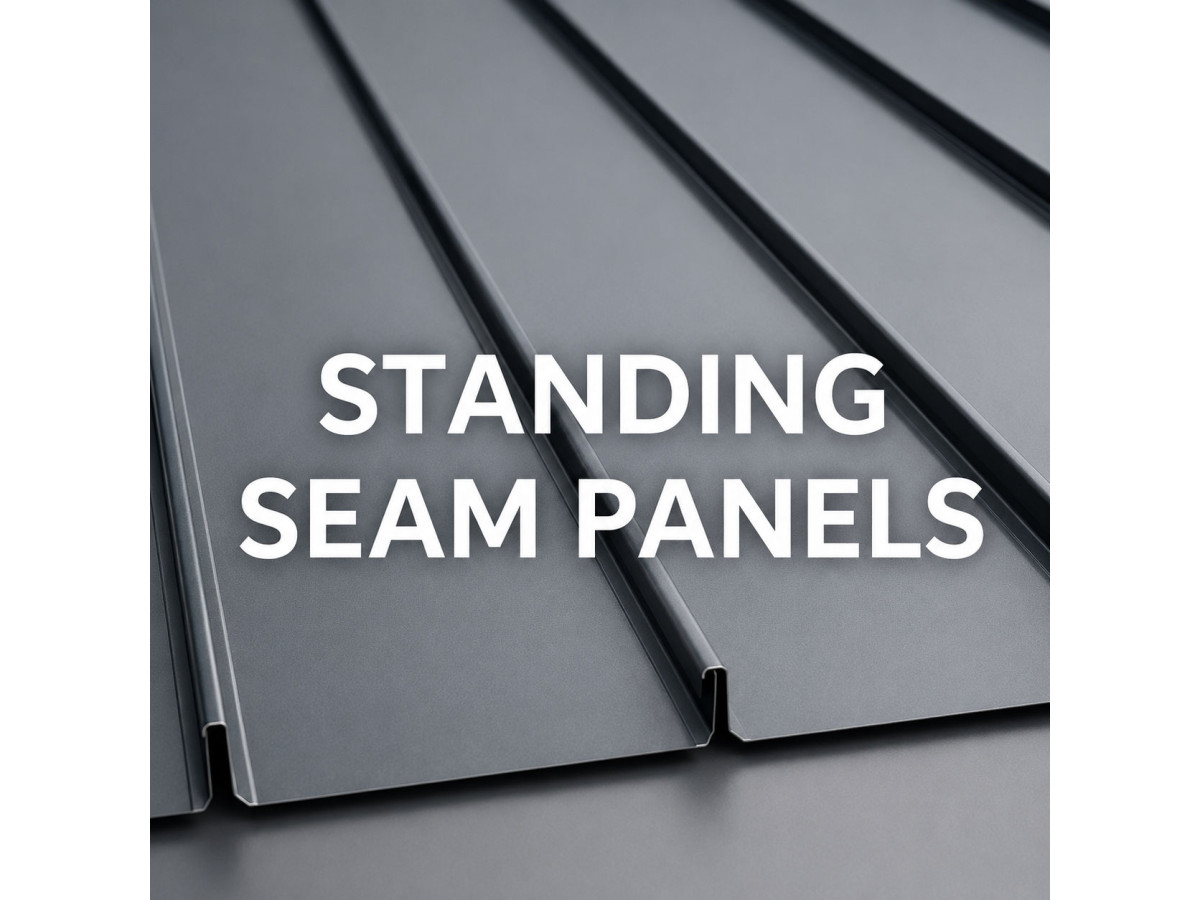

What Are Standing Seam Metal Roof Panels?
Standing seam metal roof panels are long metal roofing sheets connected by raised vertical seams. Unlike traditional screw-down roofing systems, standing seam panels use concealed clips and hidden fasteners that improve waterproof performance while allowing the metal roof to expand and contract naturally during temperature changes.
These roofing systems are widely used on residential homes, commercial buildings, industrial facilities, churches, schools, warehouses, and architectural projects where durability and appearance are equally important.
Why Standing Seam Roofing Is Growing in Popularity
- Hidden fastener roofing system
- Superior leak protection
- Long service life
- Modern architectural appearance
- Excellent wind resistance
- Minimal maintenance requirements
- Custom panel lengths
- Compatible with solar panel installations
Materials Used for Standing Seam Roof Panels
Standing seam roof panels can be manufactured from several different metals depending on the building requirements and climate conditions.
| Material | Common Applications |
|---|---|
| Galvanized Steel | Residential and commercial roofing |
| Galvalume Steel | High corrosion resistance projects |
| Aluminum | Coastal environments |
| Copper | Architectural premium roofing |
| Pre-painted Steel | Residential and commercial buildings |
Typical steel thickness ranges from 29 to 24 gauge, while aluminum and copper are selected according to project specifications.
How Standing Seam Metal Roof Panels Are Manufactured
The manufacturing process begins with a metal coil placed on a decoiler. The material then feeds into a precision roll forming machine where multiple forming stations gradually shape the flat metal strip into the finished standing seam profile.
Unlike press forming, roll forming creates the profile progressively, maintaining excellent dimensional accuracy while protecting painted and coated metal surfaces.
Typical Manufacturing Process
- Load the metal coil onto the decoiler.
- Feed the material into the roll former.
- Progressively form the standing seam profile.
- Create optional beads or striations.
- Cut the panel to programmed length.
- Inspect finished panels.
- Package panels for installation or transportation.
Modern PLC-controlled machines can automatically produce custom-length standing seam roof panels with consistent quality and minimal operator involvement.
Equipment Required for Manufacturing Standing Seam Roof Panels
A professional standing seam roof panel production line generally includes:
- Hydraulic or manual decoiler
- Material feeding system
- Standing seam roll forming machine
- Hydraulic or electric cutting system
- PLC automatic control system
- Run-out table
- Receiving system
Although traditional factory production lines remain common, many roofing contractors today prefer portable roll forming machines that can manufacture panels directly at the construction site.

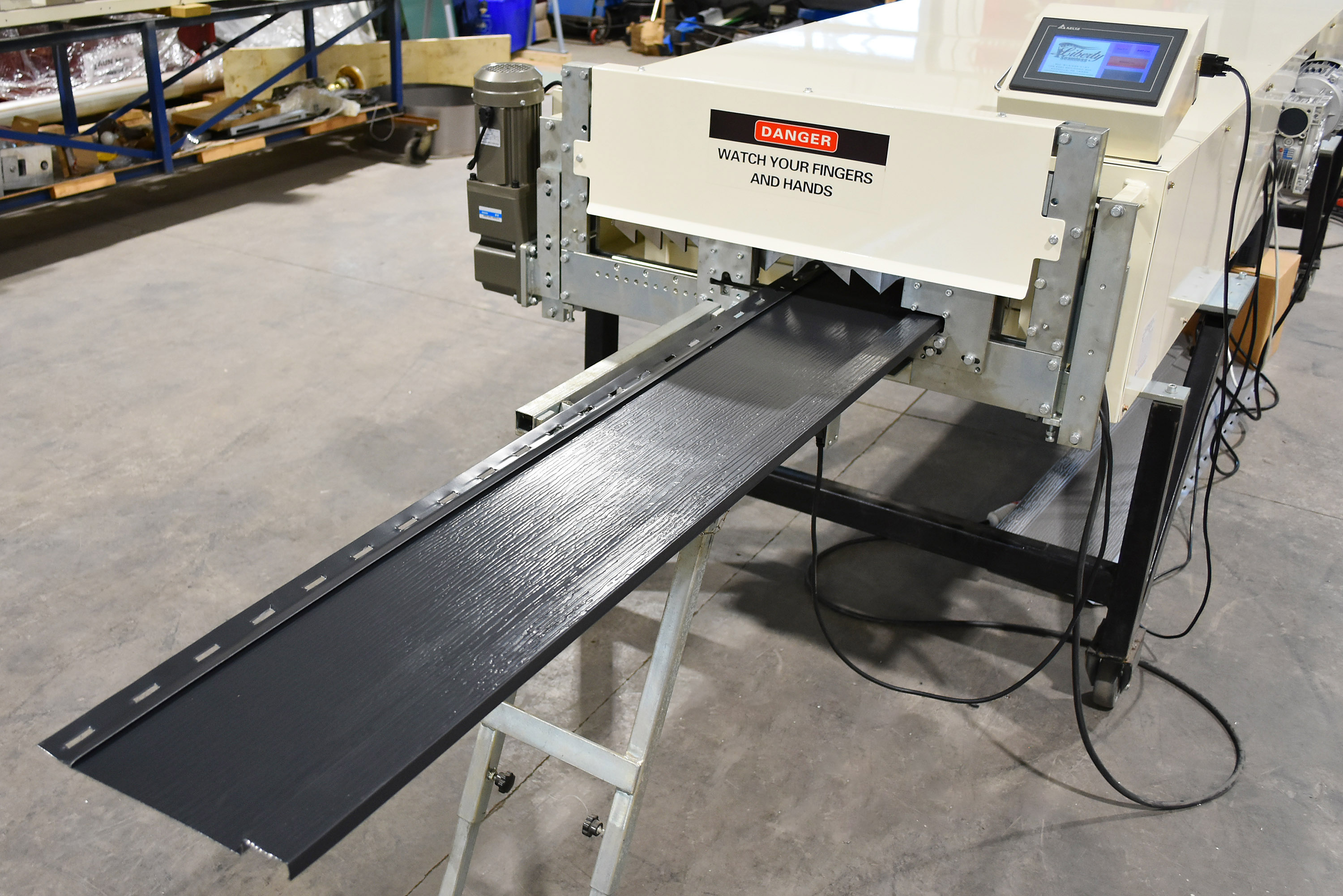

SS4E-PRO Portable Multi-Profile Roof & Siding Panel Machine
The SS4E-PRO is a portable standing seam roll forming machine engineered for roofing contractors, metal roofing manufacturers, and architectural panel fabricators. Unlike stationary production equipment, the SS4E-PRO can be mounted on a trailer and transported directly to the job site, allowing contractors to manufacture custom roof panels exactly when and where they are needed.
The machine produces multiple roofing and siding profiles using interchangeable tooling sets, making it a flexible solution for companies working on residential, commercial, industrial, and architectural projects.
Main Advantages
- Portable trailer-ready machine
- Produce panels directly on-site
- Quick-change tooling system
- Roofing, siding and architectural profiles
- Pennsylvania-based manufacturing
- Fast U.S. delivery
- No overseas shipping delays
- U.S.-based technical support
- Financing options available

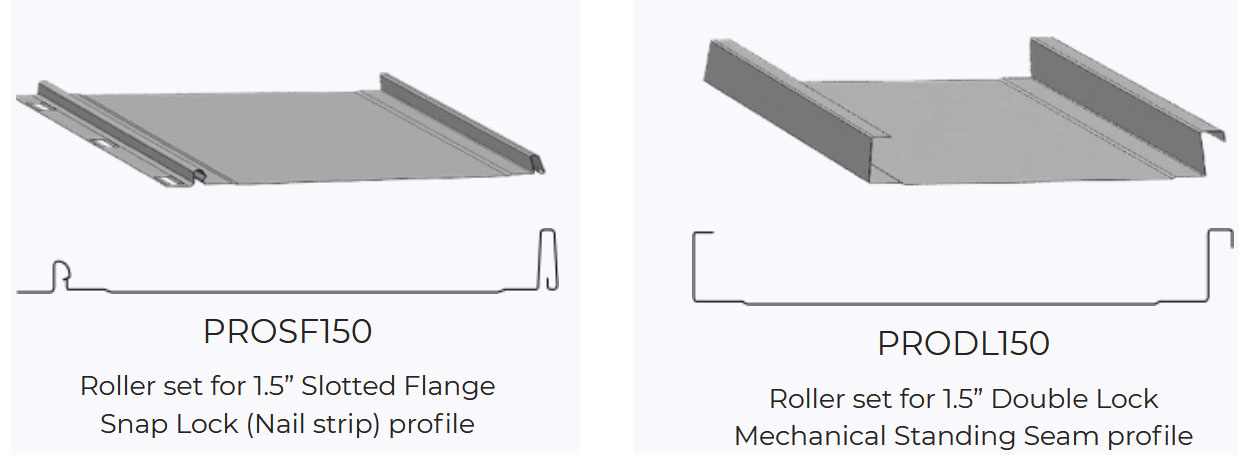

Available Panel Profiles
The SS4E-PRO supports a wide variety of roofing and architectural panel profiles.
- Snap Lock 1.5"
- Snap Lock 1.75"
- Mechanical Standing Seam 1.5"
- Mechanical Standing Seam 2.0"
- Double Lock
- Board & Batten
- Flush Wall Panels
- Underdeck Systems
- Slotted Flange Snap Lock
Additional interchangeable roller tooling allows manufacturers to expand production capabilities without purchasing another machine.
Technical Specifications
| Specification | Value |
|---|---|
| Production Speed | 25–70 FPM |
| Steel Capacity | 29–24 Gauge |
| Aluminum Capacity | 0.019"–0.032" |
| Copper Capacity | 16–20 oz. |
| Power Supply | 110V / 220V Single Phase |
| Motor | 1.5 HP Leeson |
| Panel Width | 12"–24" |
| Material Width | 15"–28" |
| Control | Wireless Remote + Limit Switch |
| Generator Compatible | Yes (5 kW or larger) |
.jpg)
Why Roofing Contractors Choose the SS4E-PRO
The SS4E-PRO was developed specifically for roofing contractors who want greater control over production, scheduling, and profitability. Instead of depending on outside suppliers, contractors can manufacture standing seam roof panels directly at the construction site or inside their own workshop.
The portable trailer-ready design allows production exactly where panels are needed, eliminating transportation challenges associated with long roofing panels and significantly reducing installation delays.
- Manufacture panels on-site or in the workshop
- Reduce outsourcing costs
- Eliminate delivery delays
- Produce unlimited custom panel lengths
- Expand into siding and architectural panel production
- Increase overall project profitability
- Fast U.S. support from Pennsylvania
Return on Investment (ROI)
For many roofing companies, purchasing finished standing seam roof panels means paying supplier markups, waiting for deliveries, and losing valuable production flexibility. The SS4E-PRO helps contractors recover their investment by manufacturing roofing panels whenever they are needed.
| Buying Roof Panels | Manufacturing with SS4E-PRO |
|---|---|
| Supplier markup on every order | No outsourcing costs |
| Waiting for production slots | Immediate production |
| Transportation of oversized panels | Produce directly on-site |
| Limited panel lengths | Unlimited custom lengths |
| Higher installation delays | Faster project completion |
| Lower profit margins | Higher profit per project |
Example ROI Scenario
A contractor completing just a few standing seam roofing projects each month can significantly reduce outsourcing expenses and transportation costs. Producing panels on demand also minimizes material waste and improves scheduling flexibility.
For many businesses, these savings allow the SS4E-PRO to pay for itself within months while continuing to generate additional profit on every roofing project.
Typical Applications
- Residential standing seam roofing
- Commercial roofing systems
- Industrial buildings
- Agricultural facilities
- Warehouses
- Architectural metal roofing
- Wall cladding
- Board & Batten siding
- Underdeck ceiling systems
Machine Features
| Feature | Benefit |
|---|---|
| Wireless Remote Control | Easy machine operation |
| Quick Change Tooling | Fast profile changes |
| Clip Relief Rollers | Professional panel finish |
| Bead & Striation Rollers | Decorative panel options |
| Trailer Ready Design | Mobile production |
| Generator Compatible | Operate almost anywhere |
| PLC Length Control (Optional) | Automatic production batches |
Optional Equipment
- Automatic electric shear with PLC controller
- 10" touch screen batch controller
- Dual Overhead Reel Rack
- Expandable Arbor Reel
- Reverse Roller Entrance Set
- Warehouse stand with casters
- Trailer package
- Heavy-duty protective cover
- Additional tooling sets
- Run-out table
Warranty & Technical Support
Every SS4E-PRO includes a one-year limited warranty covering manufacturing defects and selected machine components under normal operating conditions.
Technical assistance is provided by our Pennsylvania support team, helping customers with installation, setup, machine adjustments, troubleshooting, replacement parts, and production optimization.
Financing Available
Flexible financing solutions allow roofing companies to begin manufacturing immediately without making a large upfront investment.
- Preserve working capital
- Affordable monthly payments
- Start generating revenue immediately
- Expand production capacity faster
Frequently Asked Questions
Can the SS4E-PRO produce Snap Lock panels?
Yes. The machine supports multiple Snap Lock profiles using interchangeable tooling sets.
Can it produce Mechanical Standing Seam panels?
Yes. Mechanical Standing Seam profiles from 1.5" to 2.0" are available.
Can one machine produce siding panels?
Yes. The SS4E-PRO also manufactures Board & Batten, Flush Wall, Underdeck, and other architectural profiles.
Can the machine be used on-site?
Absolutely. The trailer-ready design allows contractors to manufacture roof panels directly at the construction site.
Which materials can be processed?
The machine forms galvanized steel, Galvalume steel, aluminum, and copper.
Can I produce custom panel lengths?
Yes. Panel lengths can be adjusted according to project requirements.
Does the machine require industrial power?
No. It operates from standard 110V or 220V single-phase power and can also run from a portable generator.
Can additional profiles be added later?
Yes. Interchangeable tooling allows future expansion into additional roofing and siding profiles.
Is financing available?
Yes. Flexible financing options are available for qualified businesses.
Where is technical support located?
Technical support, spare parts, and machine fulfillment are provided from Pennsylvania, USA.
How quickly can the machine pay for itself?
Many contractors recover their investment within months by reducing outsourcing costs, eliminating delivery delays, and increasing project profitability.
Request a Quote
If you are looking for a reliable portable standing seam roll forming machine that manufactures roofing and siding panels directly on-site, the SS4E-PRO Portable Multi-Profile Roof & Siding Panel Machine is a complete production solution.
Contact our sales team today to request pricing, available tooling options, financing information, or a personalized production consultation. Our specialists will help you choose the right configuration for your roofing business.
