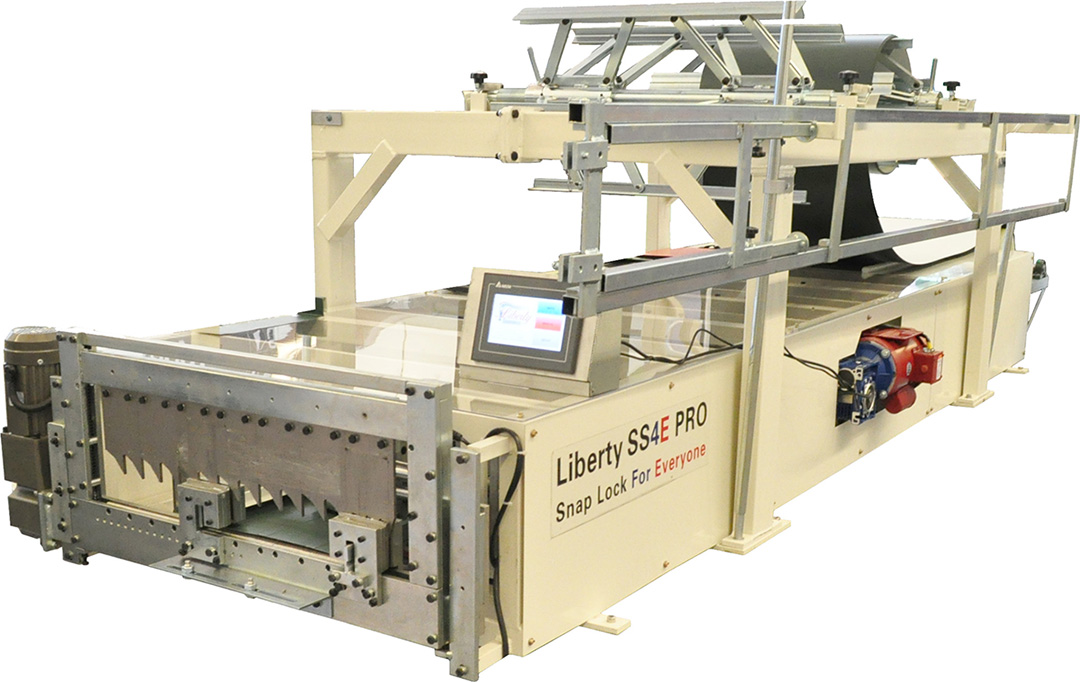

What is SS4E-PRO Roof Panel Machine?
The SS4E-PRO is a portable roll forming machine used to manufacture metal roofing panels directly on-site or in a workshop. It produces Snap Lock, Mechanical Standing Seam, and siding profiles for residential and commercial roofing projects. The machine can be installed on a trailer for full mobility and used directly at the job site.
Fast U.S. Fulfillment
Fast U.S. fulfillment from our Pennsylvania warehouse ensures secure domestic shipping with no overseas delays or customs processing.
This allows customers to receive equipment quickly, start production almost immediately, and accelerate business launch while improving overall return on investment and shortening payback time.
Where this machine is used
- Residential roofing systems
- Commercial buildings
- Industrial facilities
- Wall cladding and siding
- Garages, warehouses, and architectural metal systems
Why contractors choose SS4E-PRO
- On-site or workshop production flexibility
- Reduced material waste and outsourcing costs
- Faster project completion
- Improved profit margins
- Trailer-mounted mobile system
Basic equipment:
- Wireless remote controller
- Corded limit switch for length control
- Manual exit shear
- 1.5 Hp single phase 110/220V electric Leeson motor
- Can be run from a portable generator (5 kW and over) or residential electric supply
- Two sets of bead rollers
Features:

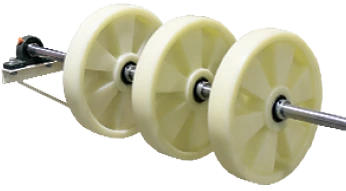

- 6 urethane drive rollers
- Free-floating chrome plated forming rollers mounted
- Two sets of bead rollers convertible into two striation ribs included
- Easy adjustable panel width from 12” – 24”* (actual width range for each panel depends on size and height of the seam)
- Includes clip relief rollers
- Easy change to different various profiles (custom design available)
- Manual exit end shear (electrical and hydraulic drive optional)
- Material width* 15” to 28” (actual material width range depends on forming rollers installed)
- Limit switch for length control (automated length and batch controller with 10" touch screen optional)
- Liberty wireless control Forward/Reverse Start/Stop
- Production speed: 25 to 70 FPM (depends on chosen drive type and power)
Rollers:
Our bead rollers are designed so that you can switch between bead and striation ribs using the same set.
The standard package includes two sets of bead rollers. To create the most common striation pattern (set of three lines), an additional set is required.
Metal:
- Aluminum: 0.019" – 0.032"
- Galvanized steel (GI): 29 – 24 gauge
- Copper: 16 – 20 oz.
Available panel profiles
- Snap Lock systems (1.5” – 1.75”)
- Mechanical Standing Seam (1.5” – 2.0”)
- Double Lock profiles
- Board & Batten siding
- Underdeck systems
- Slotted Flange Snap Lock
Panel options
PROSF10
Roller set for 1” Slotted Flange
Snap Lock (Nail strip) profile
PROSF150
Roller set for 1.5” Slotted Flange
Snap Lock (Nail strip) profile
PROFW10
Roller set for 1” Siding / Underdeck
/ Flush profile
PROSL150
Roller set for 1.5” Snap Lock
with clip 2 profile
PROSL175
Roller set for 1.75” Snap Lock
with clip profile
PRODL150
Roller set for 1.5” Double Lock
Mechanical Standing Seam profile
PRODL200
Roller set for 2.0” Double Lock
Mechanical Standing Seam profile
PRODM150
Roller set for 1.75” Double Lock
Mechanical Double Male profile
B&B
Roller set for Board & Batten Siding profile
PROUD150
Roller set for 1.5”Underdeck profile
Addition to the machine
RRS
DORR
EXA
WHS
AES/PLC
SRS
SSCVR
T10
4HP220
ROT
Why SS4E-PRO pays for itself
SS4E-PRO allows contractors to produce roofing panels immediately, reducing outsourcing costs and increasing control over production timelines. Even a few weekly roofing projects can recover the investment within months.
Warranty & Technical Support
SS4E-PRO includes a one-year limited warranty covering manufacturing defects and selected machine components under normal operating conditions. Online technical support is available for machine setup, operation, adjustments, troubleshooting, and replacement parts.
U.S.-based support and fulfillment from our Pennsylvania warehouse help minimize downtime and keep production running efficiently.
Financing available
Flexible financing options help businesses start production without large upfront investment while generating revenue immediately.
- Preserve cash flow
- Monthly payment plans
- Start earning while paying
- Expand business capacity faster
Learn more about available payment options on our financing page .
