Portable • Electric • Made for Mobile Contractors

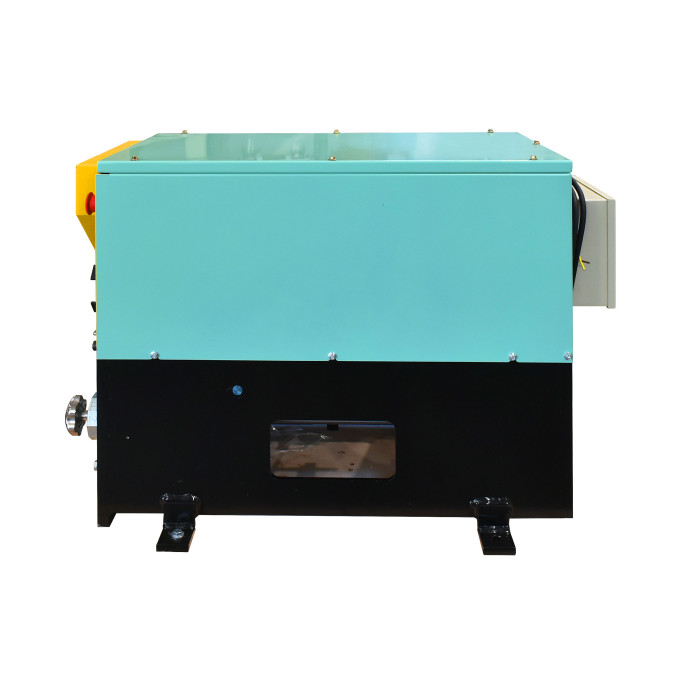

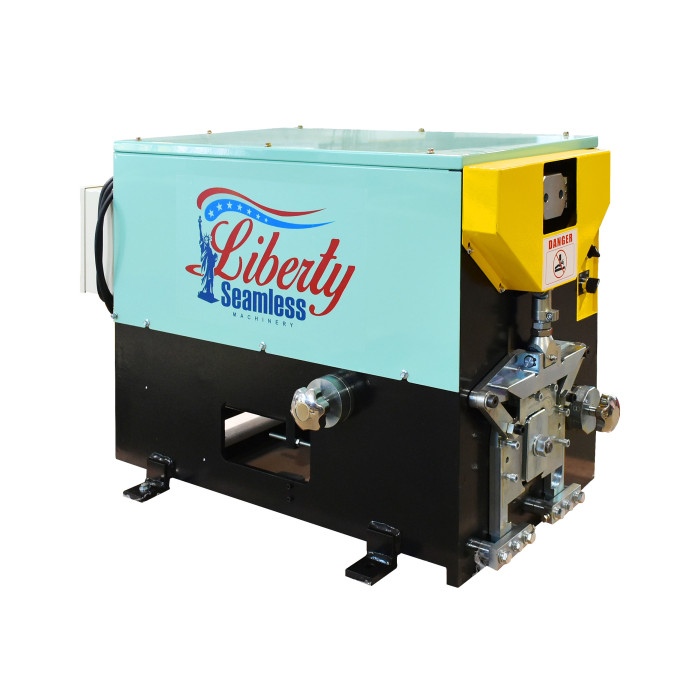

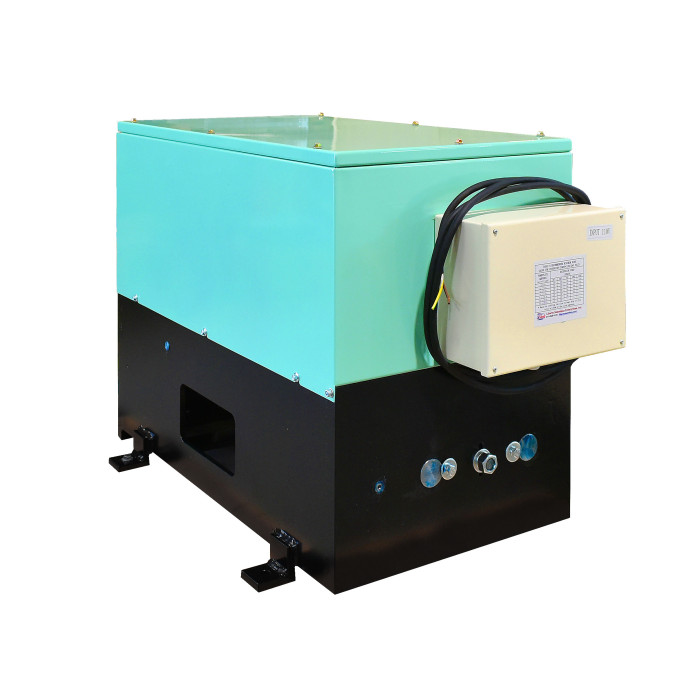

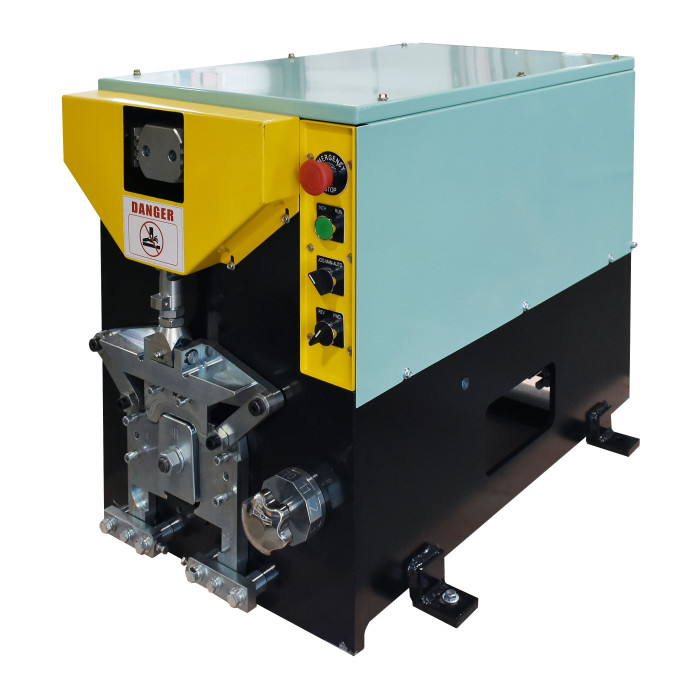

Model LEL Portable Electric Downspout Elbow Machine for Gutter Systems
Produce Round & Rectangular Elbows On-Site in Just 10 Seconds
The Downspout Elbow Machine is a portable electric solution for producing round and rectangular elbows for professional gutter and downspout systems. The Model LEL is designed for on-site and shop production of 2×3, 3×4, 2-inch, 3-inch and 4-inch elbows.
The machine is suitable for gutter contractors, downspout manufacturers and mobile production operations. It can produce components for gutter and rainwater drainage systems and is also suitable for compatible HVAC ductwork applications.
Applications

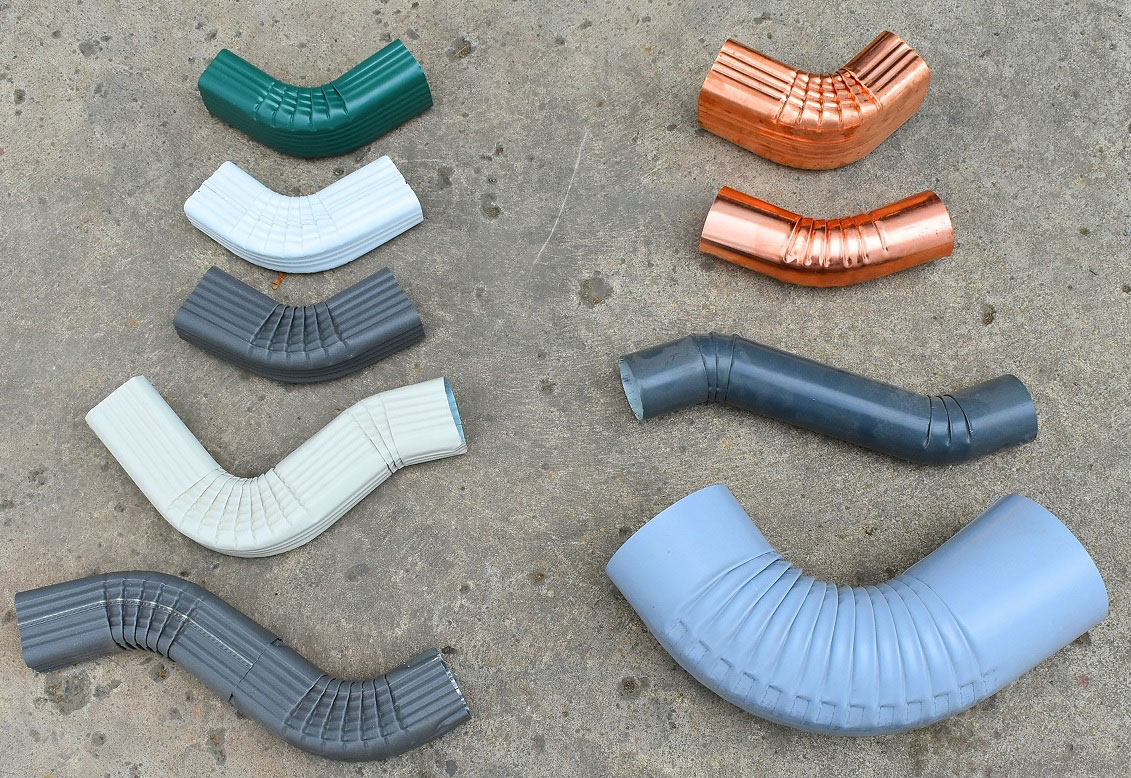

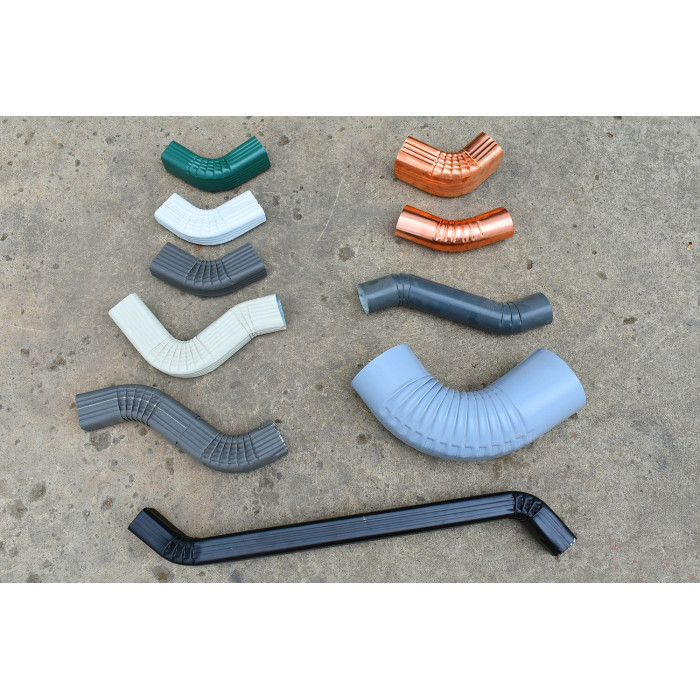

- Production of round and rectangular downspout elbows
- HVAC duct systems
- Gutter and rainwater drainage systems
Technical Specifications
- Model: LEL

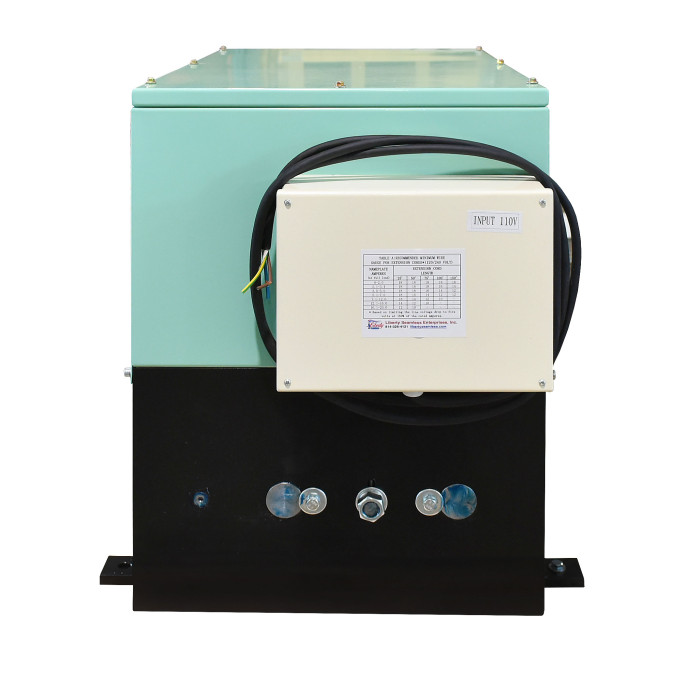

- Motor: 1.5 HP, 110 VAC
- Machine size: 35 x 20 x 24 in. (H)
- Weight: 575 lbs
- Maximum gauge: .024 aluminum, 26 ga. steel
- Speed: 10 seconds per 75° elbow
- Production capacity: 2–6 pcs per minute (depending on pipe size)
Material Compatibility
- Aluminum
- Copper
- Galvanized steel
- PPGI
Standard Size Range
- Rectangular: 2x3, 3x4
- Round: 2 in., 3 in., 4 in.
Features
- Automatic or manual operation

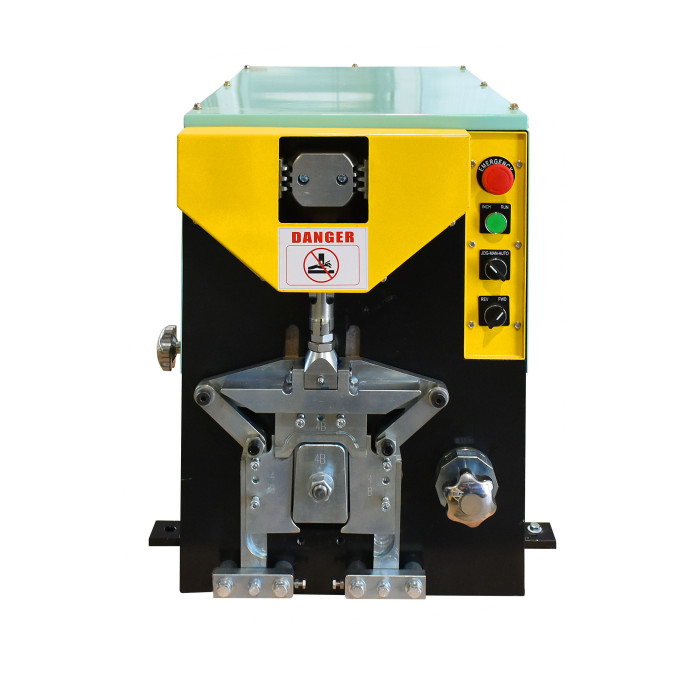

- Front mounted crimper
- Reverse switch for easy operation

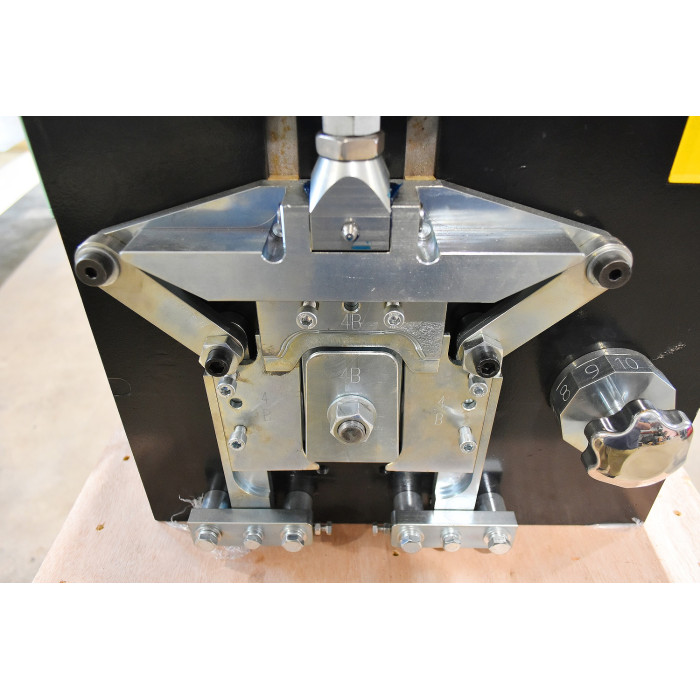

- Direct drive double cam system

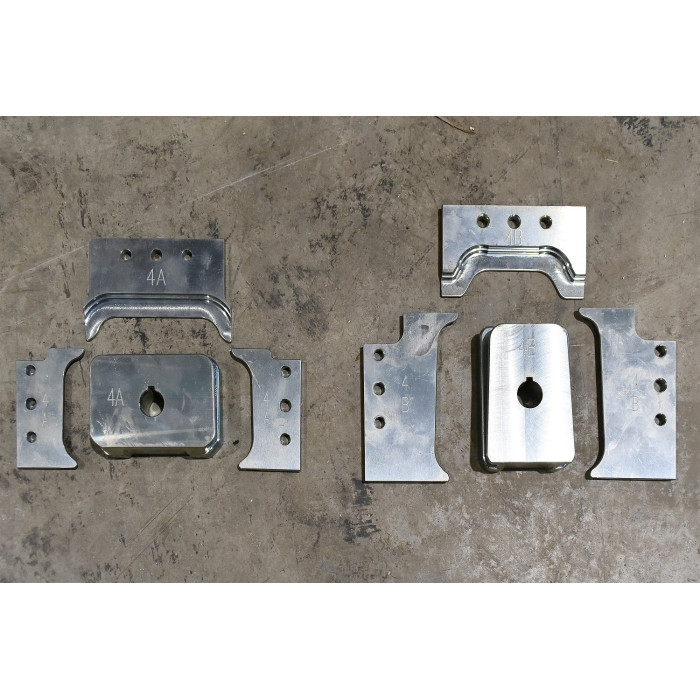

Dies Available
- Rectangle: 2x3, 3x4
- Round: 2 in., 3 in., 4 in.
Assembled in the USA
Key Advantages of the Model LEL Machine
- Compact & Portable Design
- Standard 110V Power Supply
- Interchangeable Dies for Multiple Sizes
- Built-In Front Mounted Crimper
- Heavy-Duty Double Cam Drive System
- High-Speed Production
