Automatic Downspout Elbow Machine

Industrial Automatic Downspout Elbow Machine for Seamless Gutter Manufacturing

The Industrial Automatic Downspout Elbow Machine is a high-performance production system engineered for manufacturers of seamless gutter and rainwater drainage systems. Combining intelligent automation, hydraulic forming technology, and precision control, the machine produces professional-quality downspout elbows with exceptional speed, accuracy, and repeatability.

More than a conventional elbow machine, it can manufacture both standard downspout elbows and one-piece seamless downspout sections with an integrated elbow in a single continuous production cycle. This innovative capability reduces assembly time, improves product appearance, and increases manufacturing efficiency.

Designed for continuous industrial operation, the machine is ideal for gutter manufacturers, sheet metal fabricators, OEM suppliers, and contractors seeking reliable, high-volume production with minimal operator involvement.

Applications

• Seamless gutter manufacturing
• Residential rainwater drainage systems
• Commercial drainage systems
• Industrial building projects
• Architectural sheet metal fabrication
• Downspout component production
• OEM gutter manufacturing
• Metal building products

Key Features

• Fully automatic industrial operation
• Heavy-duty welded steel construction
• 10-inch touchscreen control system
• Intuitive production interface
• Hydraulic corrugating and elbow-forming system
• Pneumatic automatic shear locking system
• Integrated automatic crimping station
• Optical metal detection sensor for automatic crimp activation
• Quick selection of A Elbow or B Elbow production
• Adjustable corrugation steps
• Programmable straight section length
• Consistent high-precision forming
• Minimal operator involvement
• Continuous production capability
• Low maintenance requirements
• Reliable long-term industrial performance

Intelligent Touchscreen Control

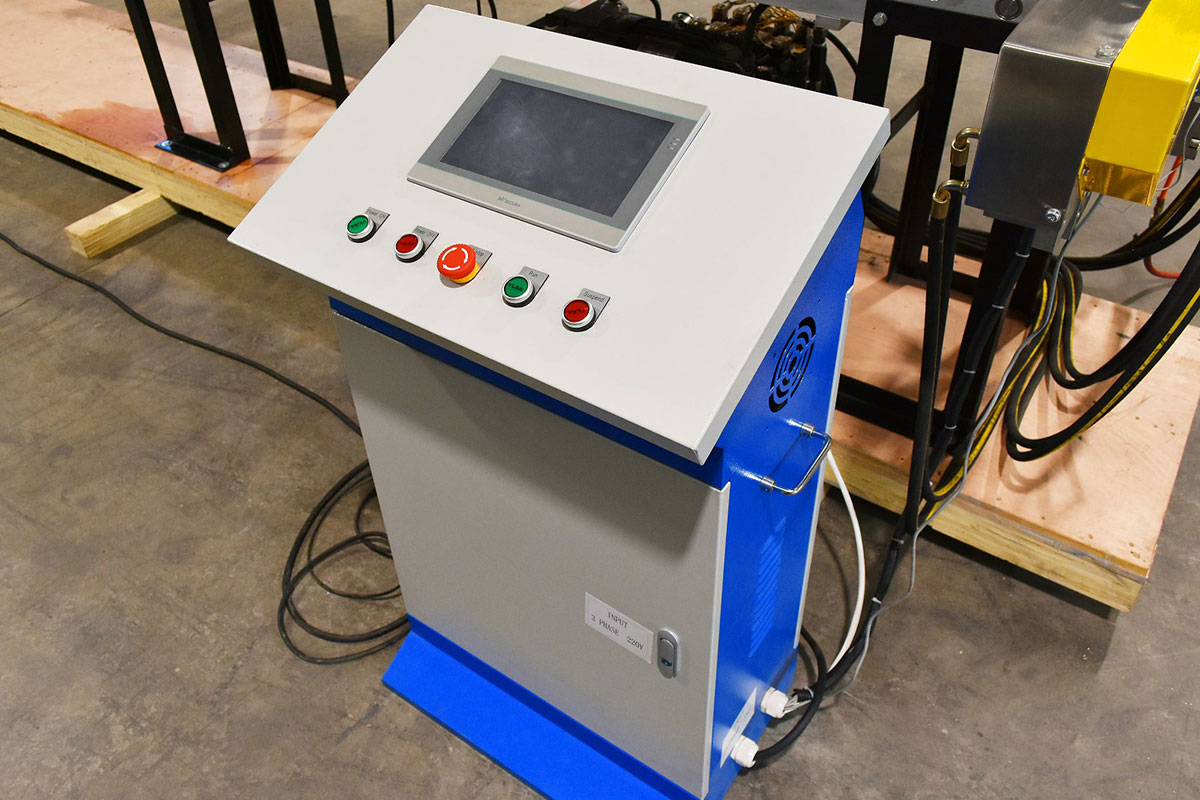

The machine features an integrated 10-inch touchscreen control panel that allows operators to configure production quickly and accurately.

Available settings include:

• A Elbow or B Elbow selection
• Corrugation step adjustment
• Straight section length before the elbow
• Production parameters
• Automatic production control

The intuitive interface minimizes setup time while ensuring repeatable production quality throughout every manufacturing cycle.

Hydraulic Forming System

A powerful hydraulic drive performs the corrugating and elbow-forming operations with exceptional precision and repeatability.

The hydraulic system provides smooth forming, excellent dimensional accuracy, and reliable operation during continuous production shifts.

Automatic Precision Crimping

After the elbow is formed, the workpiece is transferred to the integrated crimping station.

An optical sensor automatically detects the metal and activates the crimping cycle without operator intervention. The finished crimp creates secure, accurate connections, allowing downspout sections to fit together quickly during installation.

Exclusive One-Piece Downspout Production

Unlike conventional elbow machines that manufacture only separate elbows, this machine can produce a complete seamless downspout with an integrated elbow.

The machine automatically forms the elbow and immediately continues producing the required straight downspout section in one uninterrupted production cycle.

The finished component leaves the machine ready for installation, providing:

• Fewer assembly operations
• Improved appearance
• Stronger finished products
• Faster installation
• Reduced labor costs
• Higher production efficiency

This unique capability gives manufacturers a significant competitive advantage in the seamless gutter market.

Supported Downspout Sizes

Rectangular Profiles

• 2" × 3"
• 3" × 3"
• 3" × 4"
• 4" × 4"
• 4" × 5"

Round Profiles

• 3"
• 4"

Custom sizes are available upon request.

Each machine is manufactured for one selected downspout profile and size to ensure maximum forming accuracy and production performance.

Compatible Materials

• Aluminum (.019"–.024")
• Galvanized Steel (29–26 Gauge)
• Copper (16 oz)

Production Speed

• Standard: 30 ft/min
• Optional: 45 ft/min
• Optional: 60 ft/min (Aluminum)

Electrical & Pneumatic System

• Three-phase 220 V power supply
• Hydraulic forming system
• Pneumatic automatic shear locking system
• Integrated emergency stop (E-Stop)
• Industrial electrical components designed for continuous operation

Benefits for Manufacturers

• Increase daily production capacity
• Reduce labor costs
• Improve product consistency
• Produce professional-quality downspout elbows
• Manufacture one-piece seamless downspout assemblies
• Minimize material waste
• Reduce assembly time
• Increase installation efficiency
• Maximize equipment uptime
• Deliver consistent production quality

Ideal For

• Seamless gutter manufacturers
• Rainwater system manufacturers
• Sheet metal fabrication companies
• Building product manufacturers
• OEM production facilities
• Gutter installation contractors
• Architectural metal fabricators

Technical Specifications

Why Choose This Machine?

The Industrial Automatic Downspout Elbow Machine combines intelligent automation, hydraulic precision, high-speed production, and innovative one-piece downspout manufacturing in one efficient industrial solution.

Designed for companies that demand productivity, reliability, and premium product quality, it helps manufacturers reduce production costs, improve efficiency, and produce seamless gutter components that meet the highest industry standards.

Whether you manufacture residential gutter systems or large commercial drainage products, this machine delivers the performance, consistency, and competitive advantage required for modern industrial production.
