TDF and TDC duct flange systems are the two most widely used connection methods for rectangular HVAC ductwork. Both provide strong, reliable flange connections while reducing fabrication time compared to traditional angle iron frames.
Whether you manufacture commercial HVAC duct systems or industrial ventilation equipment, choosing the right flange system and forming machine directly affects production speed, assembly quality, and manufacturing costs.
Stangroup manufactures professional TDF and TDC flange forming machines designed for high-volume rectangular duct production. Our equipment delivers precise flange profiles, consistent dimensions, and reliable long-term operation.
What Is a TDF Duct Flange?

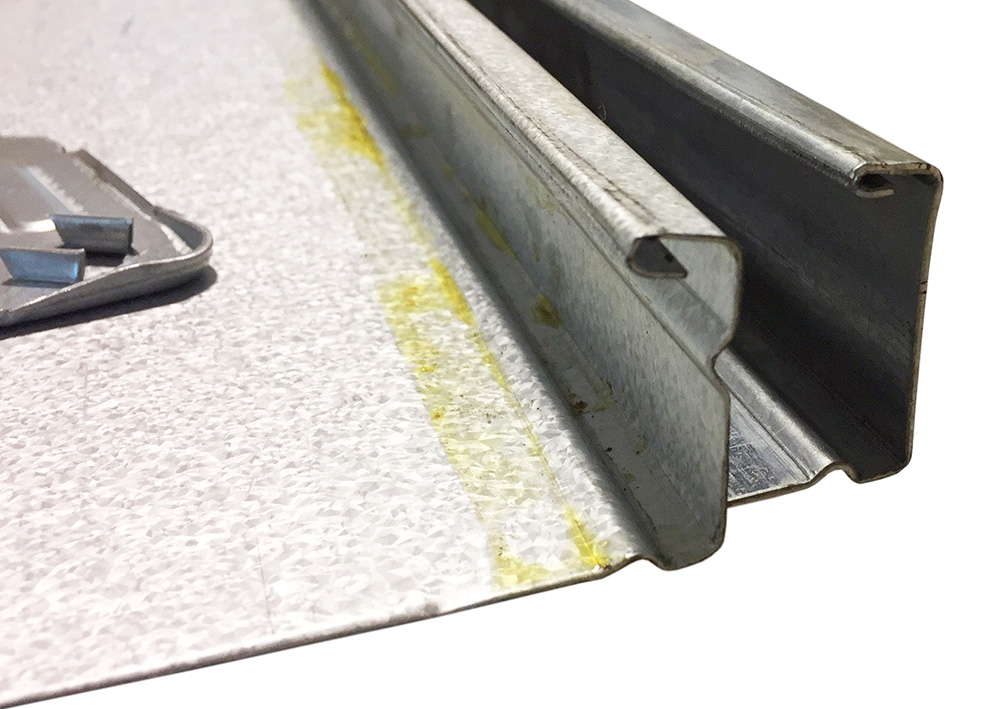

A TDF duct flange (Transverse Duct Flange) is an integral flange formed directly from the edge of a rectangular duct. Instead of attaching a separate steel frame, the flange becomes part of the duct section itself, reducing material consumption and simplifying assembly.
TDF duct systems are widely used in commercial buildings, industrial facilities, hospitals, shopping centers, airports, and other HVAC projects requiring durable rectangular ductwork.
What Is a TDC Duct Flange?

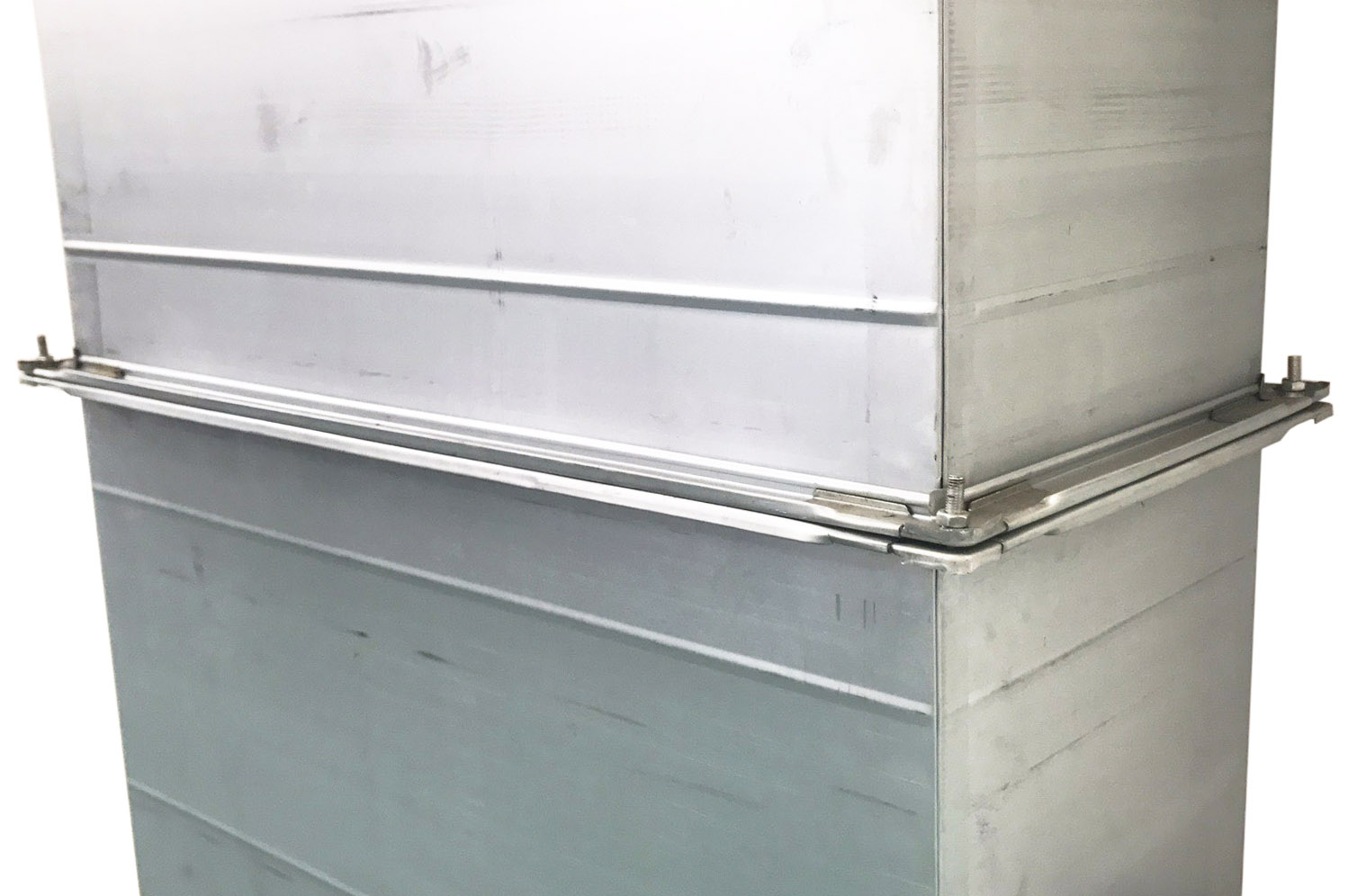

A TDC duct flange is another standardized flange profile used for rectangular duct connections. Like TDF, it provides a strong and airtight joint while allowing fast installation using corners, bolts, and gasket materials.
TDC duct systems are commonly selected for medium and large ventilation projects where production efficiency and installation speed are essential.

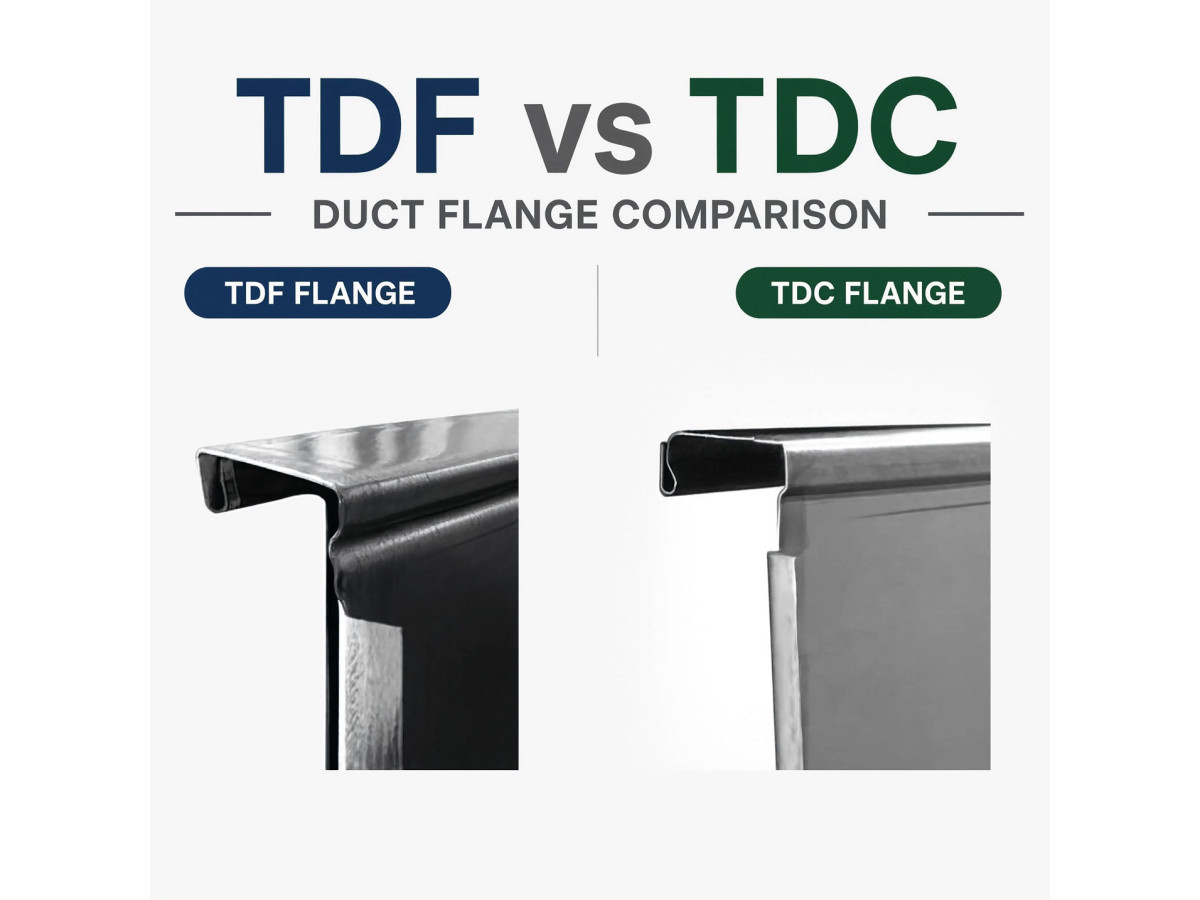

TDF vs TDC – What's the Difference?
Both systems serve the same purpose—connecting rectangular duct sections quickly and securely. The primary difference lies in the flange profile and regional manufacturing standards.
- TDF flange is formed directly on the duct edge.
- TDC flange uses a different standardized profile for rectangular ducts.
- Both systems reduce fabrication time.
- Both provide excellent structural strength.
- Both simplify duct installation.
- Both are widely accepted throughout the HVAC industry.
The best choice depends on your production standards, customer requirements, and regional specifications.
TDF vs TDC Duct Flanges Comparison
| Feature | TDF Flange | TDC Flange |
|---|---|---|
| Application | Rectangular HVAC ductwork | Rectangular HVAC ductwork |
| Flange Design | Integral flange formed directly on the duct edge | Standardized flange profile for rectangular ducts |
| Assembly Method | Corner pieces, bolts and gasket | Corner pieces, bolts and gasket |
| Production Speed | High | High |
| Structural Strength | Excellent | Excellent |
| Air Tightness | Excellent | Excellent |
| Typical Applications | Commercial and industrial HVAC systems | Commercial and industrial HVAC systems |
| Compatible Materials | Galvanized steel, stainless steel, aluminum | Galvanized steel, stainless steel, aluminum |
| Machine Required | TDF Flange Forming Machine | TDC Flange Forming Machine |
Applications of TDF and TDC Duct Systems
TDF and TDC ductwork is widely used for manufacturing:
- Commercial HVAC systems
- Industrial ventilation
- Air handling systems
- Dust collection systems
- Exhaust ventilation
- Clean room ventilation
- Food processing facilities
- Warehouses and factories
- Office buildings
- Shopping malls
- Hospitals
- Airports
TDF & TDC Flange Forming Machines
Stangroup manufactures industrial flange forming machines engineered for accurate production of both TDF and TDC duct profiles. Our machines provide stable forming quality, high productivity, and easy operation for manufacturers of rectangular ductwork.
Key advantages include:
- High-precision flange forming
- Heavy-duty industrial construction
- Continuous production capability
- Simple machine setup
- Low maintenance requirements
- Long service life
- Factory-direct pricing
- Custom roll tooling available
Compatible Materials
Our TDF and TDC flange forming machines process a wide range of sheet metals, including:
- Galvanized steel
- Stainless steel
- Aluminum
- PPGI
- Cold rolled steel
Material thickness and machine configuration can be customized to match your production requirements.
Why Choose Stangroup?
- Professional manufacturer of duct fabrication equipment
- Factory-direct pricing
- Reliable industrial components
- Standard and custom machine configurations
- Expert technical support
- Worldwide shipping
- Fast spare parts availability
- Long-term manufacturing experience
Request a Quote
Looking for a reliable TDF or TDC flange forming machine for rectangular duct manufacturing?
Contact Stangroup today for factory-direct pricing, technical consultation, and a customized solution for your production line. Our specialists will help you select the right machine based on your duct sizes, material specifications, and production capacity.
Frequently Asked Questions
What is a TDF duct flange?
A TDF (Transverse Duct Flange) is an integral flange formed directly on the edge of a rectangular duct. It eliminates the need for separate flange frames, reducing fabrication time and material costs.
What is a TDC duct flange?
A TDC duct flange is a standardized flange profile used for connecting rectangular duct sections. It provides a strong, accurate, and airtight joint for commercial and industrial HVAC systems.
What is the difference between TDF and TDC?
The main difference is the flange profile and the manufacturing standard. Both systems provide fast assembly, excellent strength, and reliable sealing for rectangular ductwork.
Can one machine produce both TDF and TDC flanges?
Most flange forming machines are designed specifically for either TDF or TDC profiles. Some production lines can be configured with different roll sets or dedicated machines depending on manufacturing requirements.
What materials can TDF and TDC flange machines process?
Most machines process galvanized steel, stainless steel, aluminum, PPGI, and other sheet metals commonly used for rectangular duct manufacturing.
What sheet thickness can the machines handle?
The supported material thickness depends on the machine model. Stangroup offers standard and customized configurations for different production requirements.
Are custom flange sizes available?
Yes. Custom tooling and roll sets can be manufactured for specific duct sizes and production standards.
Which industries use TDF and TDC duct systems?
TDF and TDC duct systems are widely used in commercial buildings, industrial facilities, hospitals, shopping malls, airports, warehouses, factories, and other HVAC applications.
Why choose a TDF or TDC flange forming machine?
These machines improve production efficiency, produce consistent flange profiles, reduce labor costs, and help manufacturers achieve high-quality rectangular duct fabrication.
Does Stangroup provide worldwide shipping?
Yes. Stangroup supplies TDF and TDC flange forming machines worldwide, offering factory-direct pricing, technical support, spare parts, and customized manufacturing solutions.
