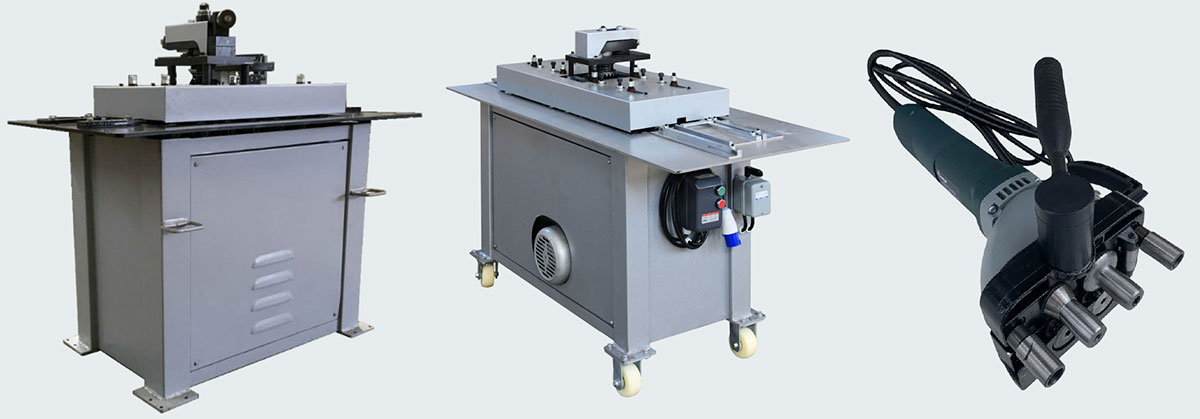

Pittsburgh Lockformer and Seamer machines are essential equipment in HVAC duct manufacturing and sheet metal fabrication. They are used to form, connect, and finish sheet metal ducts with high precision and speed. Below are three key machines used in modern HVAC production: a multifunction 4-in-1 Lockformer, a standard Pittsburgh Lockformer, and a portable Pittsburgh Lock Seamer.
1. 4-in-1 Pittsburgh Lockformer Machine (S-Cleat, C-Drive & Flanger Attachment)
The 4-in-1 Pittsburgh Lockformer Machine is a multifunction HVAC sheet metal forming system designed to replace several individual machines. It performs S-cleat, C-drive (drive cleat), Pittsburgh lock, seam lock, and flanging operations in one compact unit.
Key Functions

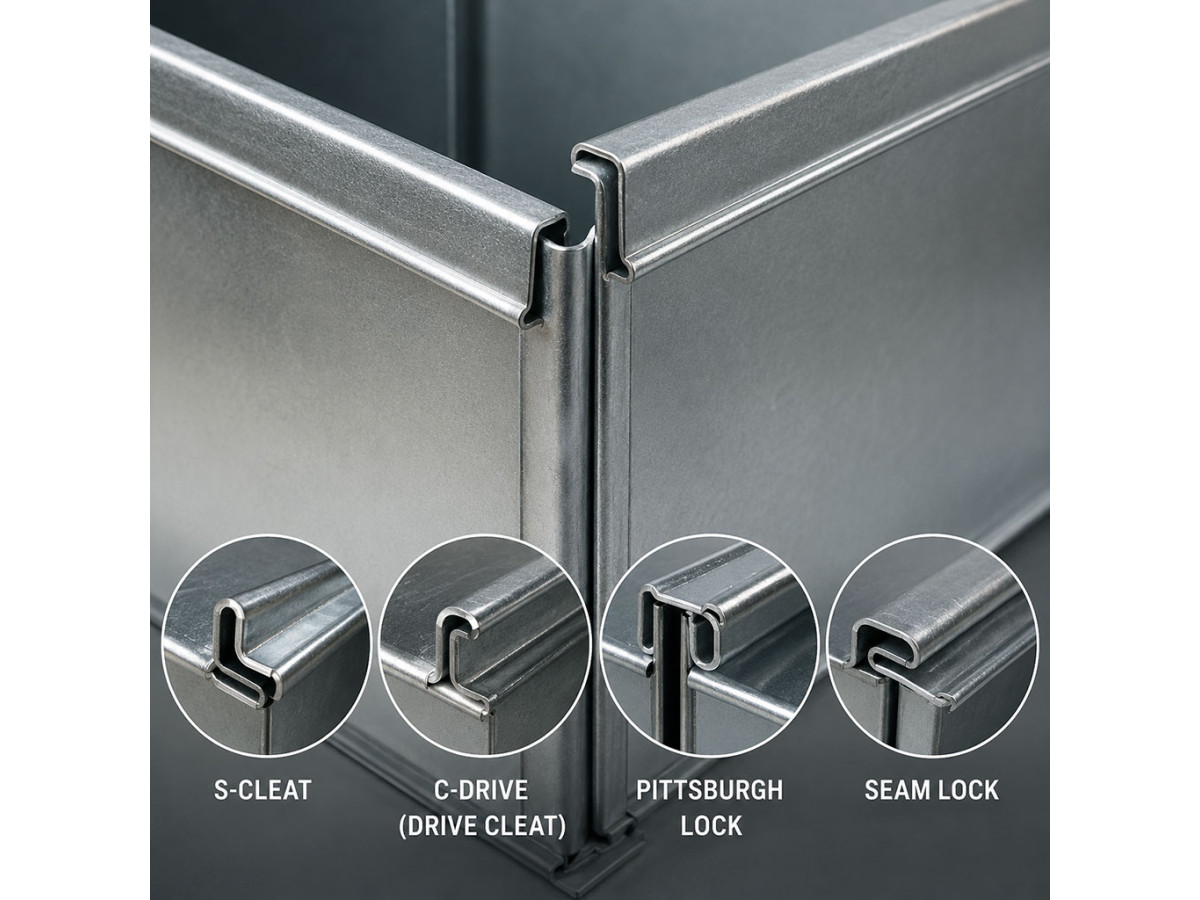

- S-cleat connection profiles
- C-drive / drive cleat forming
- Pittsburgh lock forming
- Seam lock for round ducts
- Flanger for elbows and fittings
Technical Specifications
- Material range: 18–26 gauge low carbon steel
- Speed: up to 36 ft/min
- Motor: 110V / 2.2 kW
Price
$5,500
ROI (Return on Investment)
ROI is typically achieved within 4–8 months due to reduced equipment cost, fewer machines required, and higher production efficiency.
Advantages
- All-in-one multifunction system
- Saves production space and labor costs
- High output and stable forming quality
- Ideal for continuous HVAC production
2. Pittsburgh Lockformer Machine
The Pittsburgh Lockformer Machine is a dedicated sheet metal forming machine used to create Pittsburgh lock seams for HVAC duct systems. It is widely used in rectangular duct production.
Key Functions
- Pittsburgh lock forming
- Optional seam and hem profiles depending on configuration
Technical Specifications
- Material range: 22–26 gauge low carbon / galvanized steel
- Speed: up to 36 ft/min
Price
$3250
ROI (Return on Investment)
ROI is usually achieved within 6–12 months thanks to increased production speed, reduced manual labor, and improved accuracy.
Advantages
- High precision forming of Pittsburgh locks
- Stable and reliable production performance
- Easy operation with low maintenance
- Essential for HVAC duct manufacturing
3. Portable Electric Pittsburgh Lock Seamer (Seam Closer)
The Portable Pittsburgh Lock Seamer is an electric machine designed to close pre-formed Pittsburgh seams on sheet metal. It ensures tight, smooth, and durable duct connections.
Key Functions
- Closing Pittsburgh seams
- Suitable for straight and radial seams
Technical Specifications
- Material thickness: up to 20 gauge
- Speed: up to 30–40 ft/min
- Power: 110V electric
Price
$790
ROI (Return on Investment)
ROI is typically achieved within 1–3 months due to significant labor time reduction (up to 90%) and fast on-site installation capability.
Advantages
- Portable and easy to use on-site
- Very fast seam closing process
- No special skills required
- Consistent and smooth seam quality
Comparison Table
| Feature | 4-in-1 Lockformer Machine | Pittsburgh Lockformer | Pittsburgh Seamer |
|---|---|---|---|
| Main Function | Multi-function forming (S-cleat, C-drive, flanging, locks) | Forms Pittsburgh lock profiles | Closes and locks pre-formed seams |
| Material Range | 18–26 gauge | 22–26 gauge | Up to 20 gauge |
| Speed | Up to 36 ft/min | Up to 36 ft/min | 30–40 ft/min |
| Price | $5,500 | $3250 | $790 |
| ROI | 4–8 months | 6–12 months | 1–3 months |
| Best Use | Full HVAC production lines | Sheet metal forming workshops | On-site HVAC installation |
| Mobility | Stationary industrial machine | Stationary machine | Portable handheld machine |
Conclusion
These three machines represent a complete HVAC duct manufacturing workflow. The 4-in-1 Lockformer provides multifunction forming, the Pittsburgh Lockformer handles precise profile creation, and the Seamer completes final seam locking. Together, they significantly increase productivity, reduce costs, and improve efficiency in sheet metal fabrication.
