If you are looking for a Downspout Elbow Machine for Sale, the right choice depends on more than price. Gutter contractors need to consider elbow sizes, materials, production speed, machine weight, available power, and whether the equipment will be used in a shop or as part of a mobile gutter operation.
Manual and electric machines can both produce consistent round and rectangular downspout elbows, but they are designed for different working conditions. The MEL Manual Downspout Elbow Machine and the LEL Portable Electric Downspout Elbow Machine provide two different approaches to downspout elbow production.
This guide explains the main differences and helps gutter contractors determine which type of downspout elbow machine is better suited to their production needs.
What Is a Downspout Elbow Machine?

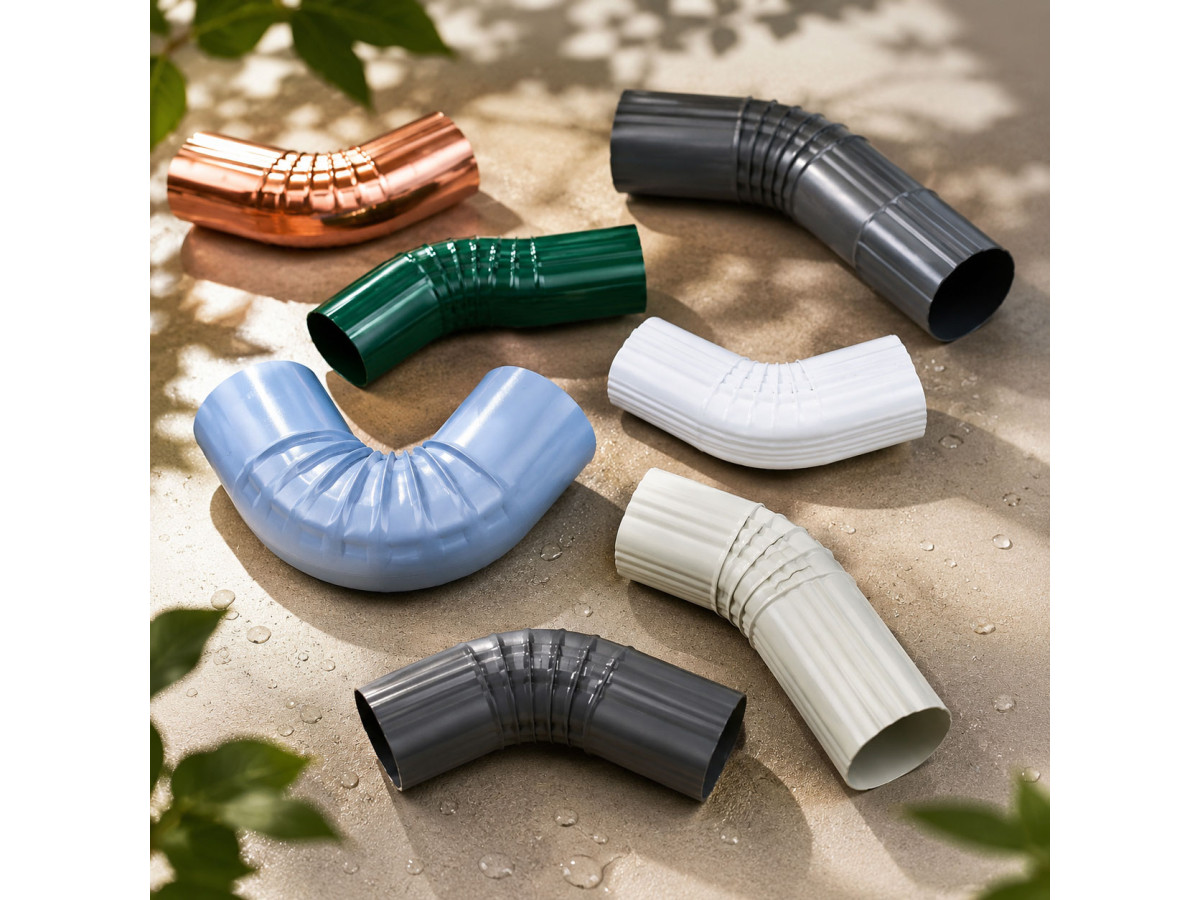

A downspout elbow machine is designed to form elbows used in gutter and rainwater drainage systems. These components allow downspouts to change direction while maintaining a consistent connection between sections of the drainage system.
Depending on the machine and tooling, elbows can be produced in rectangular and round profiles. Common sizes include 2×3 and 3×4 rectangular downspouts as well as 2-inch, 3-inch and 4-inch round profiles.
For gutter contractors, producing elbows in-house can provide greater flexibility when working with different downspout configurations and custom installation requirements.
Why Gutter Contractors Use Elbow Machines
Downspout elbows are required for many residential and commercial gutter installations. Contractors may need different angles, sizes and configurations depending on the building and the layout of the drainage system.
A dedicated elbow machine can help contractors:
- Produce round and rectangular downspout elbows
- Work with commonly used downspout sizes
- Produce components as part of a gutter installation workflow
- Reduce dependence on pre-made elbows
- Handle custom downspout requirements
- Manufacture elbows in a shop or mobile production environment
What to Look for When Buying a Downspout Elbow Machine
Not every downspout elbow machine for sale is designed for the same application. Before purchasing equipment, consider the following factors.
Elbow Sizes and Profiles
The first question is which downspout sizes you need to produce.
A machine may support rectangular profiles such as:
- 2×3
- 3×4
Round profiles may include:
- 2 inches
- 3 inches
- 4 inches
If your business works with several sizes, check whether the machine uses interchangeable dies and which dies are included or available separately.
Round and Rectangular Elbow Production
Some contractors work primarily with rectangular downspouts, while others need both rectangular and round elbows.
A machine capable of producing both profiles provides greater flexibility and may be more useful for contractors serving different types of customers.
Production Speed
Production speed is another important factor when comparing machines.
The MEL and LEL machines can produce an elbow in approximately 10 seconds under the specified operating conditions. Actual production capacity can vary according to pipe size, material, operator workflow and other production factors.
The specified production capacity for these machines is approximately 2–6 pieces per minute depending on pipe size.
Power Requirements
Power requirements are particularly important for mobile gutter contractors.
A manual machine does not require an electric motor, while an electric machine requires a suitable power source. The LEL uses a 1.5 HP motor and operates on 110 VAC, making it suitable for applications where standard U.S. electrical power is available.
Machine Size and Weight
Machine dimensions and weight can make a significant difference when equipment needs to be moved between locations.
A lightweight manual machine can be easier to transport and position. An electric machine may be larger and heavier but can provide powered operation and additional capabilities.
Manual vs. Electric Downspout Elbow Machines
One of the most important decisions is choosing between a manual and an electric machine.
A manual machine can be a practical option for contractors who prioritize simplicity, low weight and a lower initial investment.
An electric machine may be more appropriate for contractors who want powered operation and are building a more comprehensive mobile or shop-based production setup.
The best option depends on the contractor's production volume, available workspace, power supply and budget.

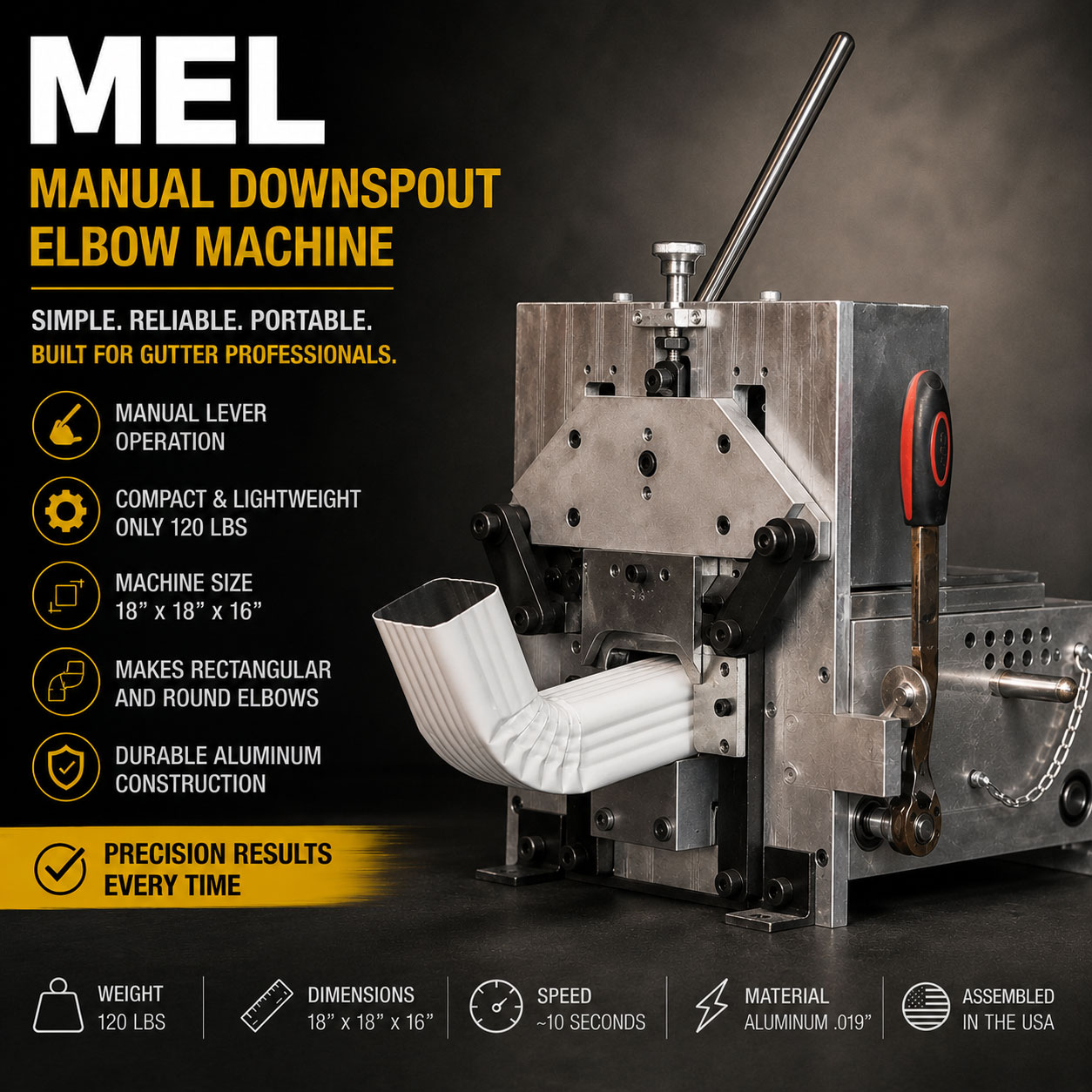

MEL Manual Downspout Elbow Machine
The MEL Manual Downspout Elbow Machine is designed to produce square and round elbows from seamless or welded ducts. It uses manual lever operation and is built around a compact aluminum frame.
The MEL is particularly suitable for contractors who want a straightforward machine that is easy to operate, transport and maintain.
MEL Technical Specifications
- Operation: Manual lever operation
- Crimper: Rack and gear with lever
- Advance: Chain drive with lever
- Machine size: 18 × 18 × 16 inches high
- Weight: 120 lbs
- Construction: Aluminum frame
- Speed: Approximately 10 seconds
- Production capacity: Approximately 2–6 pieces per minute depending on pipe size
- Material: Aluminum .019"
MEL Standard Die Sizes
Rectangular:
- 2×3
- 3×4
Round:
- 2 inches
- 3 inches
The MEL is assembled in the USA and is designed for easy operation and maintenance.
Who Is the MEL Best For?
The MEL can be a good choice for contractors who prioritize:
- Manual operation
- Compact equipment
- Low machine weight
- Simple operation and maintenance
- A lower initial investment
- Easy transportation

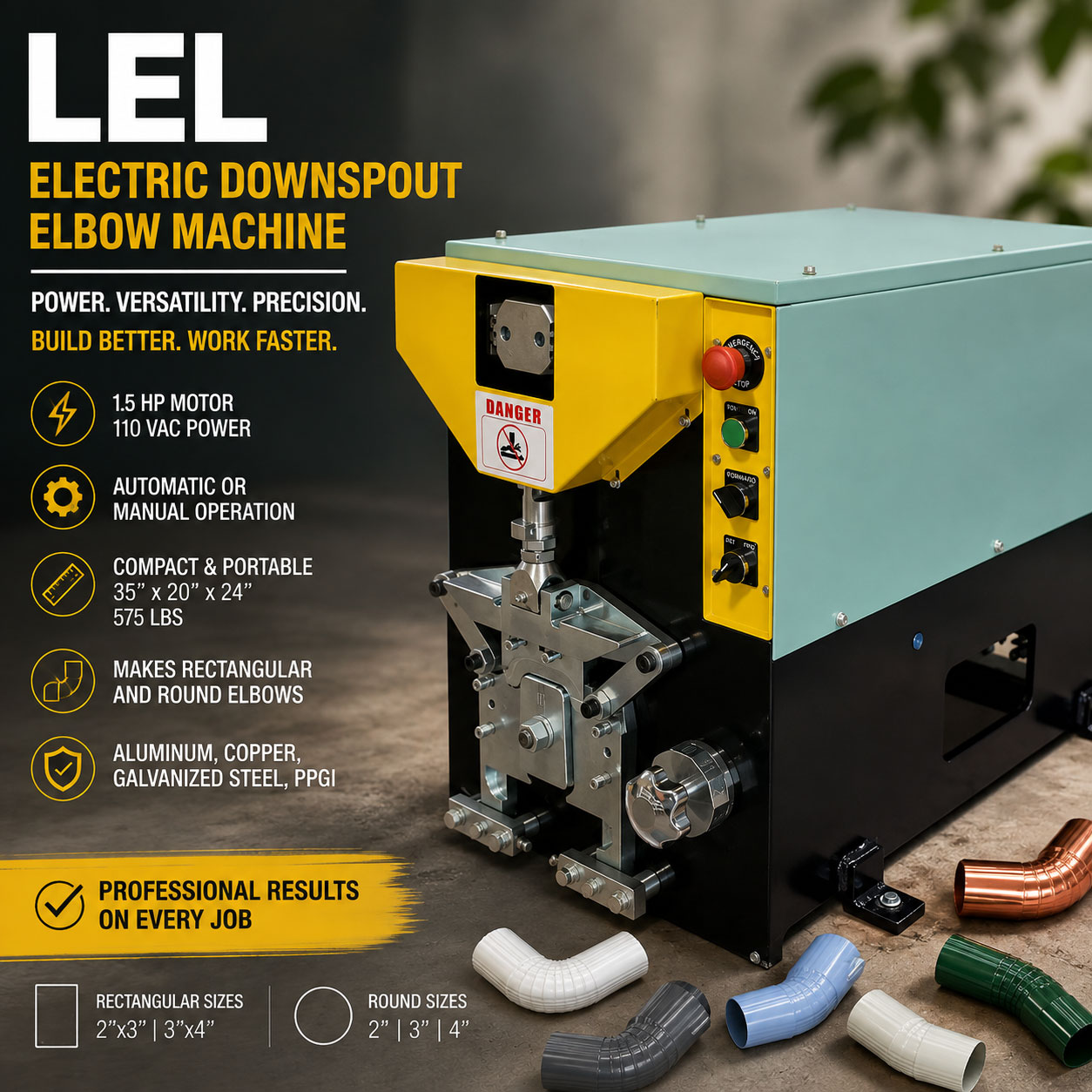

LEL Portable Electric Downspout Elbow Machine
The LEL Portable Electric Downspout Elbow Machine is designed for contractors who want powered elbow production for gutter and downspout systems.
The LEL combines electric operation with interchangeable dies for both rectangular and round elbows. It can be used in shop production or as part of a mobile gutter production setup.
LEL Technical Specifications
- Model: LEL
- Motor: 1.5 HP
- Power: 110 VAC
- Machine size: 35 × 20 × 24 inches
- Weight: 575 lbs
- Speed: Approximately 10 seconds per 75° elbow
- Production capacity: Approximately 2–6 pieces per minute depending on pipe size
- Operation: Automatic or manual
- Front-mounted crimper
- Reverse switch
- Direct-drive double-cam system
LEL Standard Die Sizes
Rectangular:
- 2×3
- 3×4
Round:
- 2 inches
- 3 inches
- 4 inches
The LEL is specified for use with aluminum, copper, galvanized steel and PPGI according to the applicable machine specifications.
MEL vs. LEL: Which Downspout Elbow Machine Is Right for You?
| Feature | MEL Manual | LEL Electric |
|---|---|---|
| Operation | Manual lever | Automatic or manual |
| Weight | 120 lbs | 575 lbs |
| Machine size | 18 × 18 × 16 in. | 35 × 20 × 24 in. |
| Drive | Manual | Electric |
| Motor | — | 1.5 HP |
| Power | Manual | 110 VAC |
| Production | 2–6 pcs/min* | 2–6 pcs/min* |
| Rectangular sizes | 2×3, 3×4 | 2×3, 3×4 |
| Round sizes | 2", 3" | 2", 3", 4" |
| Aluminum | .019" | According to machine specifications |
| Copper | — | According to machine specifications |
| Galvanized steel | — | According to machine specifications |
| PPGI | — | According to machine specifications |
*Production capacity depends on pipe size and operating conditions.
Which Machine Is Better for a Mobile Gutter Contractor?
Mobile contractors should consider both machine weight and the type of production they need to perform.
The MEL weighs approximately 120 lbs and has a compact 18 × 18 × 16-inch footprint. Its manual operation means it does not require an electrical power source, which can be useful for contractors who prioritize simplicity and portability.
The LEL weighs approximately 575 lbs and is larger, but it provides electric operation with a 1.5 HP motor and 110 VAC power. Its automatic or manual operation and broader round-profile size range make it suitable for contractors looking for a more comprehensive powered production solution.
For mobile gutter operations, the choice should be based on the available transportation and workspace, production requirements and desired operating method.
Downspout Elbow Machine for Enclosed Trailer Gutter Production
For contractors who operate a mobile gutter business, machine size and weight are important factors when planning an enclosed trailer setup. The equipment needs to fit the available workspace while leaving enough room for safe operation, material handling and other gutter production equipment.
A portable downspout elbow machine can be used as part of a broader mobile gutter production workflow, allowing contractors to produce downspout components alongside gutter installation work.
What Materials Can a Downspout Elbow Machine Form?
Material compatibility is another important consideration when purchasing a machine.
The MEL is specified for aluminum material at .019".
The LEL is specified for use with:
- Aluminum
- Copper
- Galvanized steel
- PPGI
Before ordering a machine or additional dies, contractors should confirm the material thickness and profile requirements for their specific application.
How Fast Can a Downspout Elbow Machine Produce an Elbow?
Both the MEL and LEL are specified at approximately 10 seconds per elbow under their respective operating conditions.
The LEL specification identifies approximately 10 seconds for a 75° elbow.
The stated production capacity is approximately 2–6 pieces per minute depending on pipe size.
Actual production rates can vary based on the profile being produced, material, operator workflow and other conditions.
For contractors comparing machines, it is important to distinguish between the time required for an individual forming cycle and the actual sustained production rate.
How Much Does a Downspout Elbow Machine Cost?
The price of a downspout elbow machine for sale depends on the machine configuration and what is included with the equipment.
When comparing prices, look beyond the initial machine cost and consider:
- Number of dies included
- Additional die costs
- Manual vs. electric operation
- Material compatibility
- Production requirements
- Shipping
- Availability
- Delivery time
- Technical support
A manual machine such as the MEL may be attractive to contractors who want a simpler and lighter solution. An electric machine such as the LEL may justify a higher investment when powered operation and broader production capabilities are important.
Is a Downspout Elbow Machine Worth It for a Gutter Contractor?
For contractors who regularly install gutters and downspouts, an elbow machine can provide greater control over component production.
The investment may make particular sense when a contractor:
- Performs frequent gutter installations
- Uses several downspout sizes
- Needs both round and rectangular elbows
- Handles custom installation requirements
- Wants to produce elbows as part of a mobile operation
- Needs a dedicated solution for downspout component production
The right machine depends on the contractor's workload and business model. A lightweight manual machine may be sufficient for some operations, while others may benefit from electric production.
Which Downspout Elbow Machine Should You Buy?
Choose the MEL if you prioritize:
- Manual operation
- Low machine weight
- Compact dimensions
- Simple operation
- Easy maintenance
- No electrical power requirement
- Lower initial investment
Choose the LEL if you need:
- Electric operation
- 110 VAC power
- Automatic or manual operation
- 2×3 and 3×4 rectangular elbows
- 2", 3" and 4" round elbows
- Broader material compatibility
- A powered machine for mobile or shop production
The best choice depends on the sizes you produce, materials you use, production requirements, workspace and budget.
Frequently Asked Questions
What is a downspout elbow machine?
A downspout elbow machine is equipment designed to form round or rectangular elbows used in gutter and downspout systems. Depending on the machine and tooling, it can produce different elbow sizes and profiles.
What sizes can a downspout elbow machine produce?
The MEL supports 2×3 and 3×4 rectangular elbows and 2-inch and 3-inch round elbows. The LEL supports 2×3 and 3×4 rectangular elbows and 2-inch, 3-inch and 4-inch round elbows.
What is the difference between a manual and electric downspout elbow machine?
A manual machine such as the MEL uses lever operation and does not require an electric motor. The LEL uses a 1.5 HP electric motor and operates on 110 VAC, while also offering automatic or manual operation.
How fast does a downspout elbow machine work?
The MEL and LEL are specified at approximately 10 seconds per elbow under the applicable operating conditions. Production capacity can range from approximately 2–6 pieces per minute depending on pipe size and other factors.
Can downspout elbows be produced on-site?
Yes. Portable equipment can be incorporated into mobile gutter production workflows. The appropriate setup depends on machine dimensions, weight, transportation and available workspace.
What should I consider before buying a downspout elbow machine?
Consider the required elbow sizes, round or rectangular profiles, materials, production volume, machine weight, power requirements, die configuration, price, delivery and available technical support.
