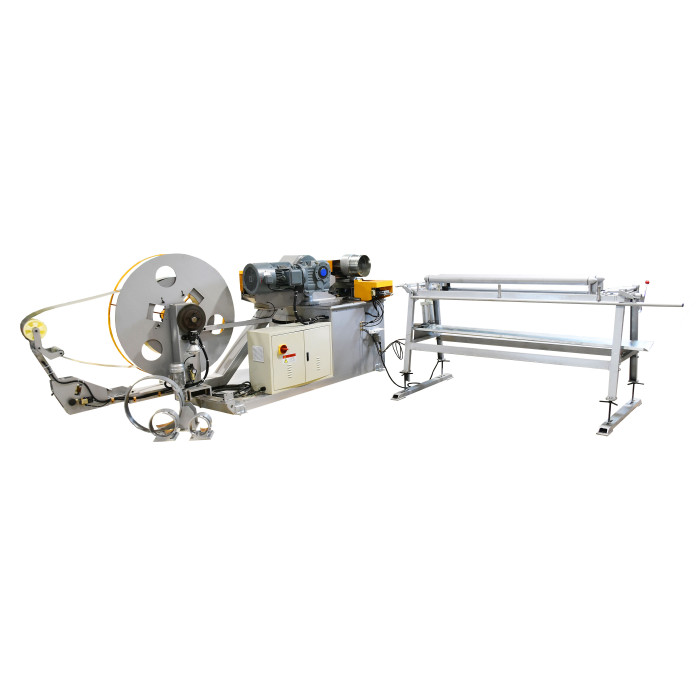

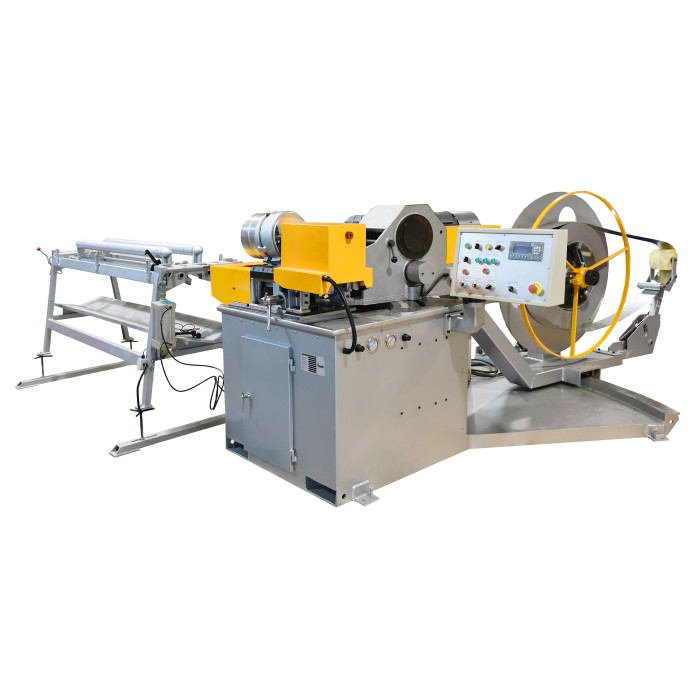

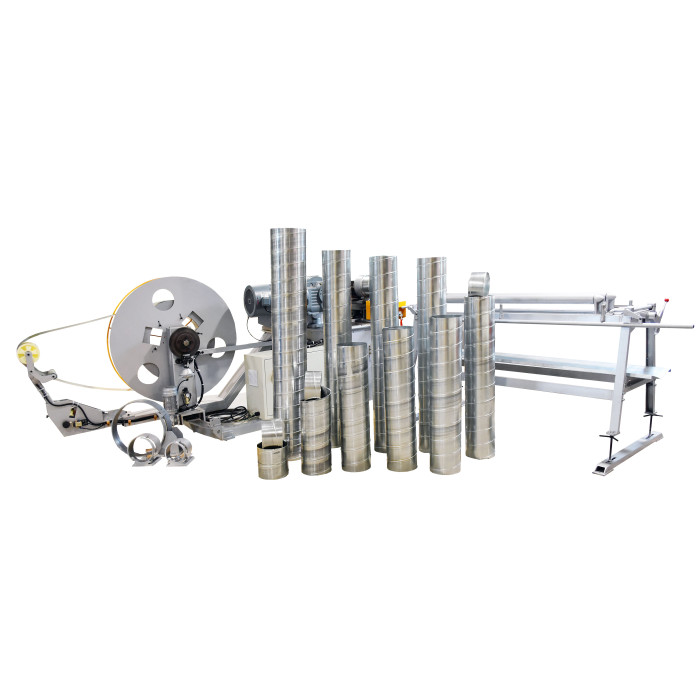

Industrial HVAC Spiral Tube Duct Forming Machine 1602

Industrial Spiral tube former TF1602

Diameter range 3" to 62"

Thickness of the material: PPGI 26 - 18 Gauge (0.4-1.2mm), Aluminum .016 - .040

Feeding Speed up to 150 fpm (60 m/min)

Motor power 11 kw

Net weight 6000lbs

Standard delivery set:

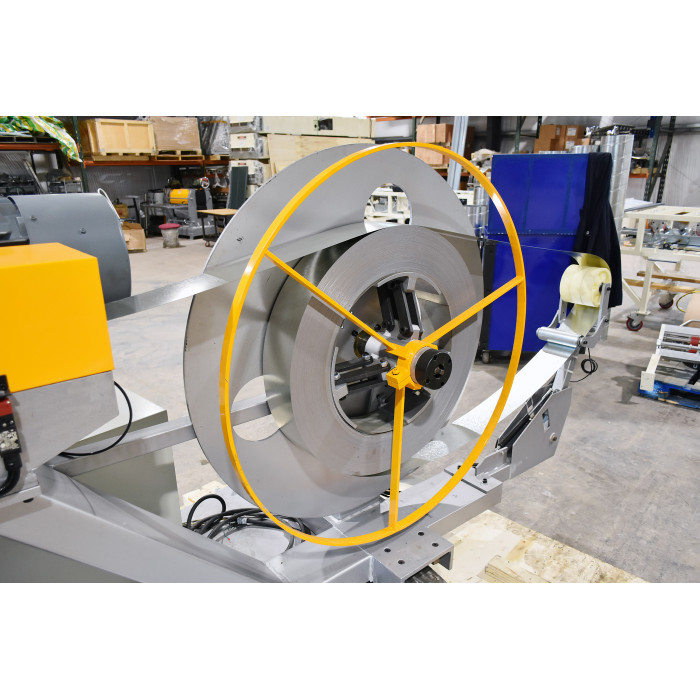

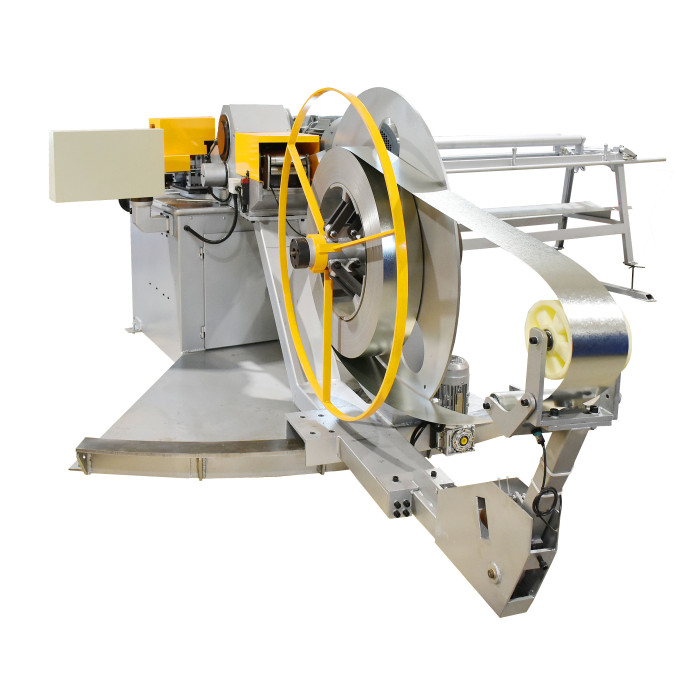

Expandable metal strip coil holder with brake

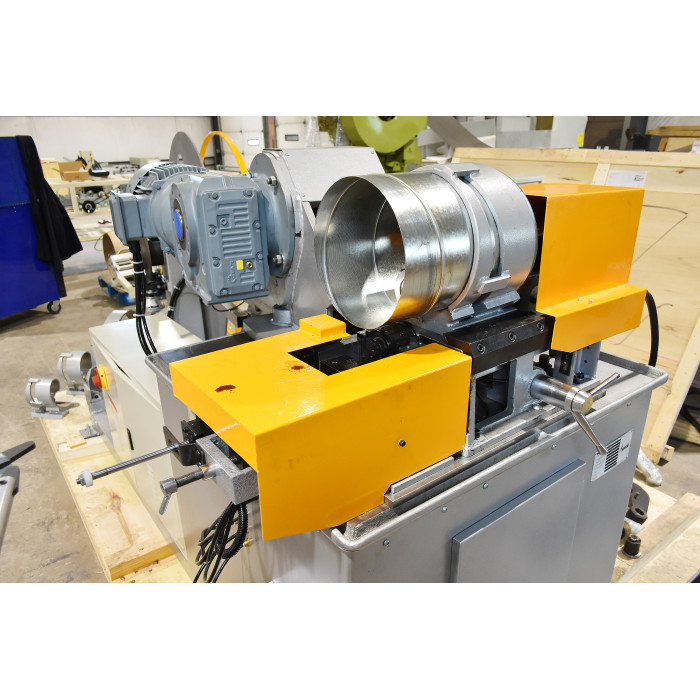

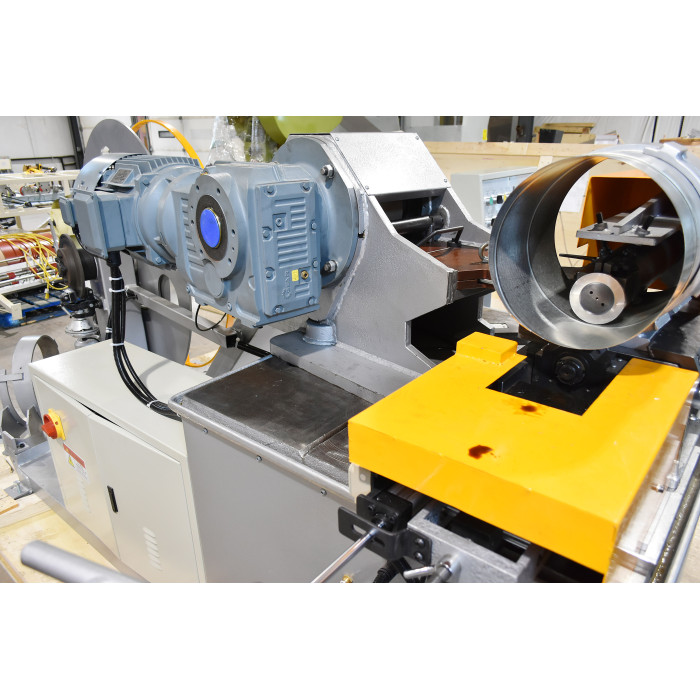

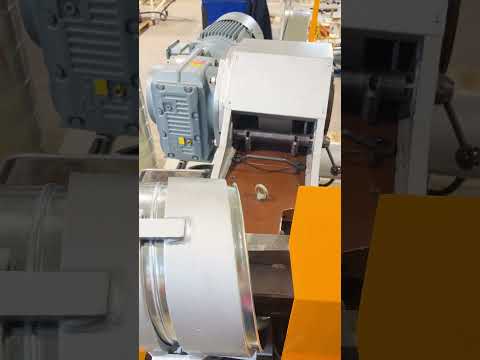

Tube-former with 3 sets of forming and cutting units

Circulating lubrication system

Disc blade cut off system

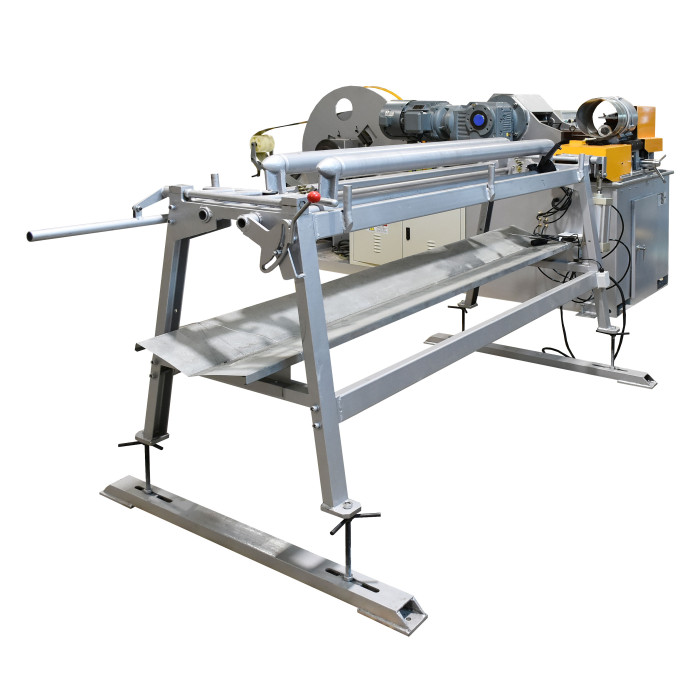

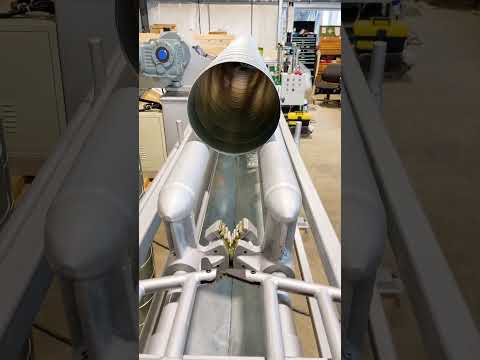

Automatic run out stacking table with pneumatic drive drop off system for ducts up to 20 feet length

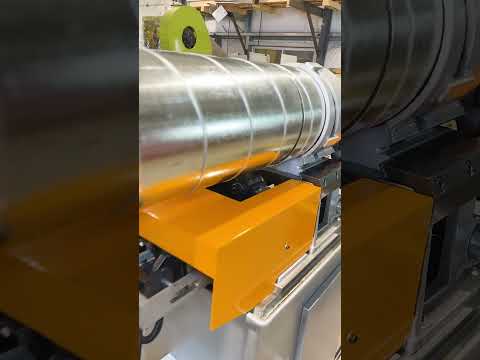

Machine made to run with fixed forming molds, to insure exact diameter size and stability without any deflections. The speed of forming is faster and could reach 180 feet per minute.

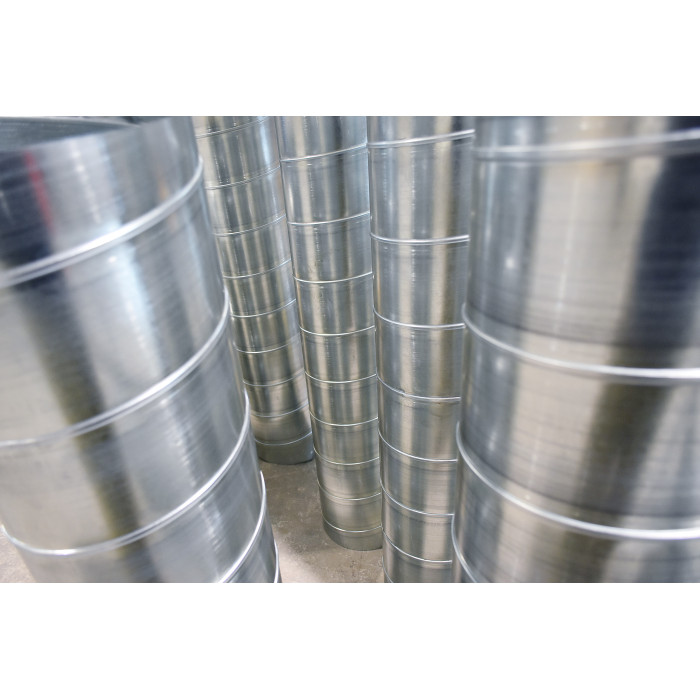

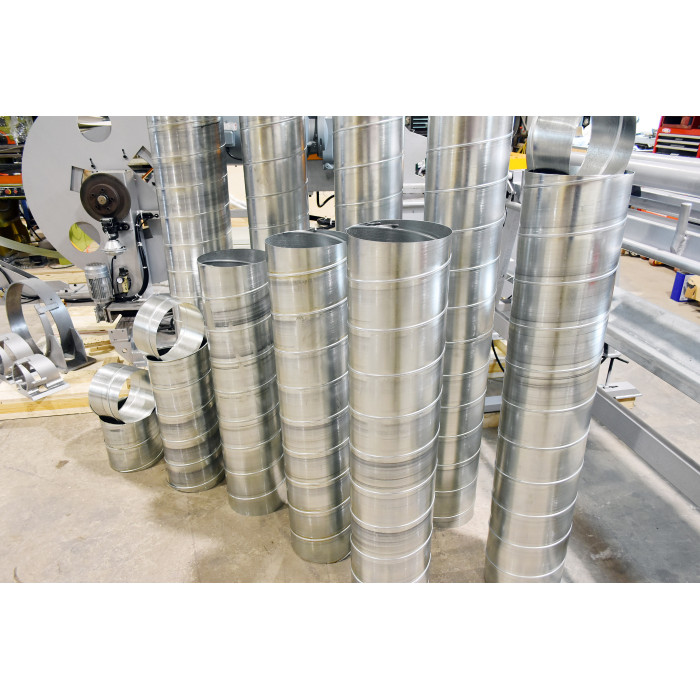

Lock seam designed for beast sealing and strength. We use round tendons method to make it look better.

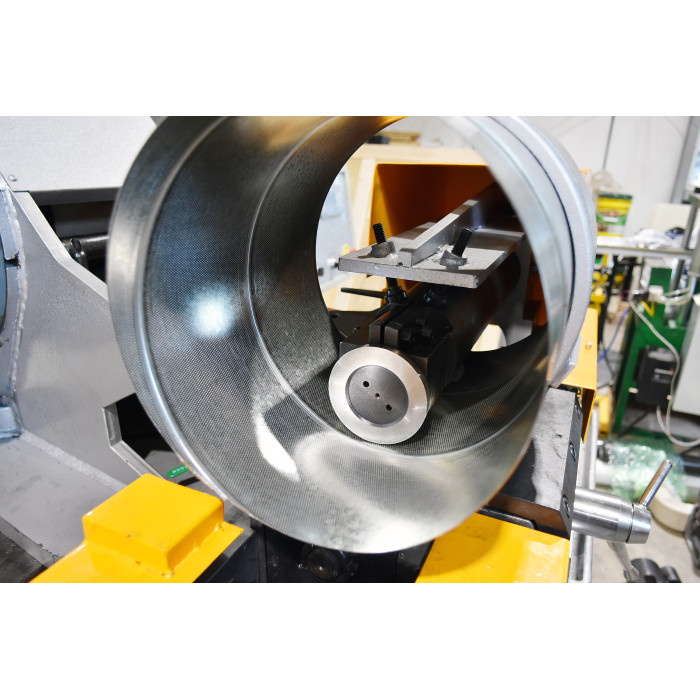

Roller slitter：provide quite and clean cut with no burrs

Lubrication system: machine equipped with continuous Tags: spiral, tubeformer, spiral tubeformer, duct, spiral duct, duct machine, spiral machine, tube forming, duct making, duct work, spiral dauct manufacture, spiro, formtek, ism, tormek, d-max, alfa, 1602, mestek, spiral tube machines, spiral duct machine, spiral machine,
