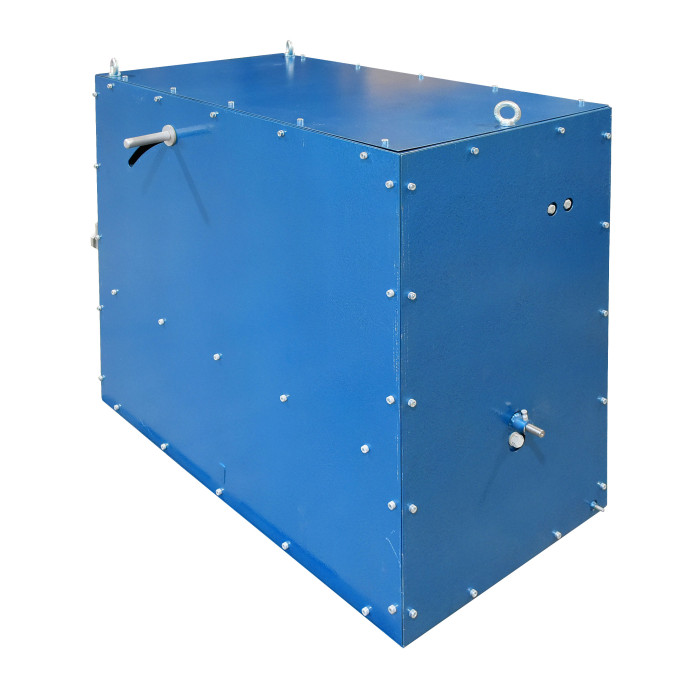

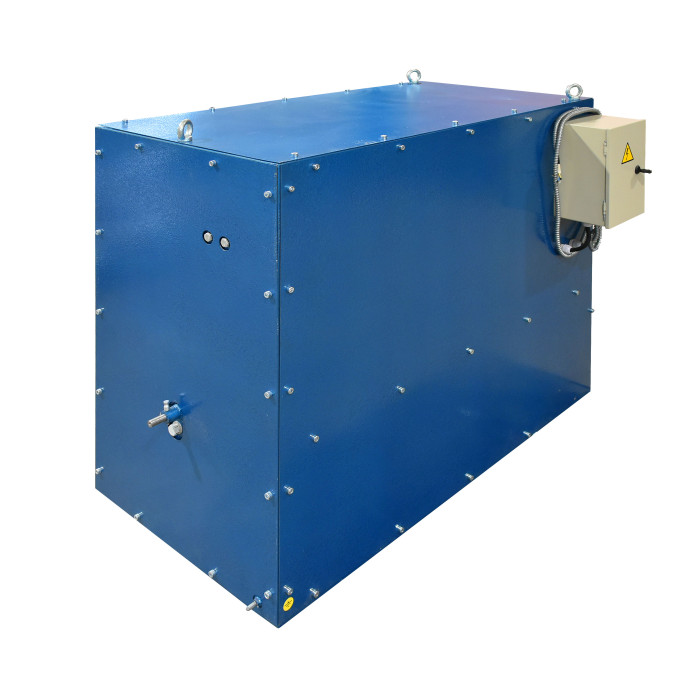

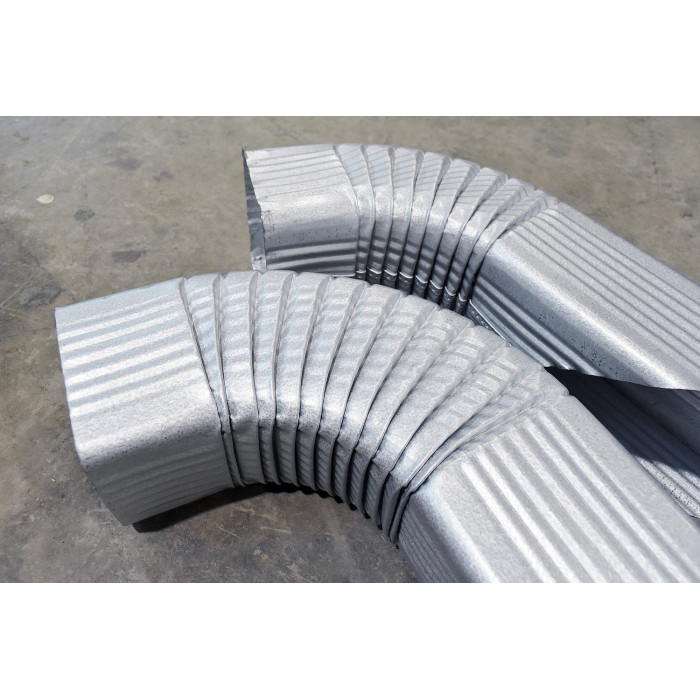

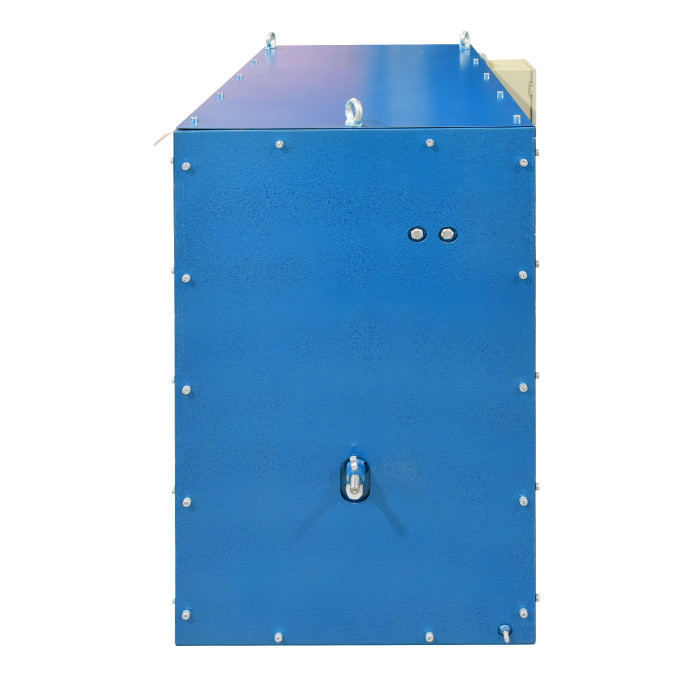

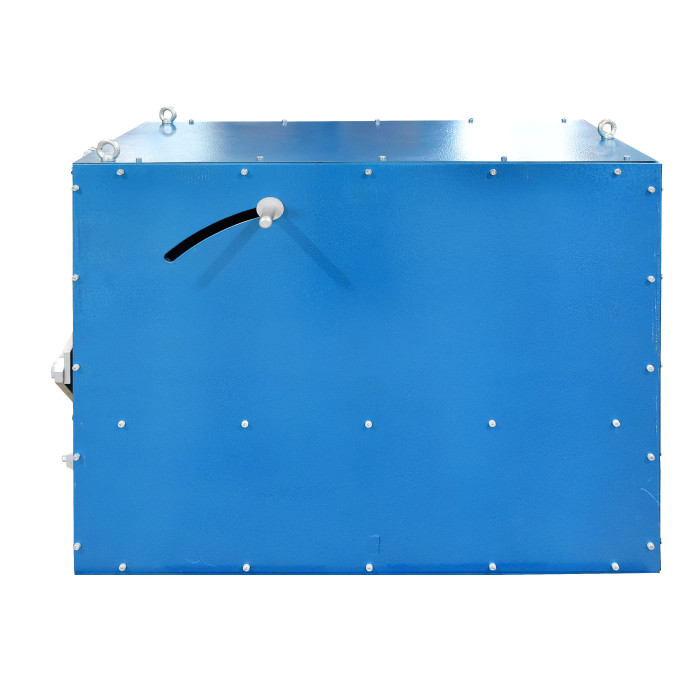

Industrial automatic elbow machine designed to produce square and round downspout and HVAC elbows with seamed and welded ducts.
Standard machine size range: rectangle 2x3 to 6x6, round 3" to 8"
Materials: machine operates with pipes made of aluminum, copper, galvanized steel, stainless steel, PPGI.
Final product widely used in downspout, chimney, exhaust and HVAC systems.
Productive capacity depends on size of the pipe and varies in range of 2 to 7 pc per minute.
Easy operation and high performance
Wide operational diameter range 3" - 24" (custom design)
Round and Square dies available

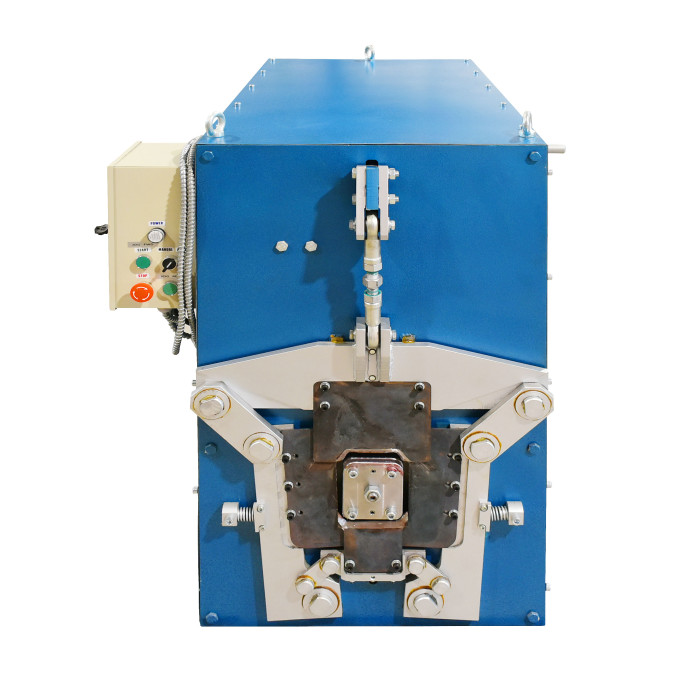

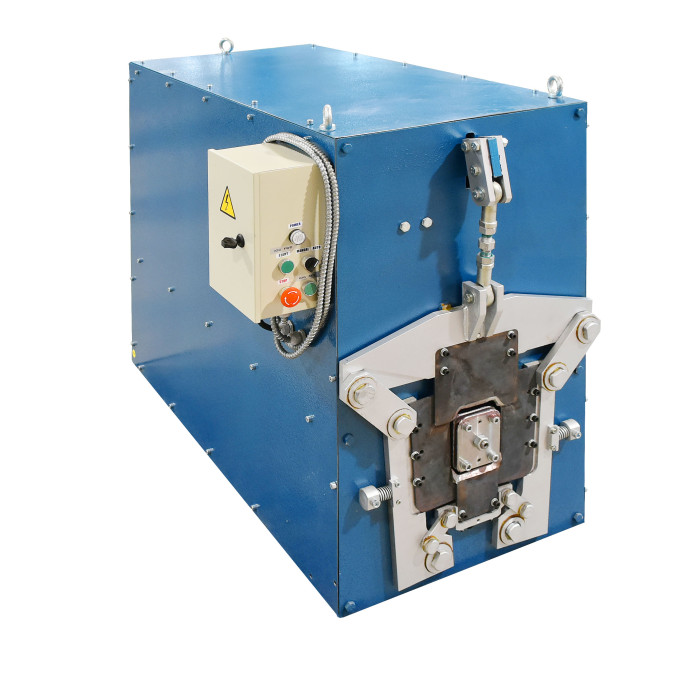

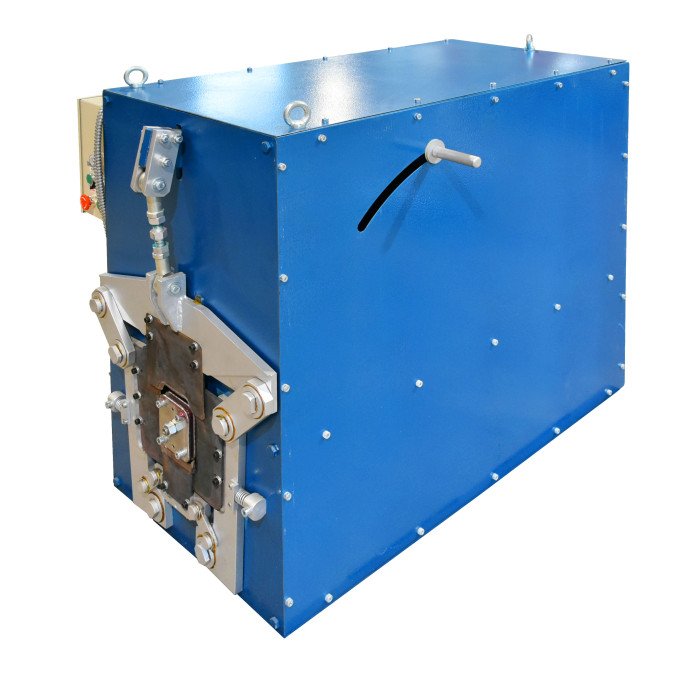

1. Control Panel
2. Set of dies
3. Angle adjustment (to set required quantity of the crimps).
4. Main motor reducer.
5. Rotary attachment on the side for the round ducts / edge crimping tool for square ducts.
