Max coil: weight 2000lbs, width 27", ID 18"

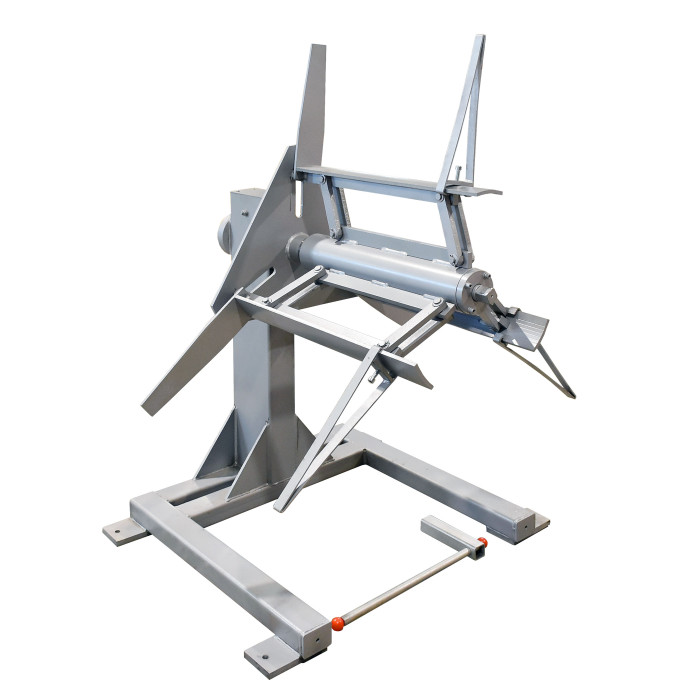

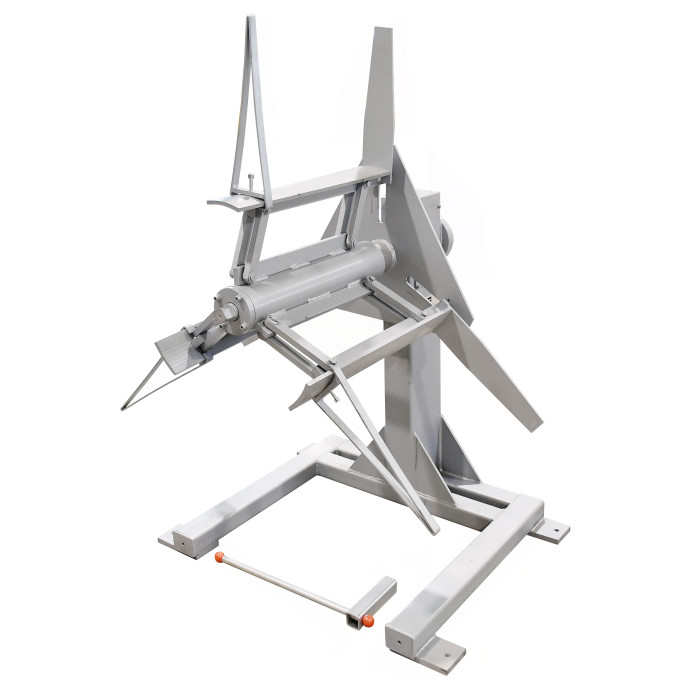

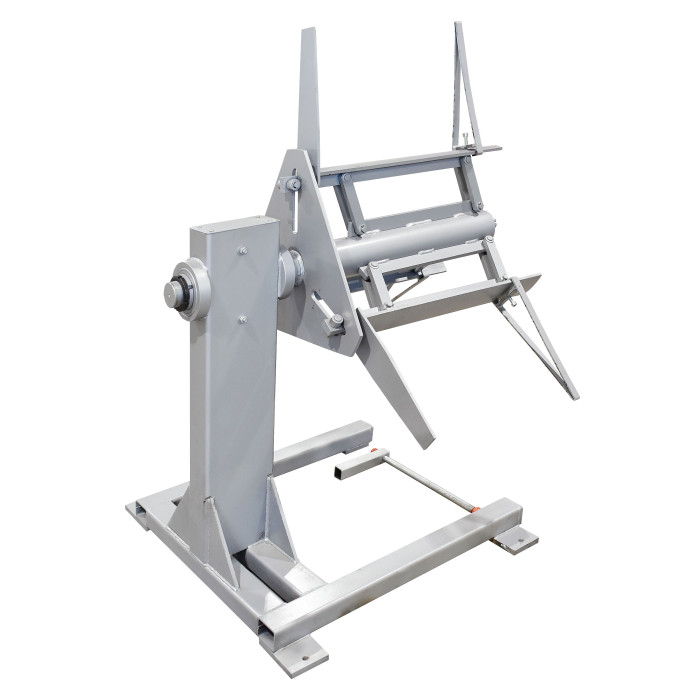

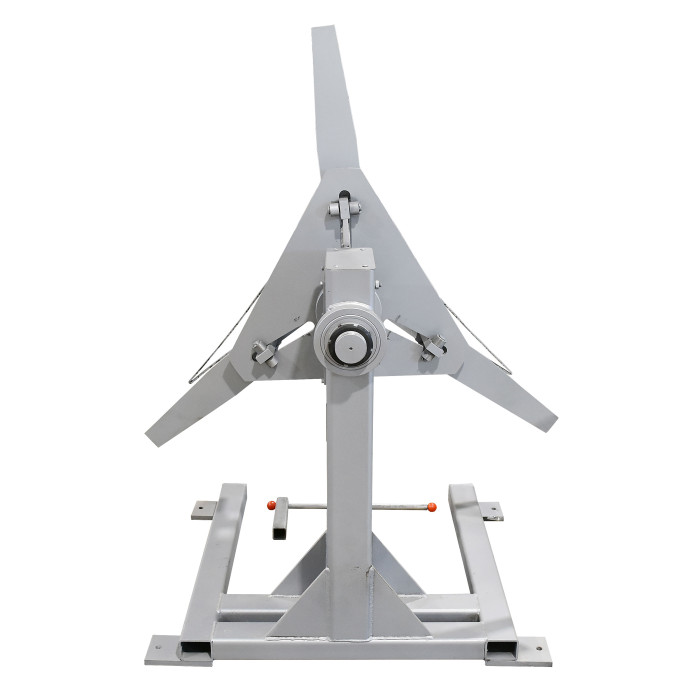

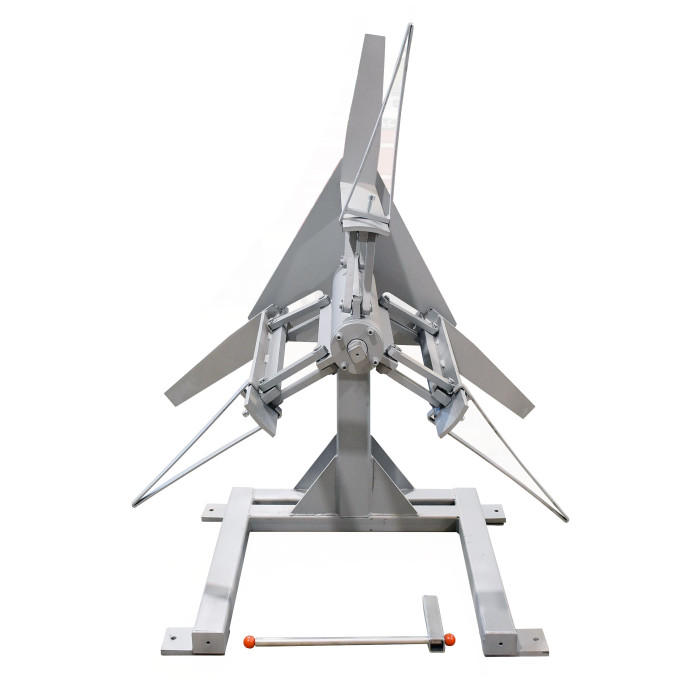

Manual Decoiler D200 made to hold a coil of material and spin it to unwind sheet materials from the coil.
Maximum weight of the coil 2000 lbs.
Maximum coil width up to 27 inches.
Decoiler can be used to uncoil metal, plastic, paper and other materials.
Self Centering coil holder is easy to install and fix inside of the metal coil.
Customization of the ID - OD range;
Installation of the motor, gear box, belt drive and automatic start/stop function with limit switch.
To install the coil with material on the decoiler you must do as follow:
1. Use hand wrench to shrink the reel few inches less than your coil inside diameter ID
2. Set the coil on the reel
3. Expand self centering coil reel with a hand wrench, to fix coil on the reel;
4. Set limiters on the reel paws
5. Adjust brake
Once you pull out age of the material from the coil - coil starts spinning. For convenient operation and safety decoiler equipped with a friction brake, expanding wrench, and limiters for the reel paws.
Safety requirements: maximum weight for the full width coil is 1500lb.
|Range of the Inside coil diameter|| |
13" - 18"
|Maximum coil weight||2000 lbs |
|Maximum coil width||26.5" |
|Size, LхWхH*||48x40x54 inches|
