The Role of Duct Collars in Industrial Ventilation Systems (USA HVAC Industry)

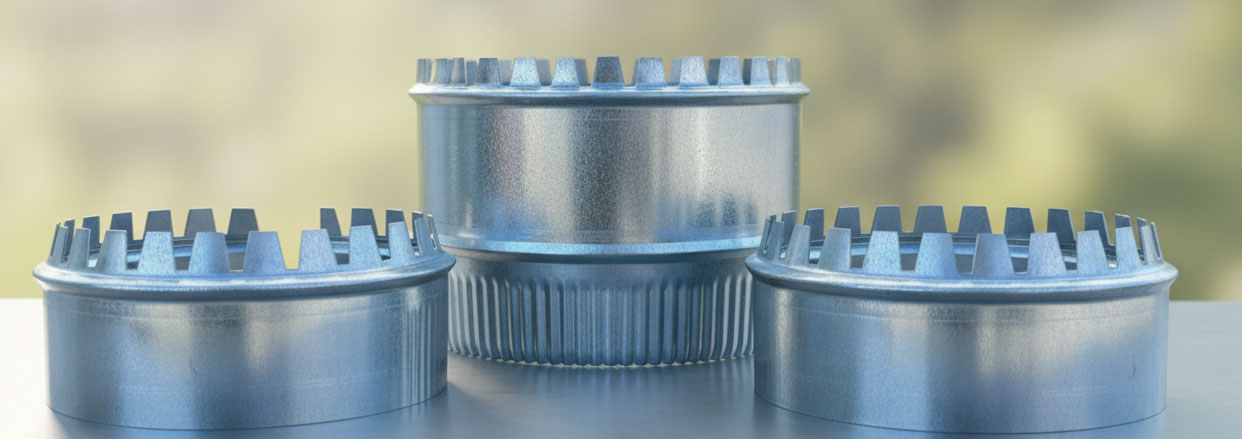

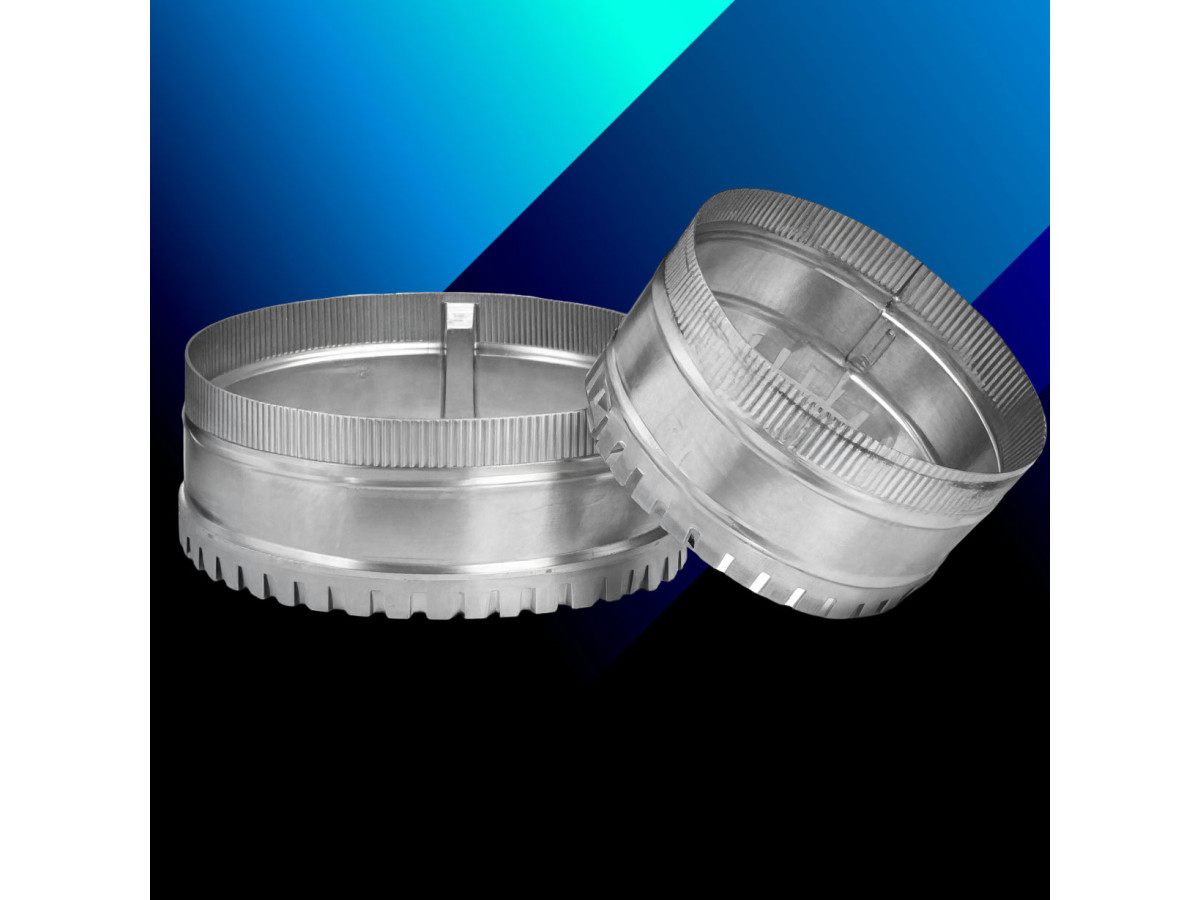

In U.S. HVAC fabrication, duct collars are precision sheet metal components used to form branch takeoffs on spiral duct systems. Their performance directly affects system leakage, airflow stability, and installation efficiency in industrial ventilation networks.

These components are widely used in manufacturing plants, commercial buildings, data centers, and warehouse HVAC systems where modular duct construction is standard.

Engineering Specifications (Production Standards)

• Material thickness: 26 GA (0.45 mm), 24 GA (0.60 mm), 22 GA (0.75 mm)
• Diameter range: 80–400 mm standard (up to 500 mm industrial)
• Diameter tolerance: ±0.8 mm
• Roundness deviation: ≤1.2%
• Bead height: 2.5–4.0 mm
• Crimp overlap: 6–10 mm
• Coating: galvanized Z180–Z275

Manufacturing Methods Comparison

Method	Process	Accuracy	Cost	Productivity
Manual fabrication	Hand forming	Medium	High	Low
Semi-automatic press	Template forming	Medium	Medium	Medium
CNC + welding	Cut + weld	High	High	Low–Medium
Collar Making Machine	Automated forming	High	Low	High

ROI Analysis (Cost per Collar)

• Manual production: $1.10 – $1.40 per unit
• Semi-automatic: $0.60 – $0.85 per unit
• Collar Making Machine: $0.25 – $0.40 per unit

Typical payback period for automated production lines is 6–14 months depending on utilization rate and production volume.

SMACNA Leakage Class Context

In U.S. HVAC design practice, duct systems are commonly evaluated under SMACNA leakage standards. Collars directly influence leakage performance at branch connections.

• Leakage Class 6–12: standard commercial HVAC
• Leakage Class 3–6: high-efficiency systems (data centers)

Proper collar forming reduces leakage by improving sealing surfaces and structural stability at branch points.

Collar Making Machine

The Collar Making Machine is designed for continuous production of round duct collars using automated forming processes.

Forming sequence:

• precision notching
• bead forming
• edge crimping
• roll forming

System-Level Importance

• pressure loss control at branch points
• airflow stability in multi-zone systems
• installation speed improvement
• reduction of leakage in duct networks

In large HVAC projects, thousands of collars may be used, making production efficiency critical.

Duct collars are essential interface components in spiral duct systems. Their precision manufacturing using automated forming equipment improves airflow efficiency, reduces leakage, and lowers production cost in industrial HVAC fabrication.

More detailed information about the equipment can be found in the Round Duct Making Machine section of the website.
