low cost Spiral tube former

Product Code: TF1500S

Pre-Order

Price on request

Ex Tax: $ 0

Ask a Question

Product description
VIDEO

Spiral tube former TF1500 designed to produce metal spiral ducts

Diameter range 3.15 to 60 inches (80-1500mm)

Thickess of different raw materials:

- galvanized steel: 0.4 - 1,2 mm (28 ga - 18 ga)

- stanleys steel 0.4 - 0.8mm (28 ga - 22 ga)

- aluminum: 0.4 - 1.2mm (.016 - .047 inch)

Feeding Speed up to 100 ft/min (30 m/min)

Standrd delivery set:

Decoiler

Tubeformer with four stations rollforming device

Lubrication system

Set of flexible belts to produce ducts in range of 3.15 to 60 inches (80-1500mm)

Saw cutting device

Support run out table

Set of rollers to operate with 0.4 - 1,2 mm (28 ga - 18 ga) raw material

Rib rollers.

Spiral ducts used in HVAC (simply round ducts, ovalising, squad spiral ducts), in dust transportation systems, PU insulated pipes as protective coverage.

Working progress:

Decoiler to feed the strip from the coil (coil weight up to 1500 pounds)

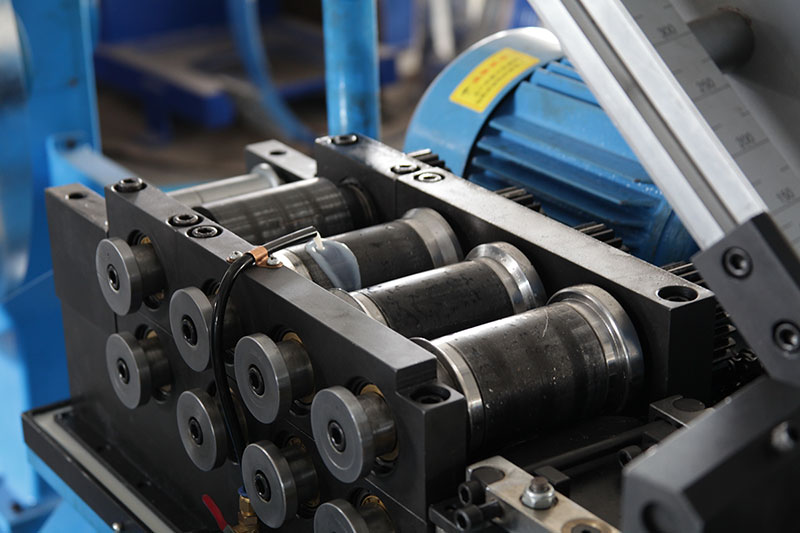

Roll-forming part with lubrication system (lubrication pump in set) - to roll-form the lock and form strengthen stiffeners:

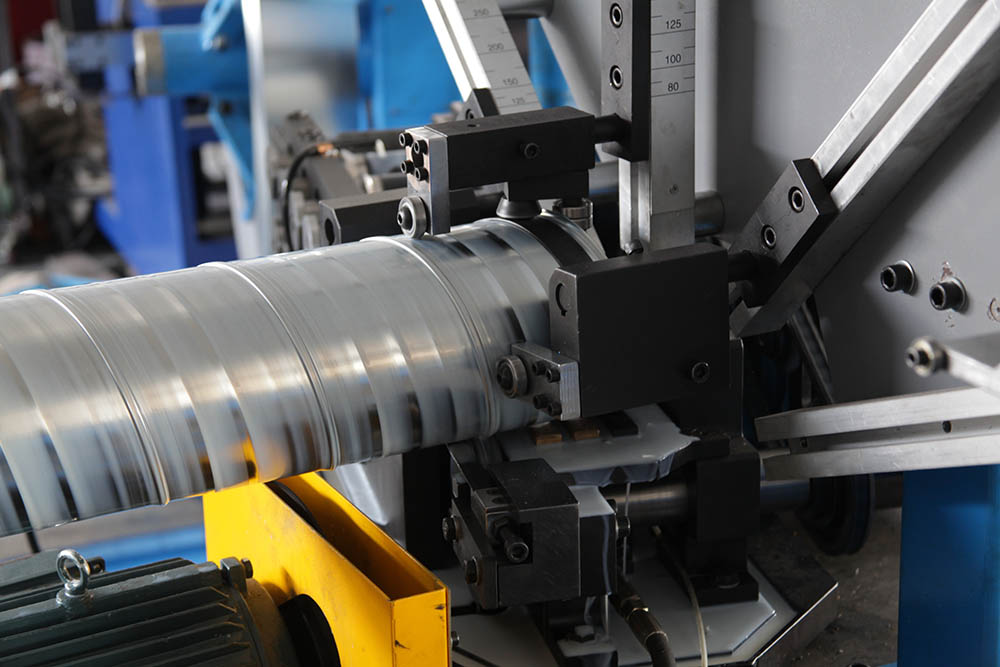

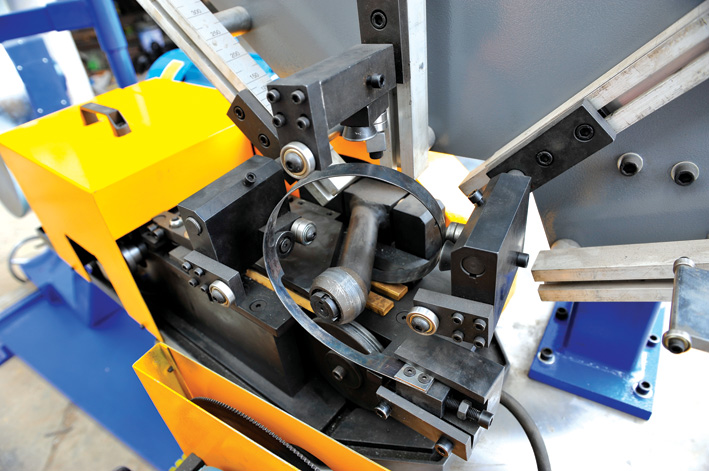

The next is duct forming Flexible mold, all the molds to produce any size of duct with diameter in range of 3.15 to 60 inches are in delivery set.

This type of machine usually designed with outside lock position, but up to request machine can be made with inside lock position.

Up to customer request this type of tube-former can be made with option to use fixed hard mold.

Cutting system - up to customer request machine can be made with cutting Saw with pneumatic feedback drive:

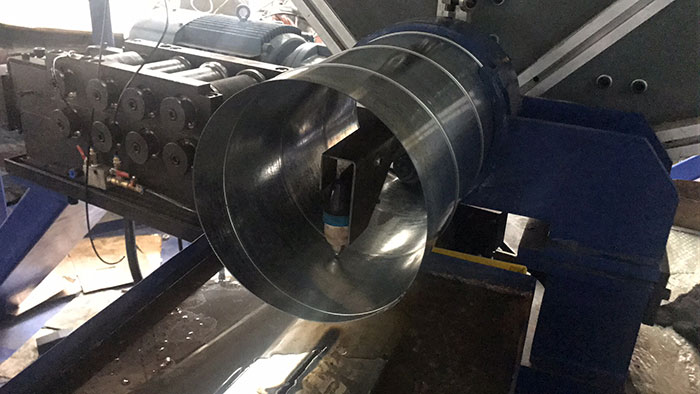

or as extra option - Plasma cutting

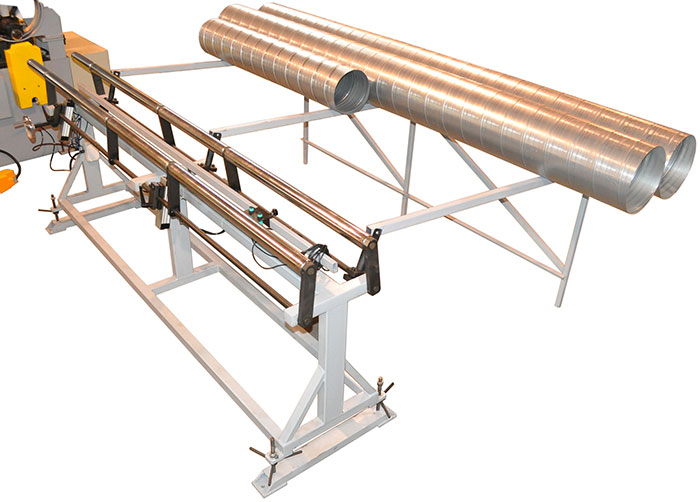

Support table to hold the duct during the working process and after the cutting. As extra option, support table can be equipped with auto-dropping pneumatic system. One support table made to hold one duct with length up to 10 feet.

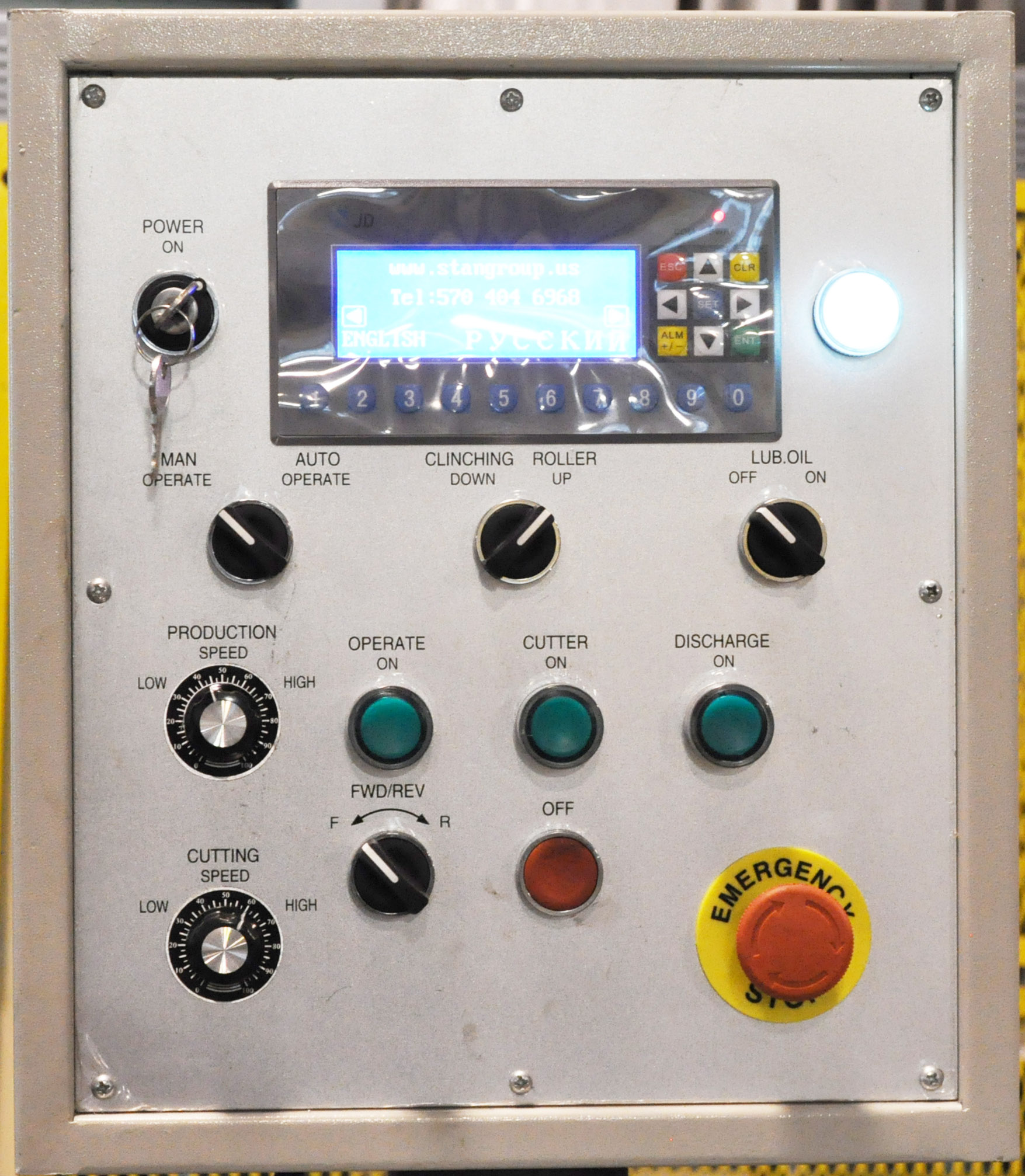

Automatic control system.

Technical parameters
Model	TF1500S
Diameter range	3.15 to 60 inches (80 - 1500mm) for 18 ga minimal diameter 10 inches!
Duct length	0.3 - 26 feet (100 - 8000mm) (with additional support table)
Galvanized steel	0.4 - 1,2 mm (28 ga - 18 ga)
Stainless steel	0.4 - 0.8 mm (28 ga - 22 ga)
Strip width	5.39 - 5.51 inch (137 - 140mm)
Raw materials	galvanized steel, Stainless steel, aluminum, PPGI.
Feeding Speed	up to 100 ft/min (30 m/min)
Control type	Automatic / semiautomatic CNC
Power	5.5 kWt main motor + 3 kWt saw cutting (+ air pump 0.5~0.7 kPa not in set)
Packing size	138" x 79" x 83" inches (3500 х 2000 х 2100)
